Vendor: OPAS

Reversing cam switch / Reversing rotary switch L-0-P, 3 poles

Barcode: IPT304TR63

Regular price: €36,00
Regular price
Sale price: €36,00
Unit price: per

excl. VAT: €30

Low stock: 2 left

Number of poles: 3 poles 3 poles

Mark: 63A 25A 63A 10A 16A 32A

Product variants

Description
Payment methods
Warranty

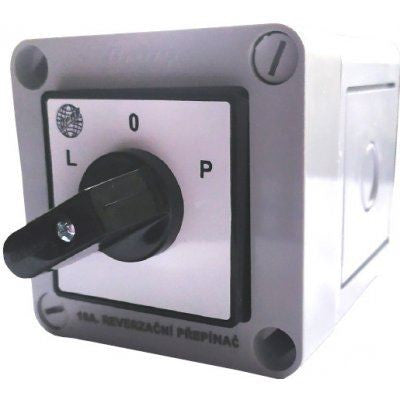

Reverse cam switch L-0-P, 3-pole, 25 A and 63 A, in plastic box

Model: YKT304 / IPT304
Manufacturer.

The reverse cam rotary switch is designed to reverse the direction of rotation of three-phase electric motors. The device allows safe switching between right (P) and left (L) motor running direction with the possibility of quick shutdown in the "0" position.

The switch is housed in a durable plastic enclosure to ensure safe operation in harsh environments. It is characterized by high electrical and mechanical resistance, which guarantees a long service life even under intensive use.

Technical features

Type of design: cam reversing switch
Number of poles: 3

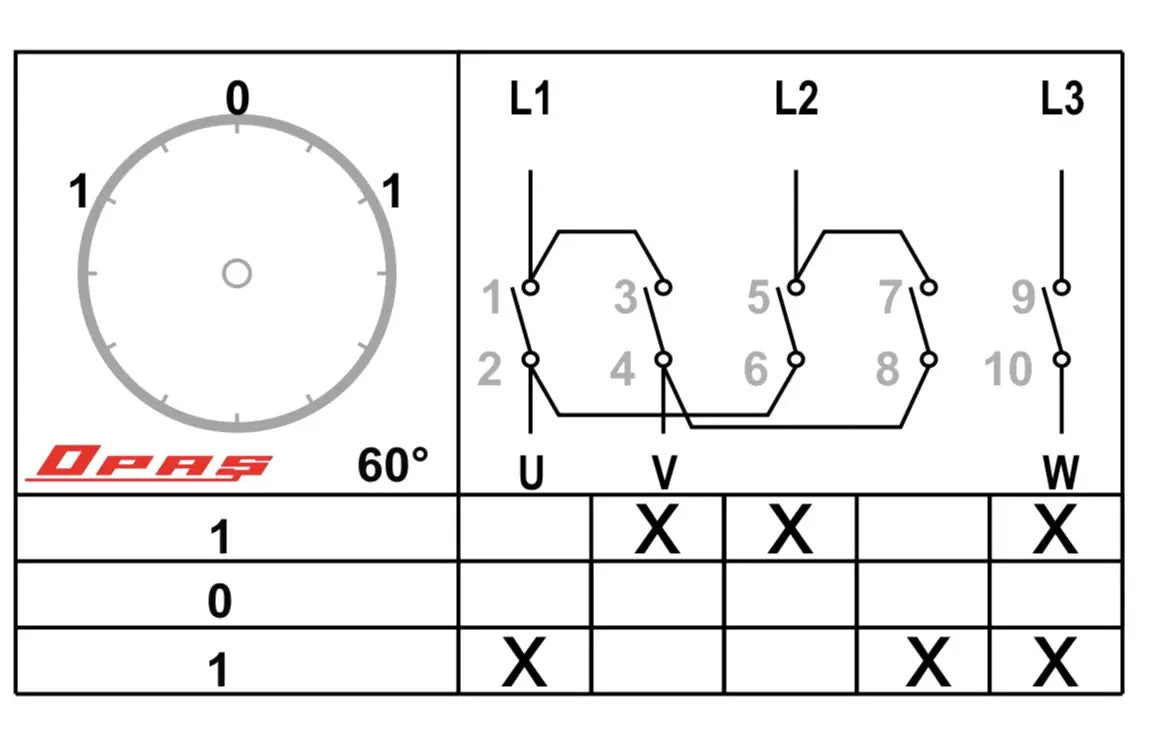

Switching scheme: L - 0 - P
Storage: In plastic box
Purpose: Reversing the direction of rotation of three-phase electric motors
High mechanical and electrical strength

Electrical parameters according to design

Rated current	Ui (V)	Ith (A)	AC-23 at 400 V (kW)
10 A	450	16	3
16 A	500	20	5
25 A	660	25	8
32 A / 40 A	660	32/40	17
63 A	660	63	21
100 A	660	100	3
