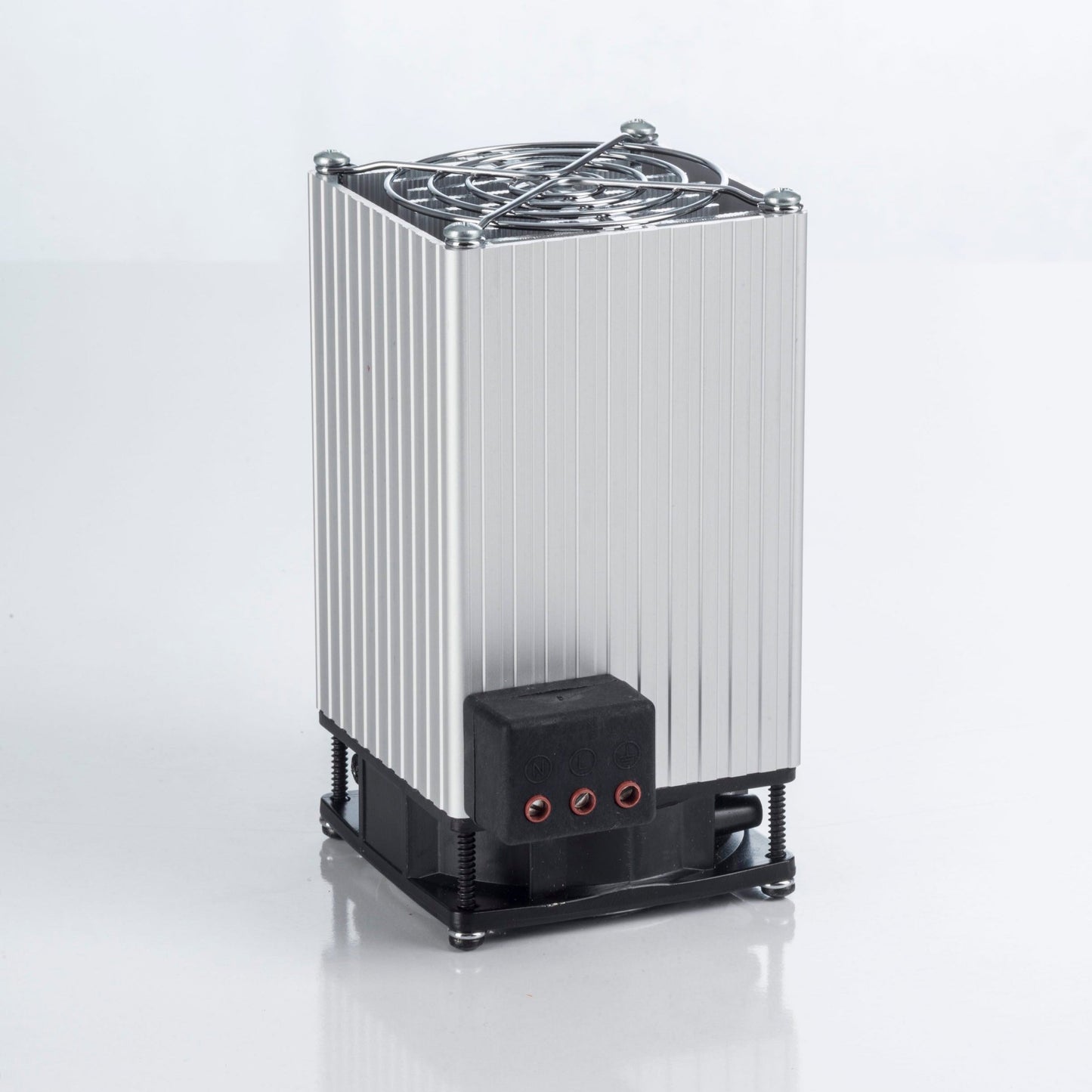

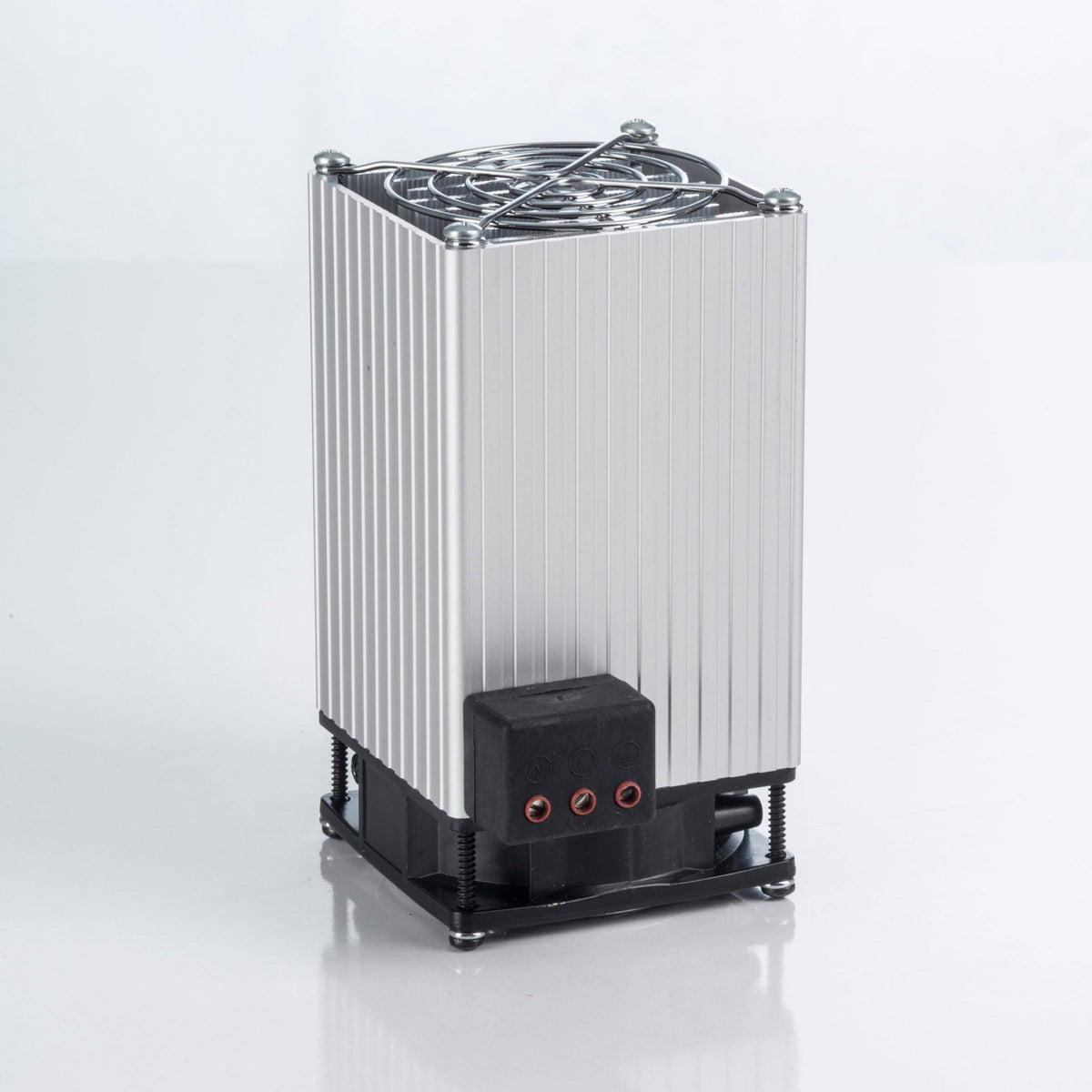

Resistive switchboard heater with fan 250W, PFHT250, PLASTIM
- Regular price
- €106,00
- Regular price
-
- Sale price
- €106,00
- Unit price
- per
Couldn't load pickup availability
Frequently bought together
– Bimetal thermostat 0-60C NC, PTHT, Plastim
- Regular price
- €9,24
- Regular price
-
- Sale price
- €9,24
- Unit price
- per
– Bimetal thermostat NC switching, switchable, range 0-60°C - temperature switches
- Regular price
- €9,76
- Regular price
-
- Sale price
- €9,76
- Unit price
- per
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Electric ( Resistance heater, after heater) switchboard heater with fan, with anodized aluminum heat sink and overcurrent protection, for DIN rail installation with power 250 watts, 220/230 volts AC, PFHT250, Plastim - made in Turkey.
-
Heating power: 250W
-
Operating voltage: 220/230V AC, 50/60Hz
-
Maximum current: 1.2 A
-
Resistance heater
-
Axial Fan: 80x80x25mm 35m3/h
-
Overcurrent protection: electronic thermal overload relay
-
Electrical connection: 3-pole N-L-E terminal
-
IEC protection class: Class II
-
Degree of protection: IP20
-
Operating temperature: -25 / +70 °C
-
Storage temperature: -25 / +70 °C
-
Heat sink: Aluminum profile, anodized
-
Mounting: 35mm DIN rail
-
Mounting position: Best efficiency in vertical position
-
External dimensions: 152x80x110mm
-
Weight: 0.98 kg
To ensure automatic temperature maintenance with this heater you will need either a simple bimetal thermostat or a more complex temperature controller. Both devices can be purchased from our website.
