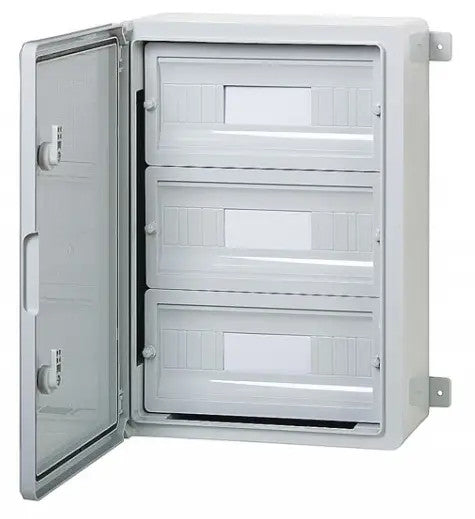

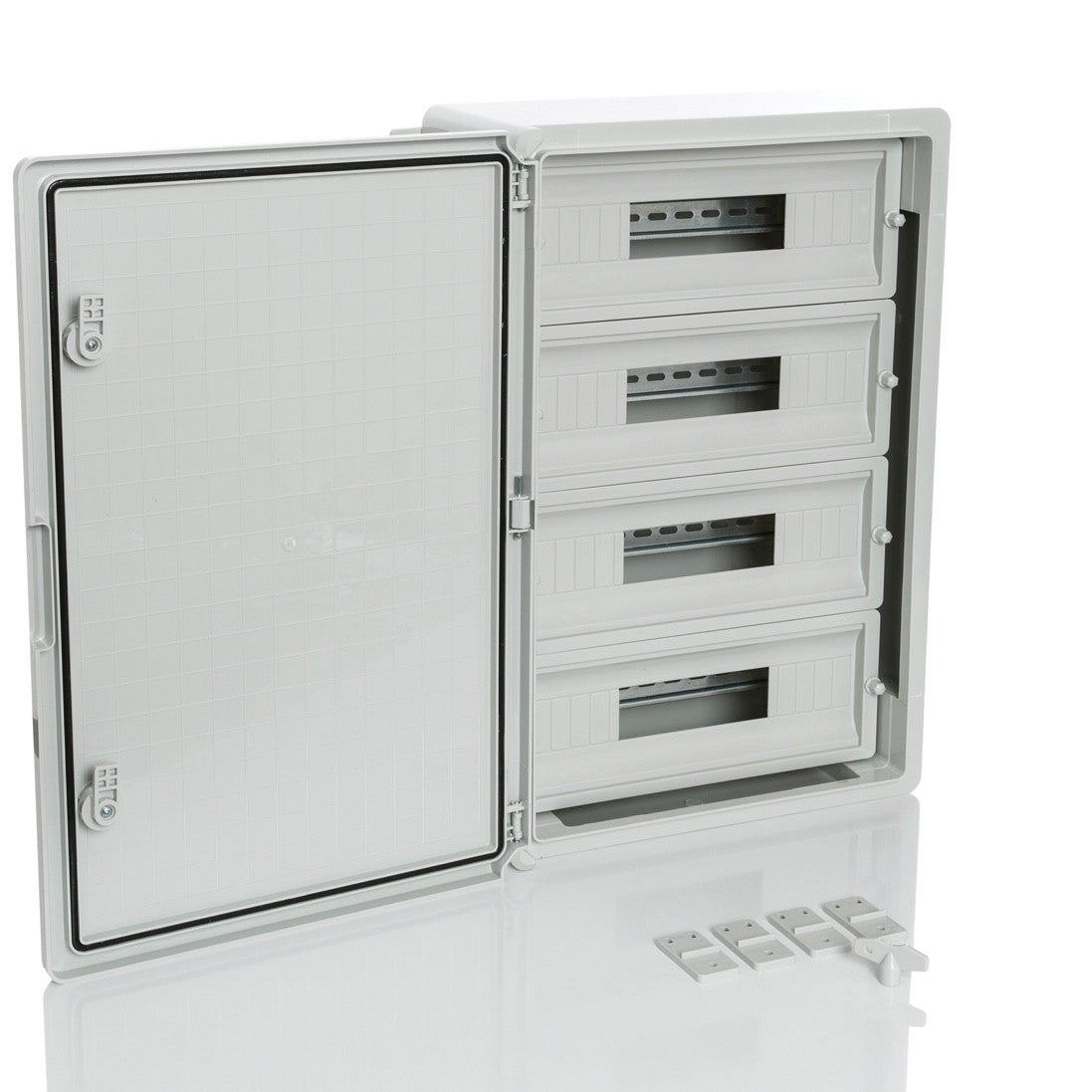

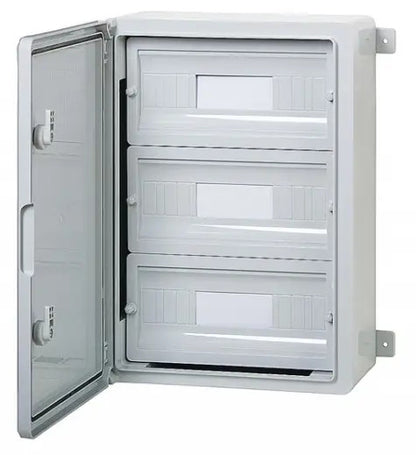

Plastic switchboard for modular devices, grey door, IP65, Plastim
- Regular price
- €58,40
- Regular price
-
- Sale price
- €58,40
- Unit price
- per
Couldn't load pickup availability
Frequently bought together
– Lock for P-BOX cabinets
- Regular price
- €11,16
- Regular price
-
- Sale price
- €11,16
- Unit price
- per
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty
Plastic switchboard for modular devices, grey door, frame with DIN rails, IP65, Plastim
Code |
Width (mm) |
Height (mm) |
Depth (mm) |
Modules |
Weight (kg) |
PP3102 |
250 |
350 |
150 |
18 (9×2) |
2.5 |
PP3104 |
300 |
400 |
170 |
24 (12×2) |
3.4 |
PP3106 |
350 |
500 |
190 |
45 (15×3) |
4.5 |
PP3108 |
400 |
600 |
200 |
60 (15×4) |
6.0 |
The new plastic watertight boxes manufactured by the Turkish company Plastim open a new page in the use of plastic protective boxes for automation and power distribution tasks.
New housing design with corner reinforcements and increased thickness of the door and the whole product
Extended temperature range in which the shield retains all its improved properties -35/+60C
- fully corrosion resistant light weight solid galvanized metal mounting panel
- can be equipped with transparent doors and DIN rails reinforced hinges with metal pin;
MAIN TECHNICAL FEATURES
- Material: HB ABS halogen-free
- Colour: RAL7035 light grey
- Protection: IP65, IK08
- Rated voltage: up to 690 V
- Maximum current: up to 800 A
- Operating temperature: -35°C + 65°C
Online card payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email
COD - you pay the payment according to the payment order to the driver of the transport company
By bank transfer- you will receive an advance invoice to your e-mail no later than the next working day, on which you will find the account number that you will enter during payment.
On invoice - this payment option is available to partners who have signed a framework agreement with our company.
If you would like to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.
The electrical equipment we supply meets high quality standards, has a 24-month warranty and meets all EU requirements.
We also have free shipping (for orders over 100 EUR), a flexible system of discounts and promotions. The technical knowledge and experience of our employees enable us to provide high-quality advice and, if necessary, offer alternatives to electrical products.
The electrical equipment we supply meets high quality standards, has a 24-month warranty, and complies with all EU requirements.
In case of a complaint, the return of goods is not charged.
