Vendor: Plastim

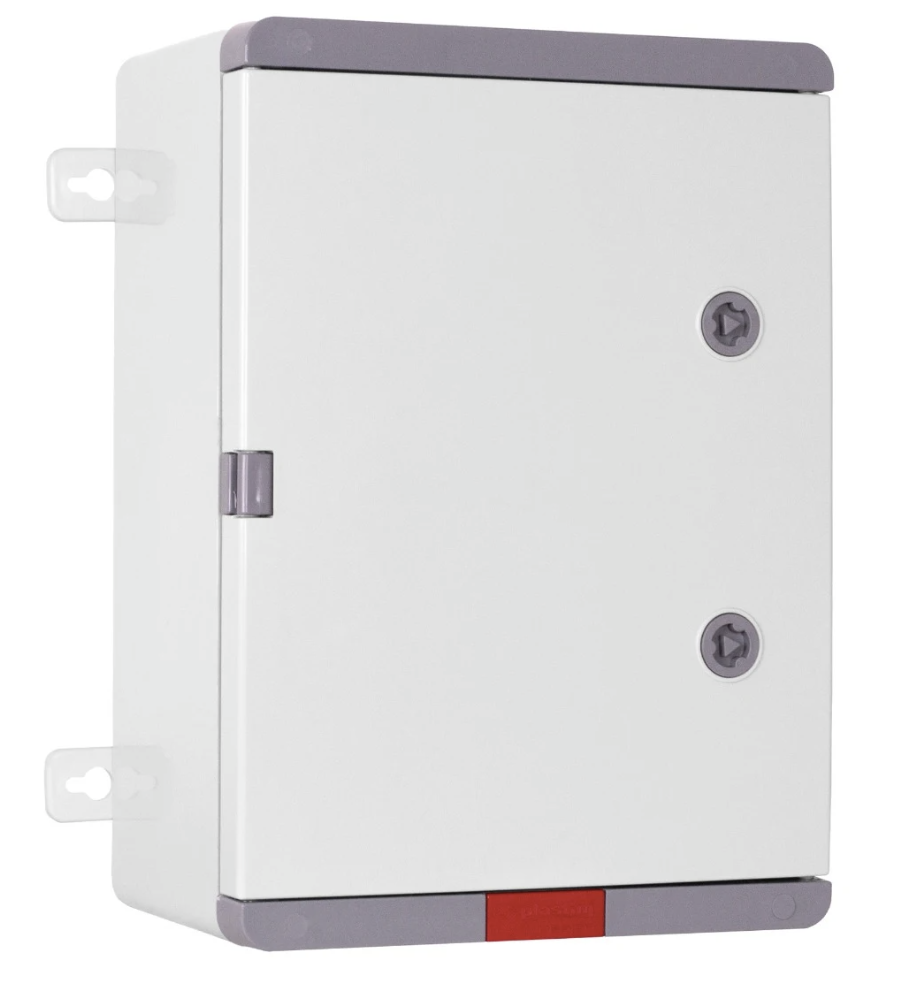

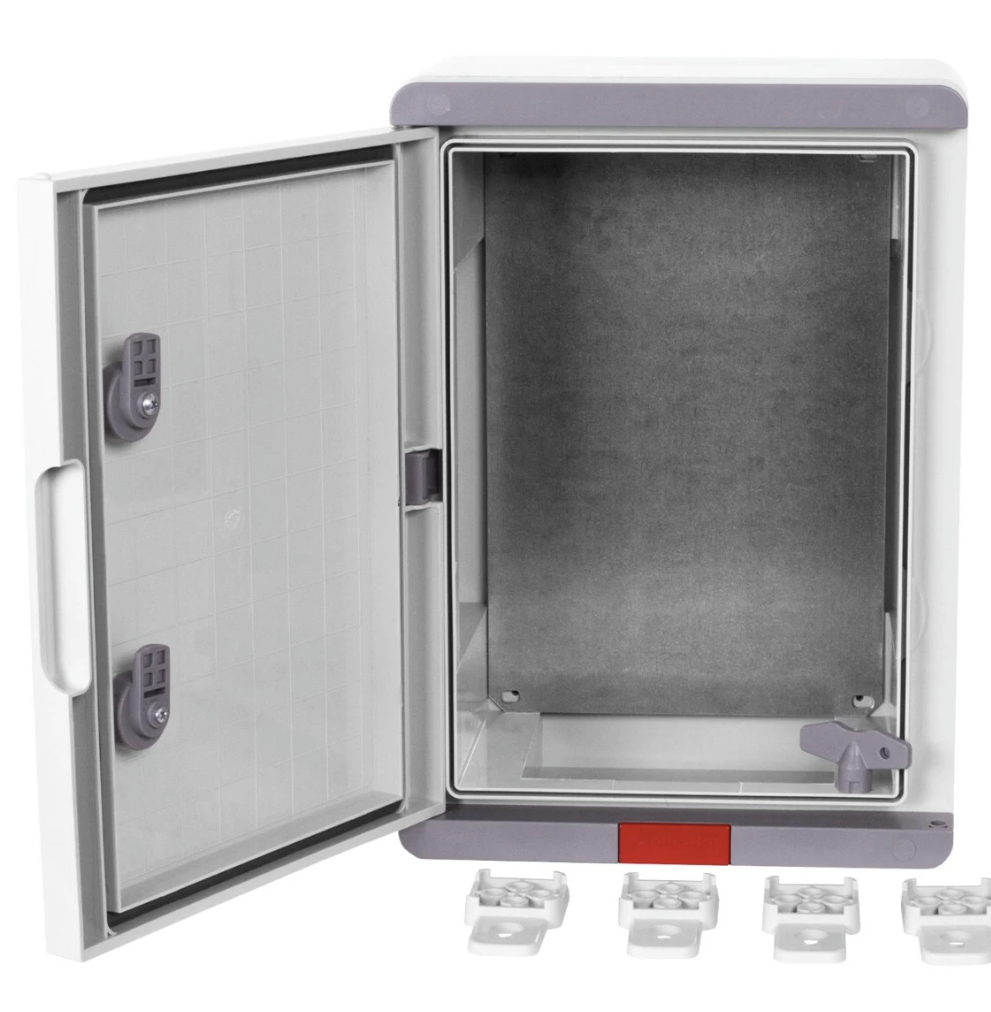

Plastic box IP 67, with grey door, 350x250x150 mm

Barcode: PD253515

Regular price: €24,80
Regular price
Sale price: €24,80
Unit price: per

excl. VAT: €20

58 in stock

Product variants

Description
Manuals
Payment methods
Warranty

Shockproof sealed plastic housing with IP67 protection with mounting panel, Plastim (Turkey).

The plastic enclosure with IP67 protection has several important advantages, especially for use in harsh environments:

High protection against moisture and dust:

The IP67 rating means that the enclosure is completely protected from dust and can withstand short-term immersion in water up to 1 metre deep for 30 minutes, making it ideal for installation in damp or dusty locations - for example, outdoors, in industrial areas or near bodies of water.

Corrosion resistance:

Plastic is not subject to corrosion, unlike metal panels, which is particularly valuable in aggressive environments - near the sea, in chemical plants or in businesses with high humidity.

Ease and simplicity of installation:

The plastic housing is much lighter than its metal counterpart, which simplifies transportation and installation, especially in hard-to-reach locations.

Dielectric properties:

Plastic does not conduct electricity, which increases safety when working with electrical equipment and reduces the risk of short circuits.

UV resistance:

If a special ultraviolet plastic is used, the shielding retains its properties for a long time even when constantly exposed to sunlight.

Technical features

Resistance to: chemicals, alkalis, oils, salts, etc.

Rated voltage: up to 690 V

Maximum current: up to 800 A

Operating temperature: -35 °C + 65 °C

Material: HB ABS

Mounting plate: 1 mm galvanized steel

IP protection: IP67

IK protection: IK08

Colour: RAL7035 grey

Application examples

Damp and dusty environments

Electrical shielding in car washes, swimming pools, water parks, fountains.

Mounting boxes for controlling irrigation systems and pumping stations.

Installations in food processing plants where wet cleaning and disinfection is regularly carried out.

Industrial installations

Equipment protection in dusty workshops, concrete batching plants and metallurgical plants.

Installs shielding in areas with aggressive environments (e.g. chemical plants).

Marine and port infrastructure

Protection of electrical wiring on platforms, in ports and on ships.

Use in coastal areas with high humidity and exposure to salt air.

Construction sites

Temporary power distribution units for powering construction machinery in severe weather conditions.

Underground installations

Manual

https://files.principalelektrik.org/Plastim-Electrical-Distribution-DataSheet.pdf
