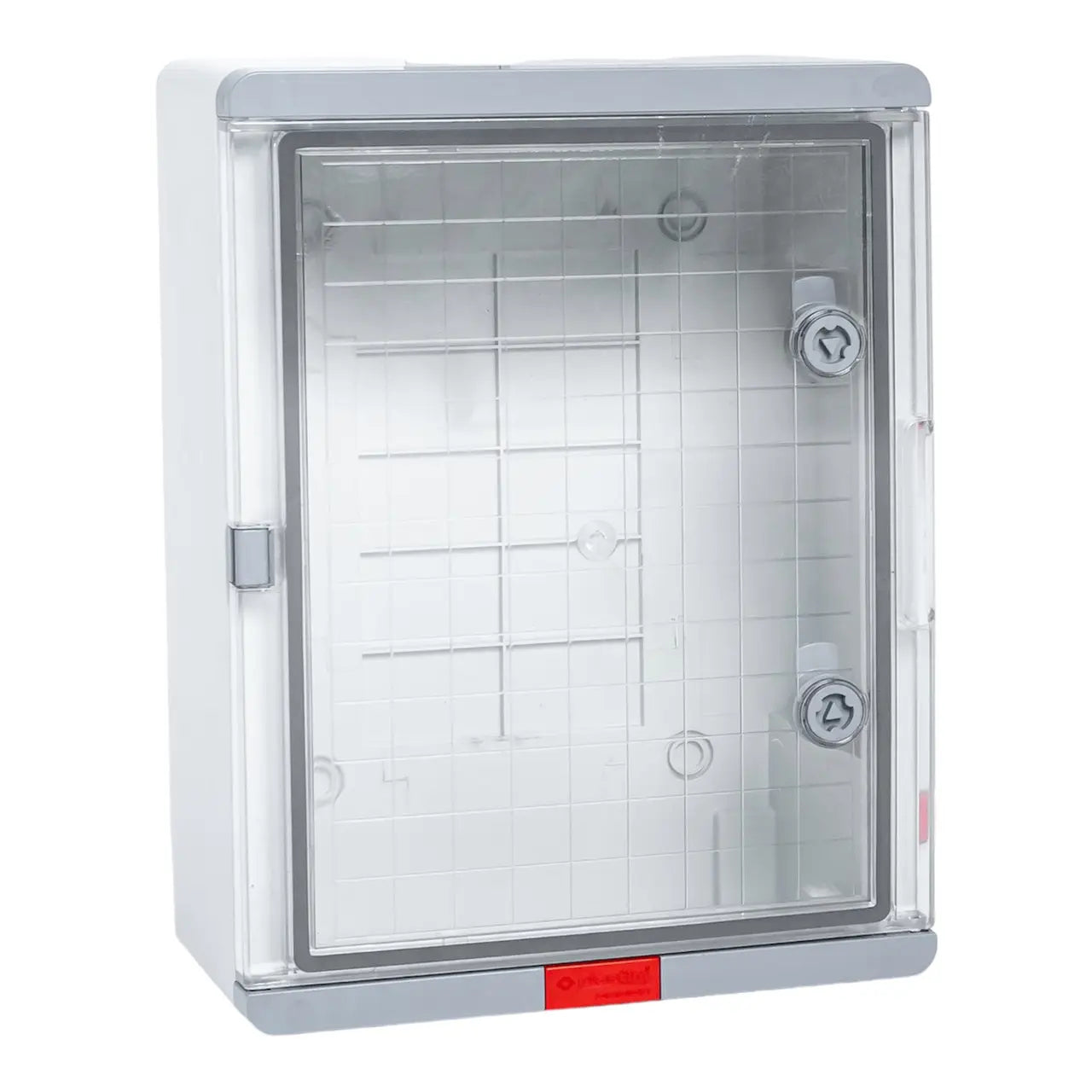

Plastic box IP 67, transparent door, 500x400x180 mm

Sealed plastic electrical panel IP67 with mounting panel Plastim (Turkey)

The IP67 shockproof panel from Turkish manufacturer Plastim is a reliable solution for protecting electrical connections in harsh conditions - high humidity, dust, chemical environments or outdoor installations. The durable plastic housing and high degree of tightness make it the ideal choice for industrial, construction, energy and marine infrastructure applications.

Benefits of the IP67 plastic sealed enclosure

Full protection against dust and moisture (IP67)
The device is completely dust-tight and can withstand short-term immersion in water (1 m / 30 min). Suitable for car washes, outdoor installations and wet or dusty environments.

Corrosion resistance
The plastic will not rust, which is particularly appreciated by installations in marine environments, chemical plants or areas with high humidity.

Easy to install and transport
The plastic housing is significantly lighter than metal alternatives, making it easier to install and handle in hard-to-reach places.

High dielectric properties
Plastic does not conduct electricity, which increases electrical safety and provides additional insulation.

UV resistance
The UV-stable ABS plastic housing retains strength and colour fastness in long-term outdoor use.

Technical parameters

• Material: ABS, UV stable, halogen free

• Protection: IP67

• Impact resistance (IK): IK08

• Rated current: 800 A

• Rated voltage: 690 V

• Dimensions (H × W × D): 500 × 400 × 180 mm

• Package dimensions: 504 × 404 × 184 mm

• Operating temperature: -35 to +65 °C

• RAL colour code: 7035

• Net weight: 4.3 kg
