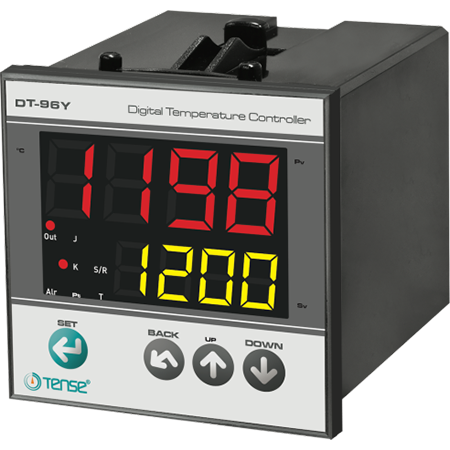

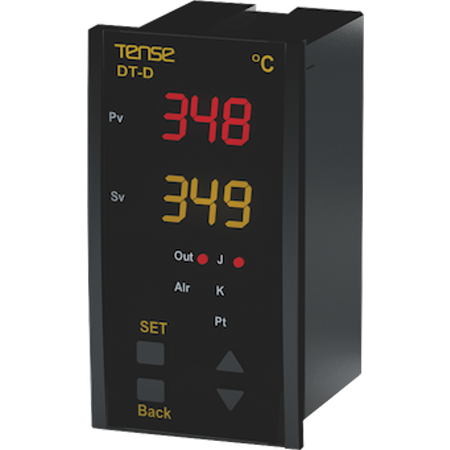

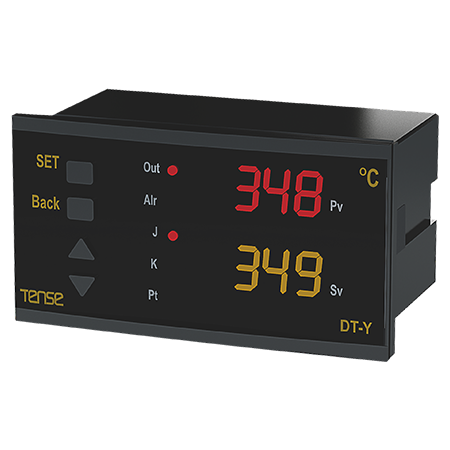

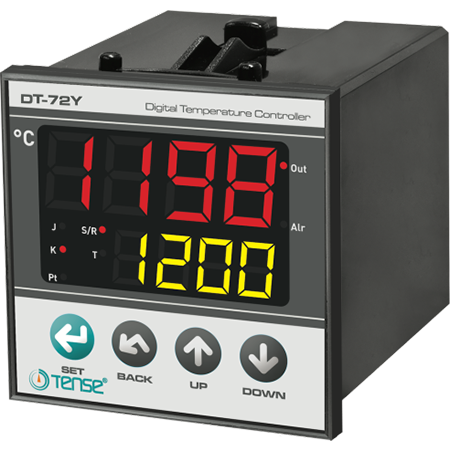

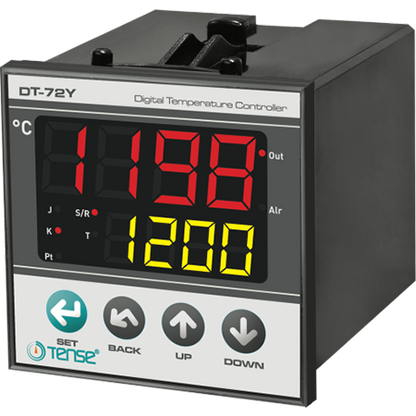

PID temperature controller TENSE - panel

Product description:
Panel PID temperature controller is designed for control and monitoring of thermal processes in heating, air conditioning and ventilation systems, building automation and industrial equipment. The controller supports both PID control and conventional ON/OFF control and offers self-optimization to prevent process value overshoot.

Functions and features:

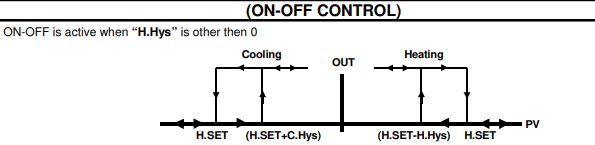

• P, PI, PD, PID, ON/OFFcontrol type.

• Automatic tuning of PID parameters

• Anti-windup

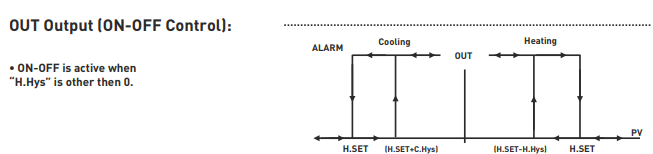

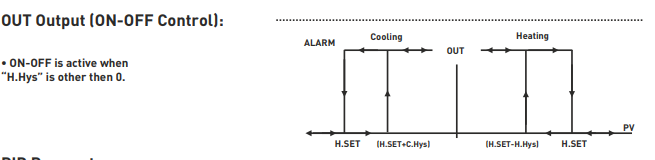

• ON-OFF delay in cooling mode

• Password protection

• EEPROM memory to save settings after power failure

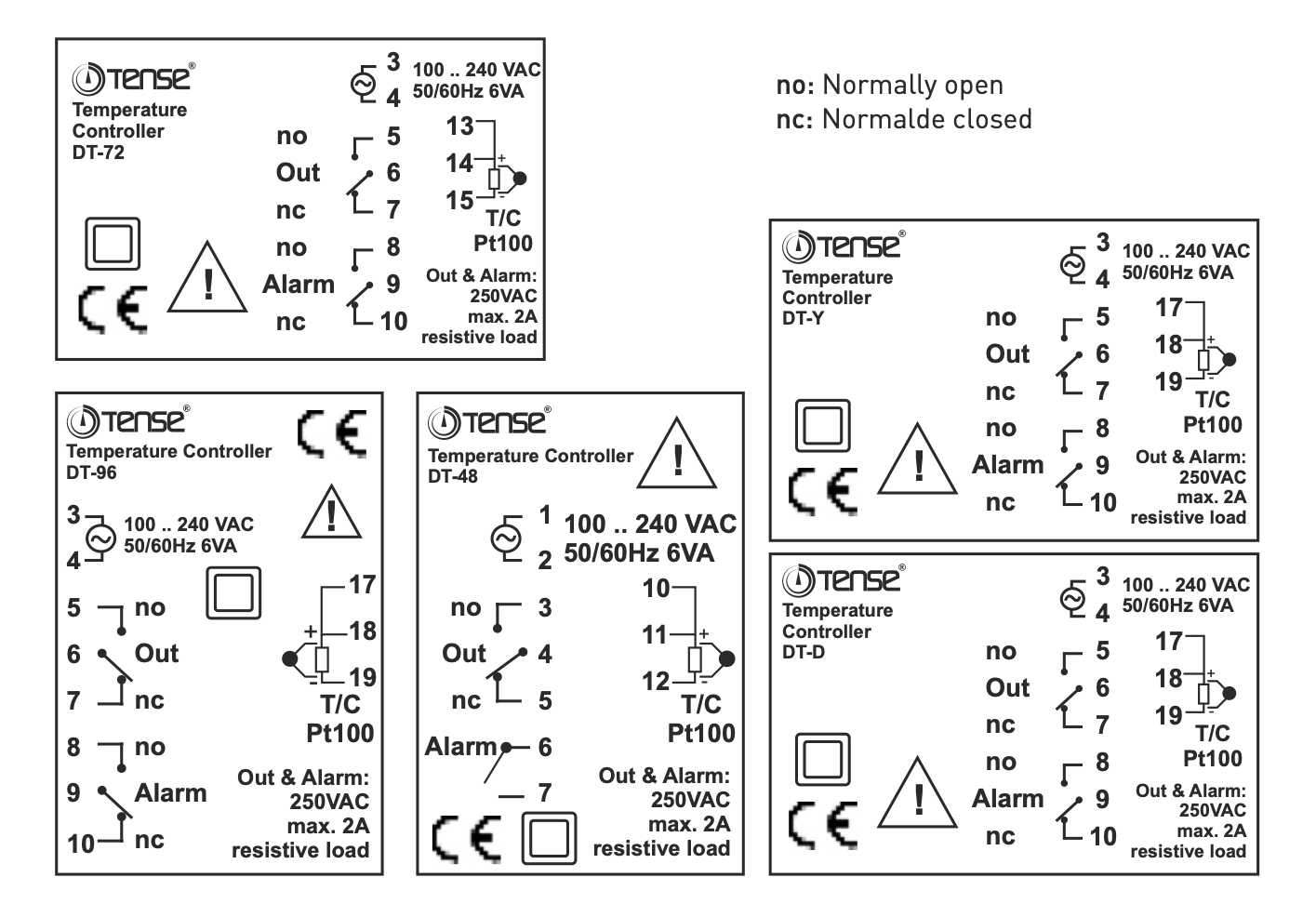

• Outputs:

  • OUT relay (NO+NC), 250 VAC, 2A

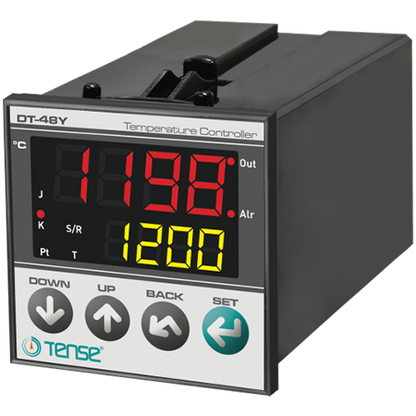

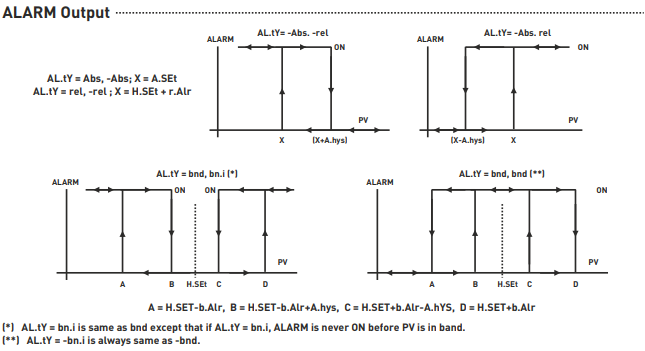

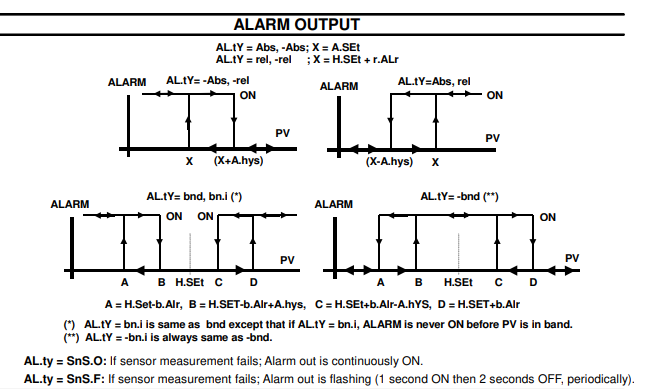

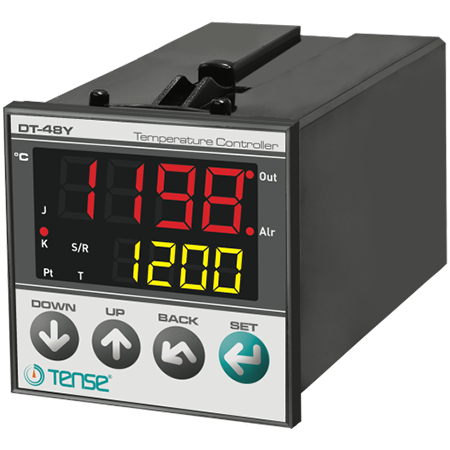

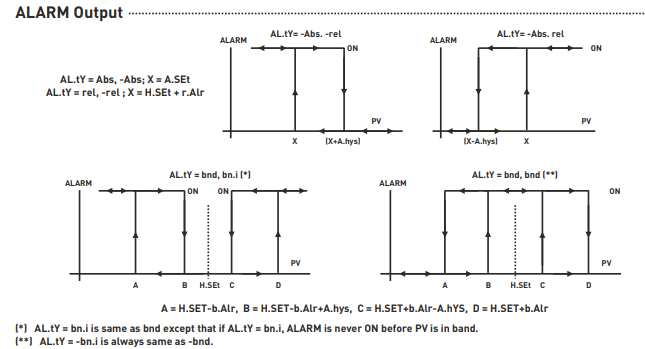

  • ALARM relay (NO+NC), 250 VAC, 2A - trips when the value is exceeded or not reached (on DT-48Y)

Measuring range and sensors:

• Measuring range: -100 °C ... +1750 °C

• Sensor type: T/C (J,K,T,S,R) or Pt100

• Resolution: 0.1 °C

• Range setting depends on the sensor connected

Display:

• High contrast display, readable even in low light conditions

• Simultaneous display of setpoint (SV) and actual (PV) values

Recommended accessories:

• Type J Fe-Const thermocouples (6/8 meter) with cable: 1 m, 1.5 m, 2 m, 2.5 m, 3 m, 4 m or 5 m

Usage:

• Heating and ventilation temperature control

• Industrial processes requiring precise PID control

• Alarm in case of over or under temperature

Benefits:

• Reliable Turkish TENSE product

• Easy panel mounting

• High quality and safe relay outputs
