Vendor: TENSE

Operating hours counter with LCD display 24AC/DC 230VAC

Barcode: HM-48
€31,20
€31,20
excl. VAT: €26
Low stock: 1 left
Reset: No
  • Description
  • Manuals
  • Payment methods
  • Warranty

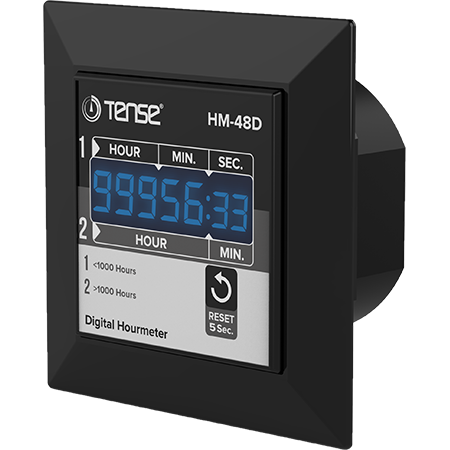

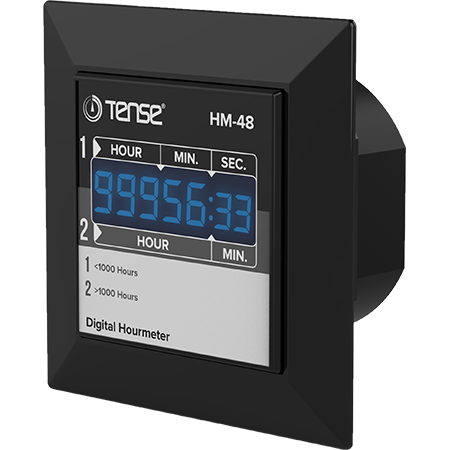

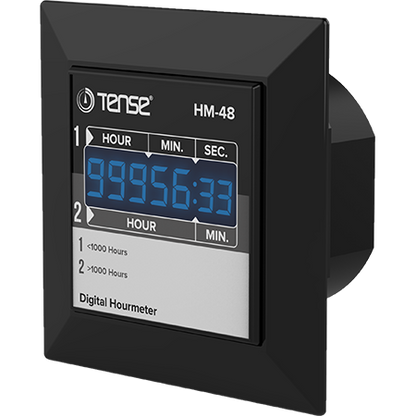

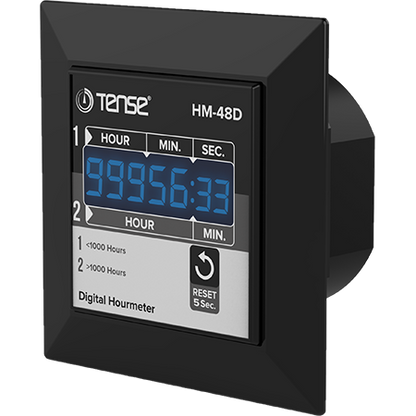

Digital operating hours counter - TENSE

Product description:
The digital operating hour counter is designed to measure the operating time of any load that starts when the supply voltage is connected. The counter is suitable for industrial machinery, equipment, switchgear and automation systems.

Technical specifications

  • Operating voltage: 160-240 V AC, 50/60 Hz

  • Alternative power supply: 24 V AC/DC

  • Power consumption: < 7 VA

  • Operating temperature: -20 °C ... +55 °C

  • Time range: 0 seconds to 99,999 hours 59 minutes

  • Display: 1×7 LED

  • Connection: terminal block

  • Mounting: in panel

  • Weight: < 60 g

  • Operating altitude: < 2000 m

  • Cable diameter: < 1.5 mm²

Operating principle

  1. Connect the counter according to the wiring diagram.

  2. When the power is connected, it will start counting the operating time automatically.

  3. Displaying the values:

    • Up to 1000 hours: hour format: minutes: seconds

      • Example: 12345:30 → 123 hours, 45 minutes, 30 seconds

    • Over 1000 hours: hour format: minutes

      • Example: 14530:45 → 14,530 hours, 45 minutes

Using

  • Cumulative measurement of operating time of machines and equipment

  • Monitoring the operation of motors, pumps, fans and automation lines

  • Maintenance planning and lifetime monitoring of equipment
