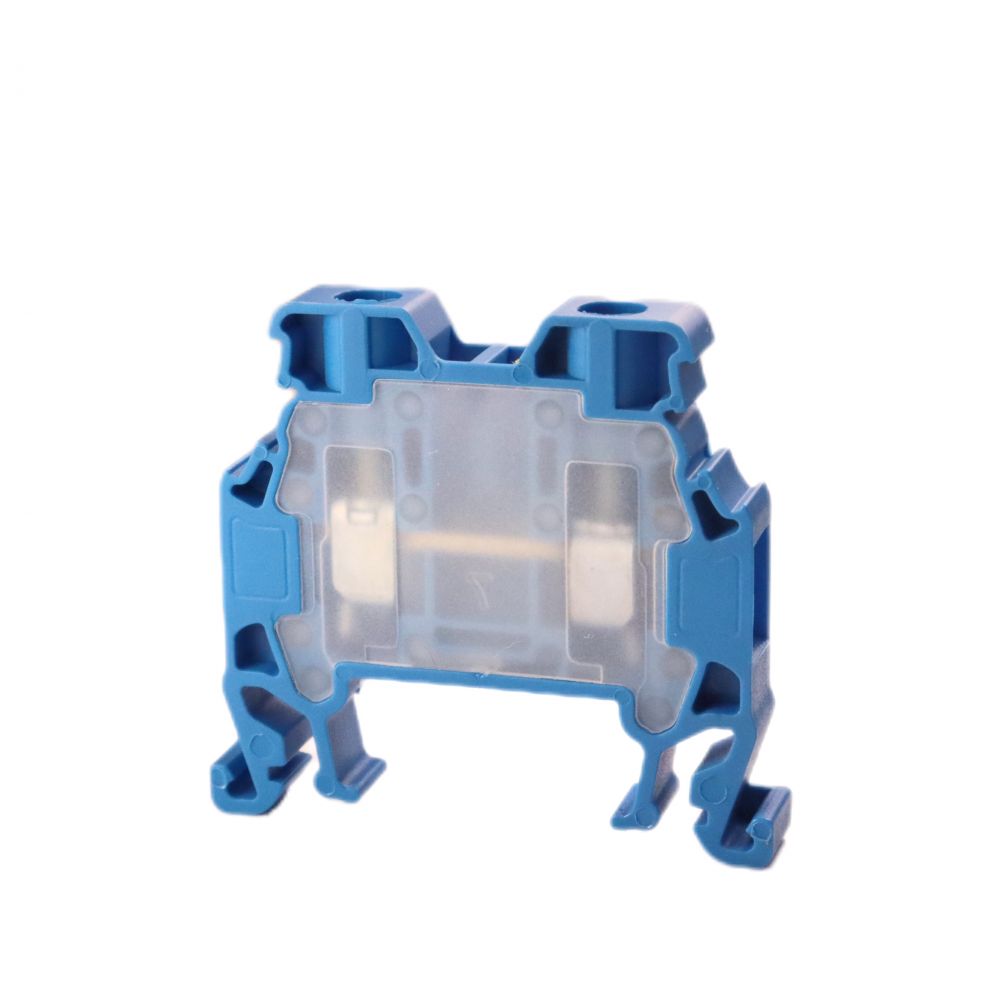

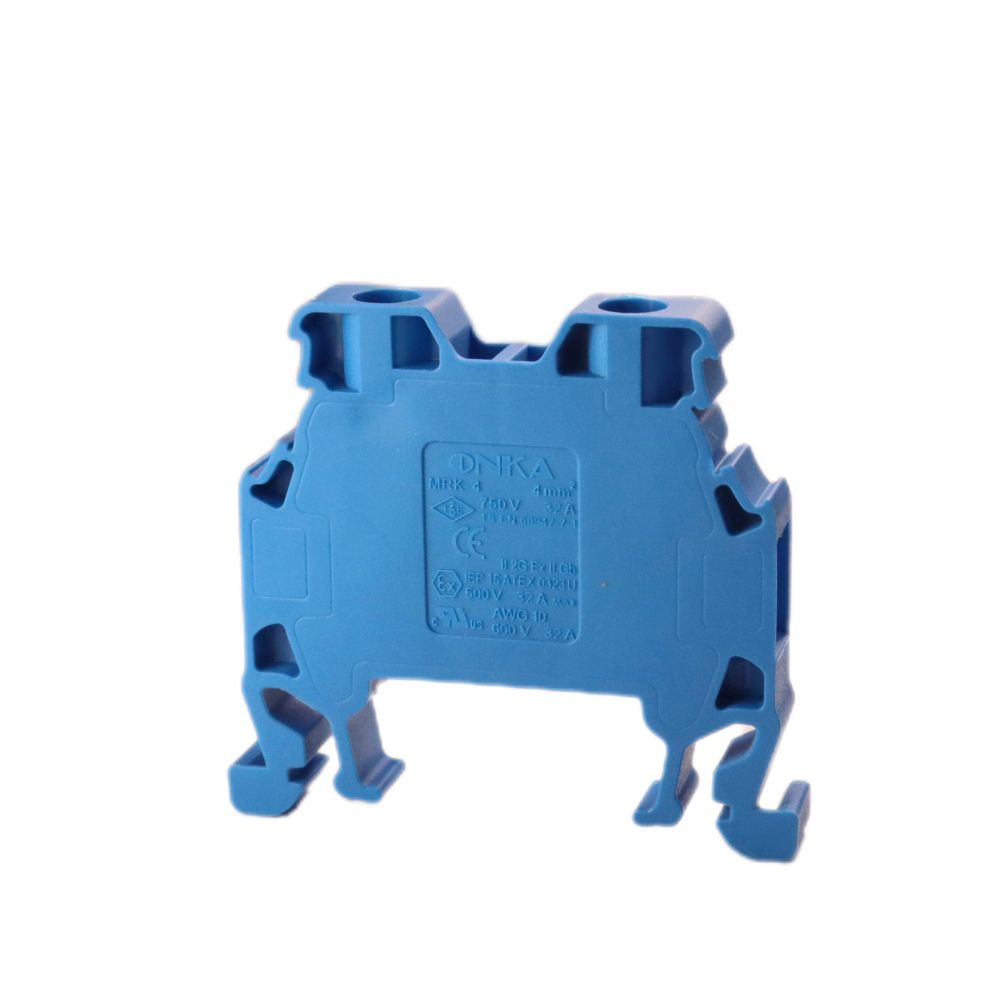

ONKA 4mm2 Screw rail connector terminal block DIN rail terminal 2-wire blue, 1010025
- Regular price
- €0,68
- Regular price
-
- Sale price
- €0,68
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty
Threaded busbar rail connector / DIN rail terminal 2-wire blue, ONKA, made in Turkey
The ONKA coupler / terminal block is a reliable solution for anyone looking for functional and durable elements in electrical installations.
Made of high quality materials, the connector guarantees long term use and resistance to mechanical damage.
Technical parameters
Cross section of the connected single wire up to: 4mm2
Colour: blue
Insulating material of the main housing: polyamide (PA6.6)
Contact/bridge material: CK45 Steel/Copper
Torque: 0.5 Nm
Connection position: lateral / side
Cable strip length: 10mm
Electrical connection type: screw clamp
Rated voltage: 750V
Rated current: 32A
Operating temperature range from: -40°C
Operating temperature range up to: 140°C
Mounting method: DIN 35 mm mounting rail
Norm: EN-60947-7-1
