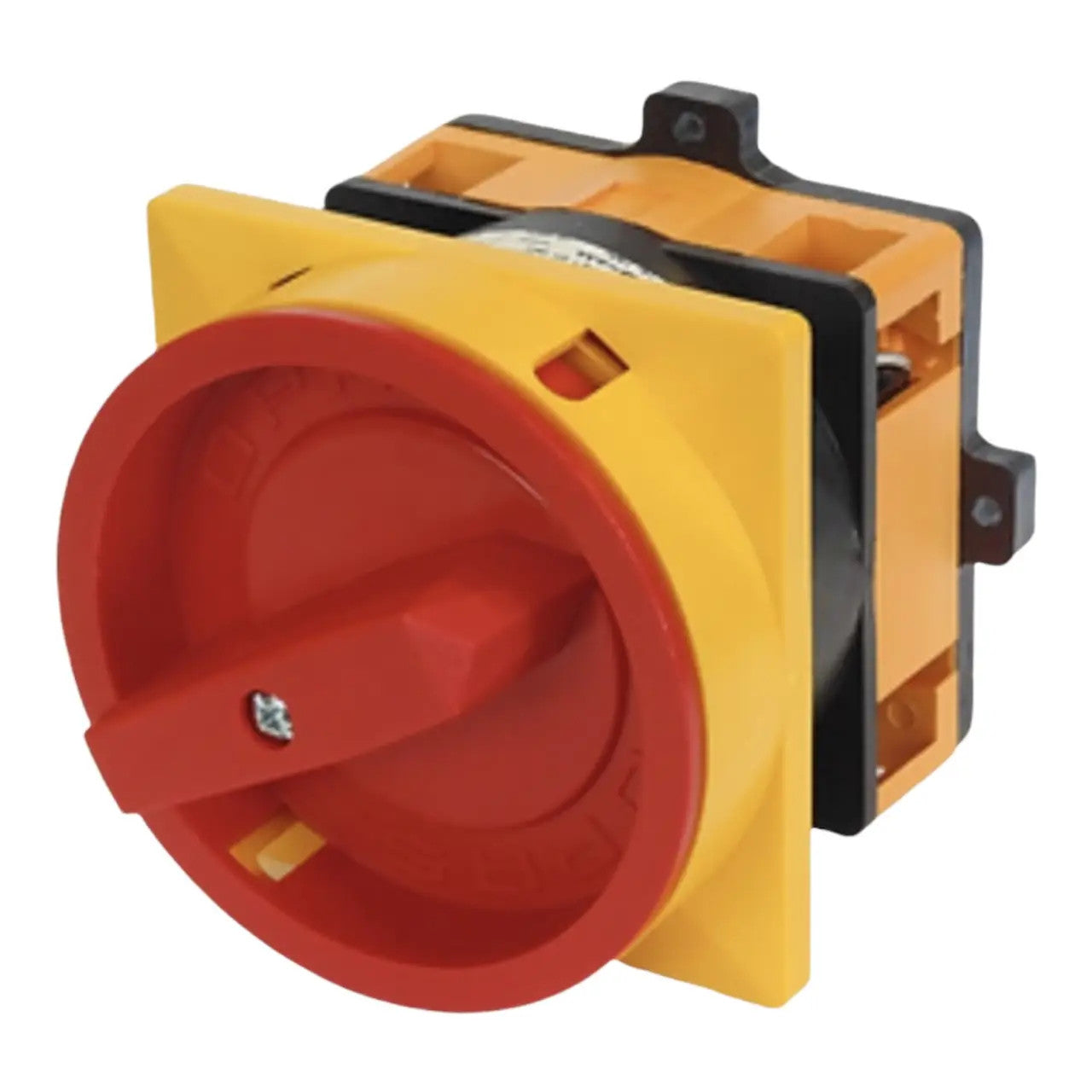

Cam packet switch ON-OFF (0-1) with lockout, YKL101 / YKL201 / YKL301 / YKL401 - manufacturer OPAS (Turkey)

Name: ON-OFF / 0-1 Rotary switch for emergency maintenance, lockable
Brand: OPAS
SKU: YKL201010
Price: 5.44 EUR
Availability: OutOfStock

Product description

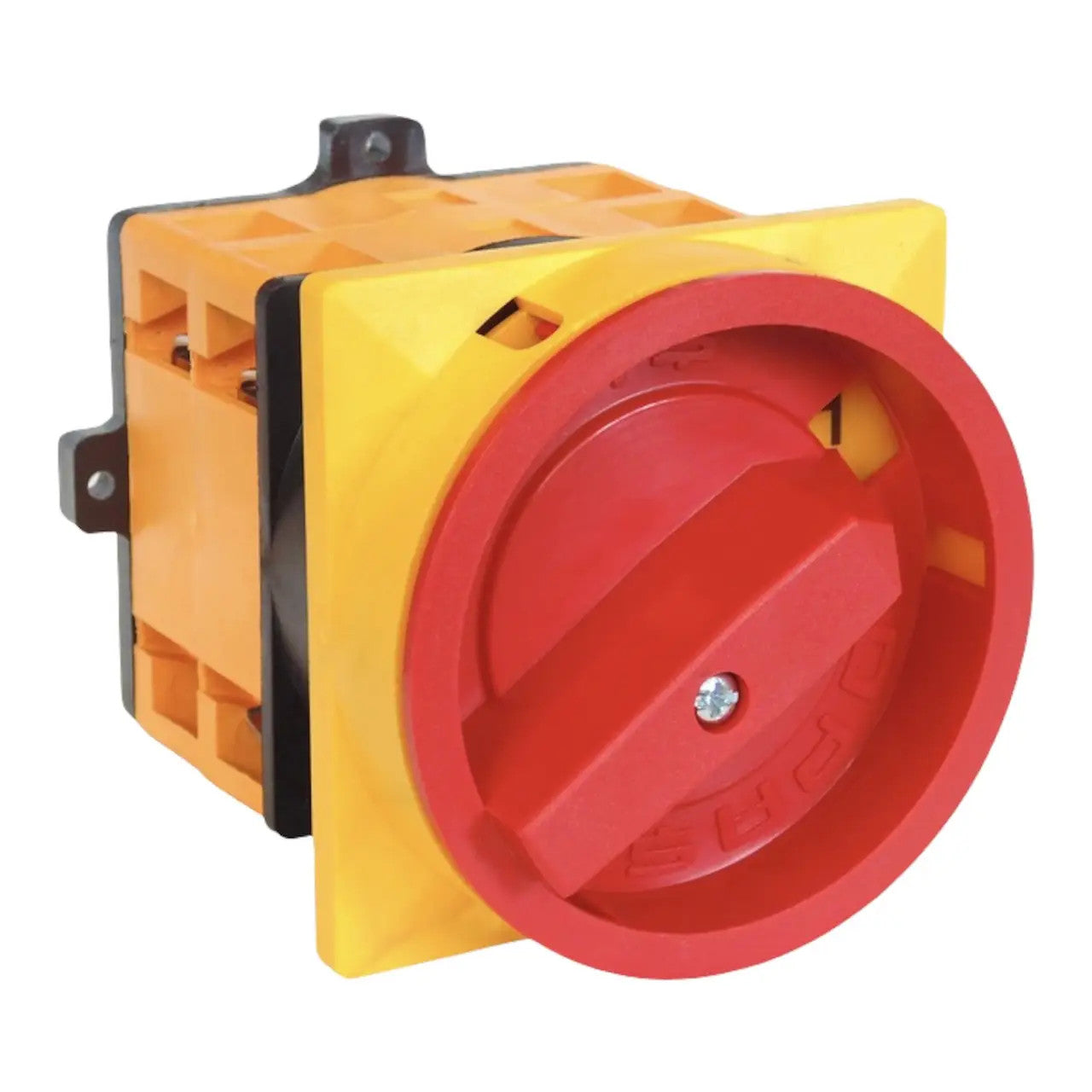

The cam packet switch is designed for manual switching of low voltage electrical circuits. It is used in main and control circuits, for switching on and off electric motors and other low power devices.
OPAS switches are characterized by compact size, high electrical and mechanical resistance and long service life.

This model is equipped with a locking mechanism that prevents accidental switching.

Main features

Design.
Device type: rotary switch

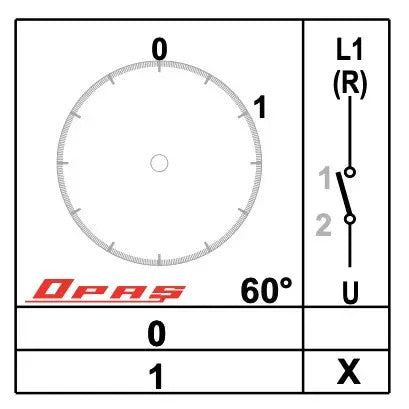

Switching scheme: 0 - 1 (ON-OFF)
Number of poles: 1
Mounting Type: Built-in
Number of phases: single phase
Arresting (blocking): Yes
Degree of protection: IP20
Operating temperature: -30 to +55 °C

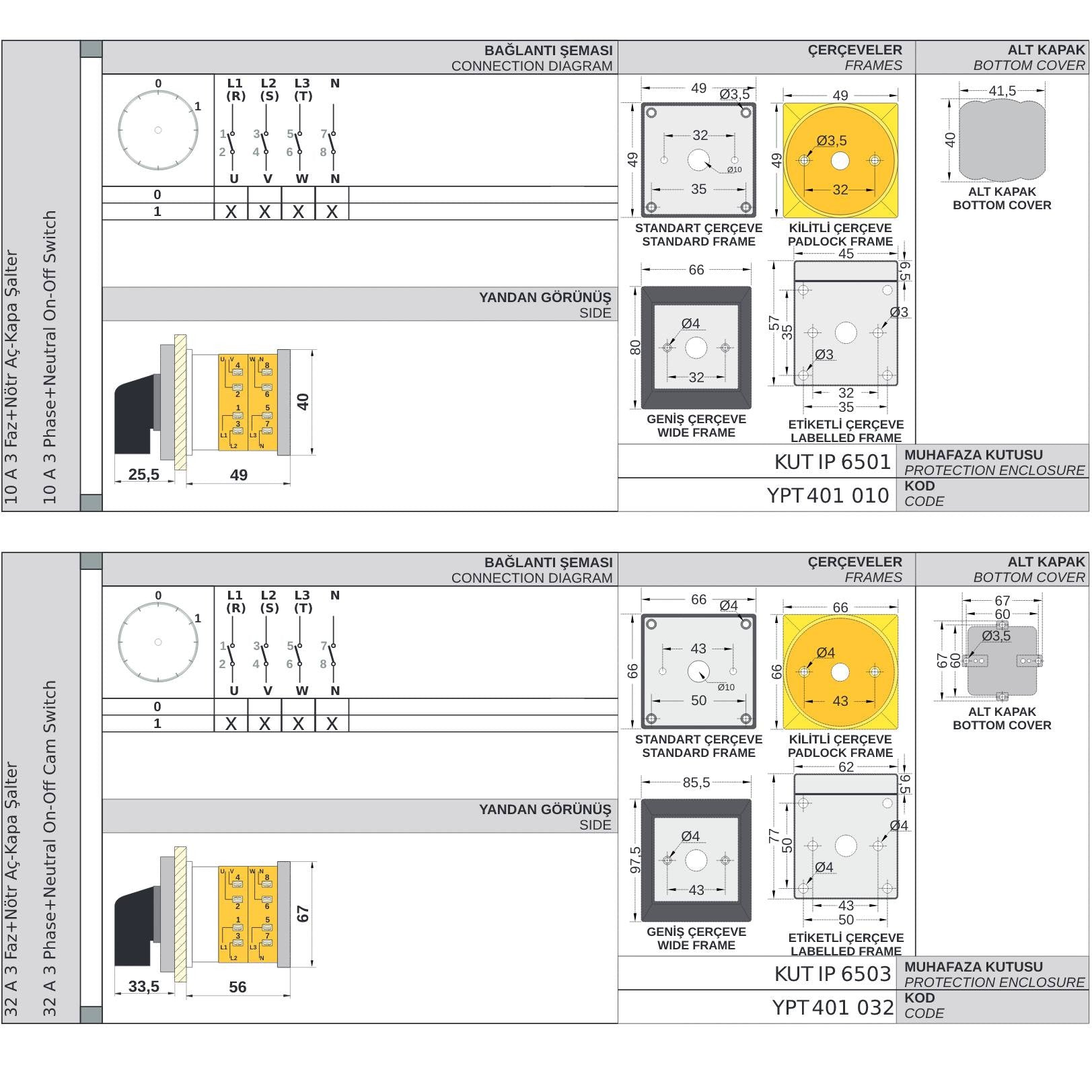

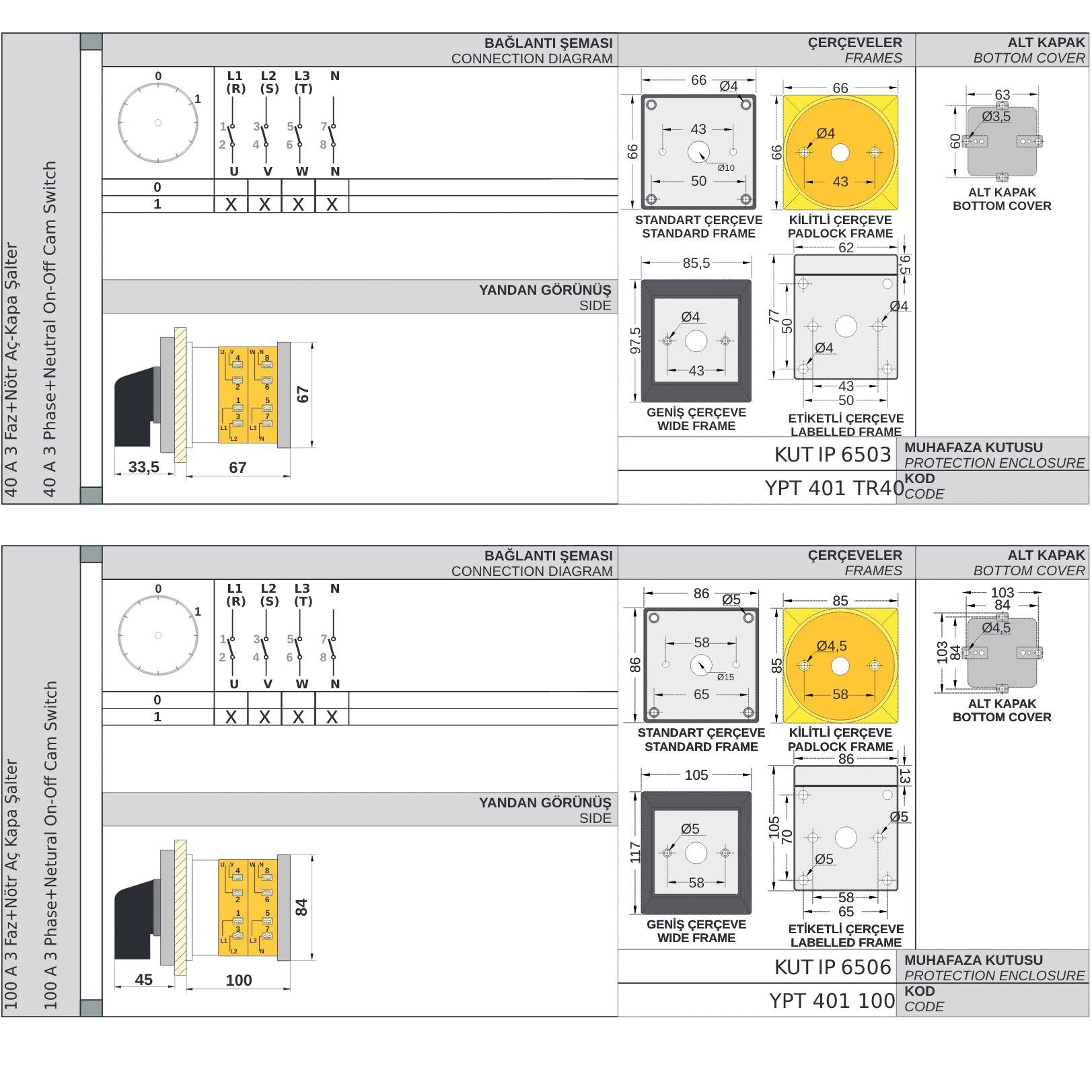

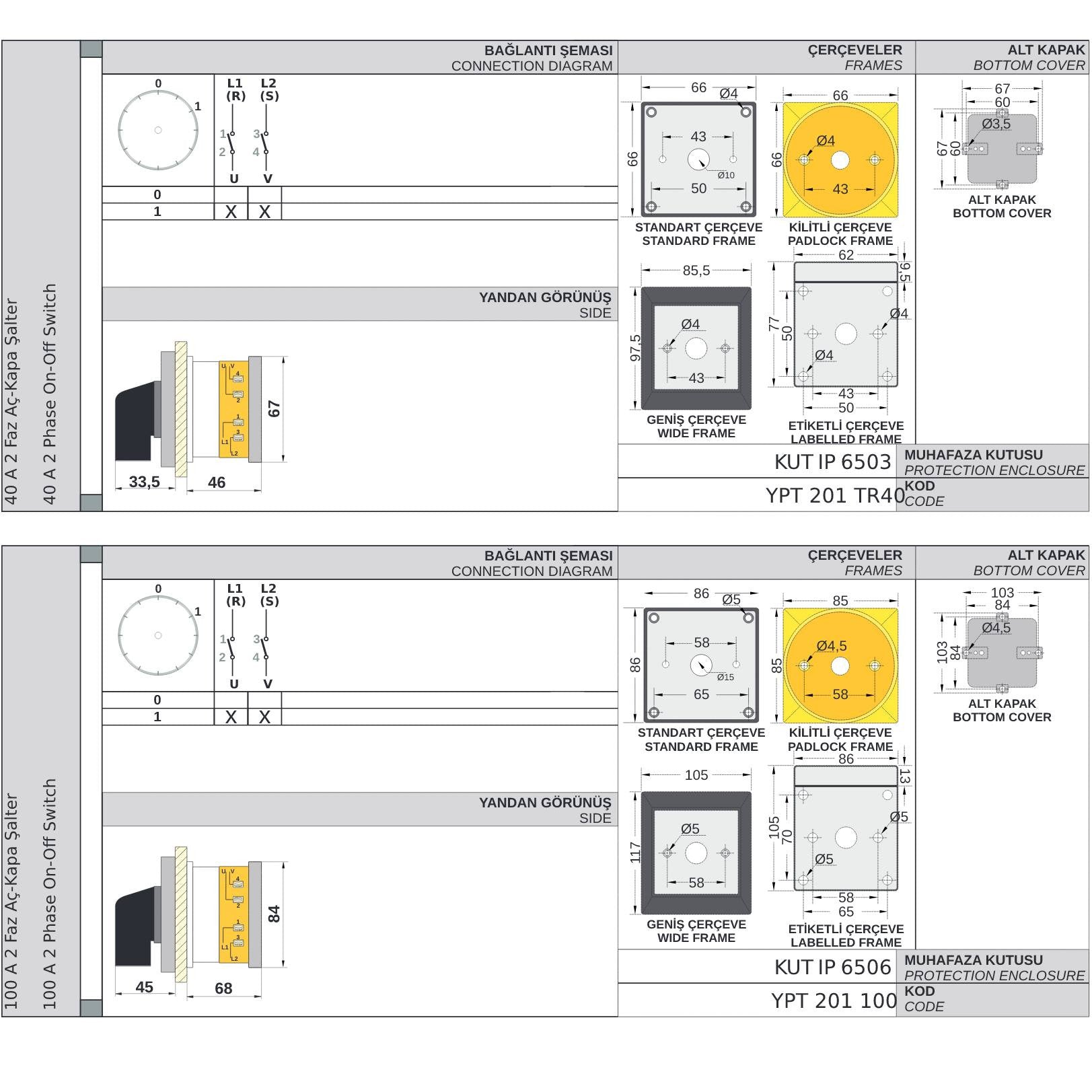

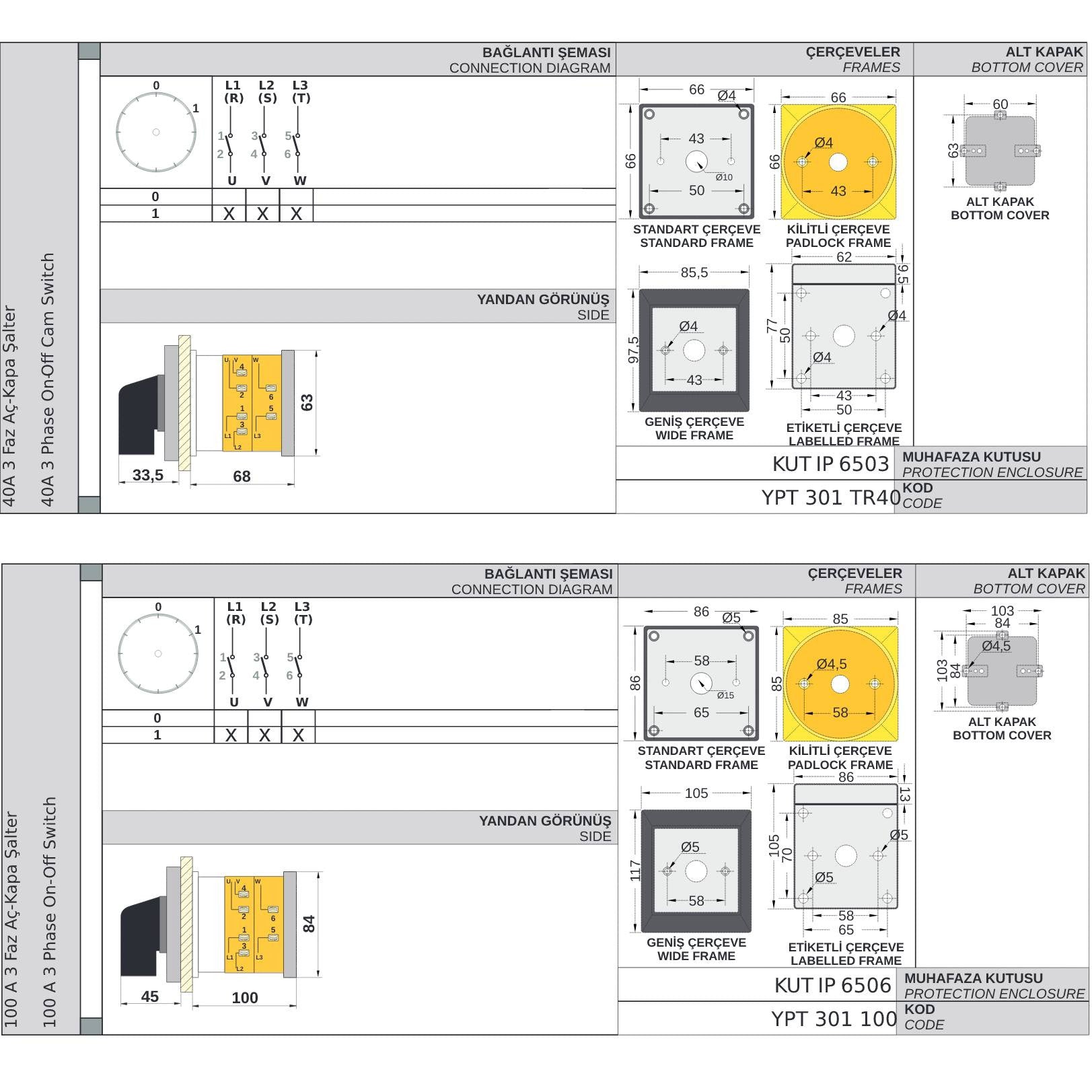

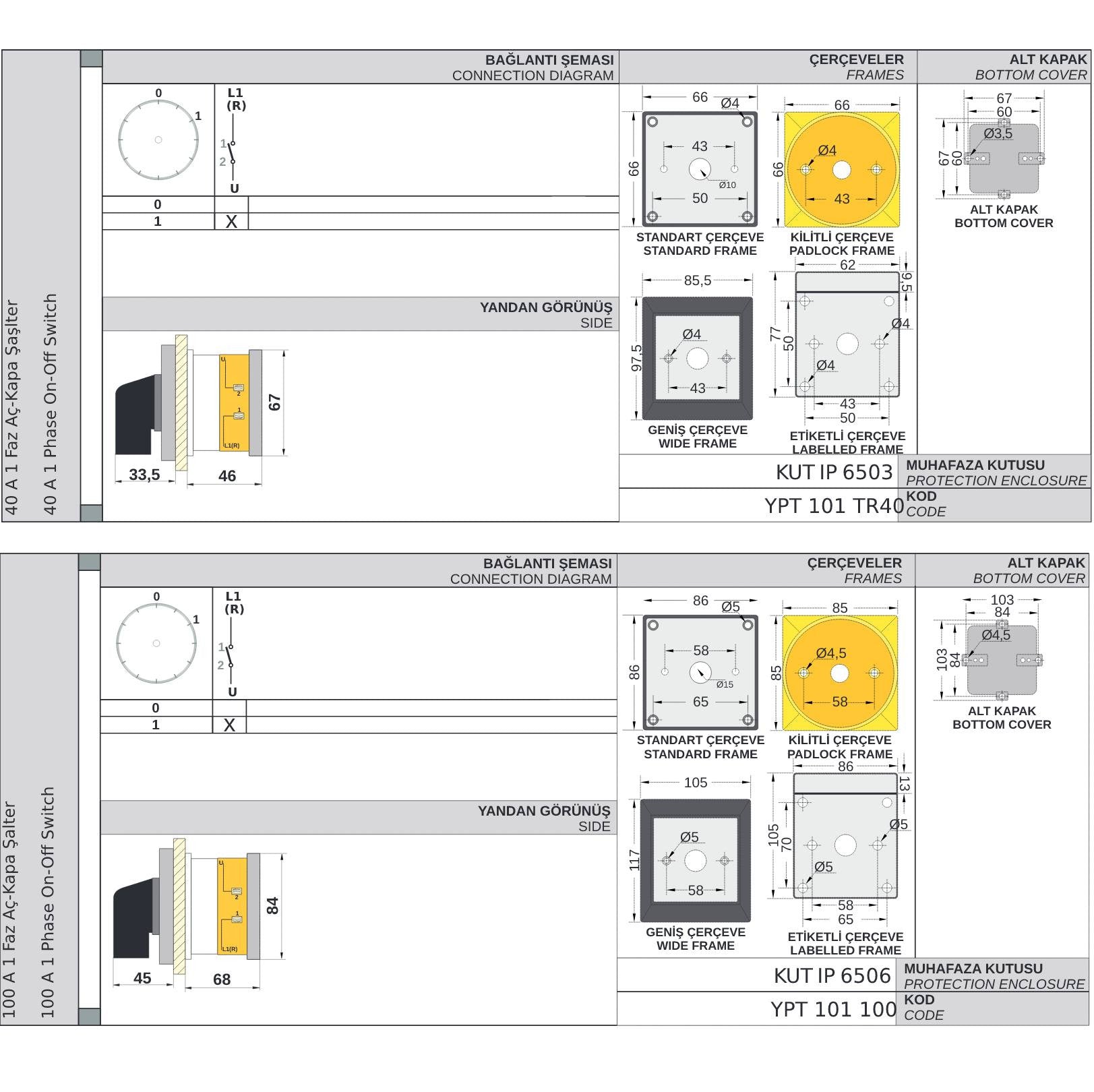

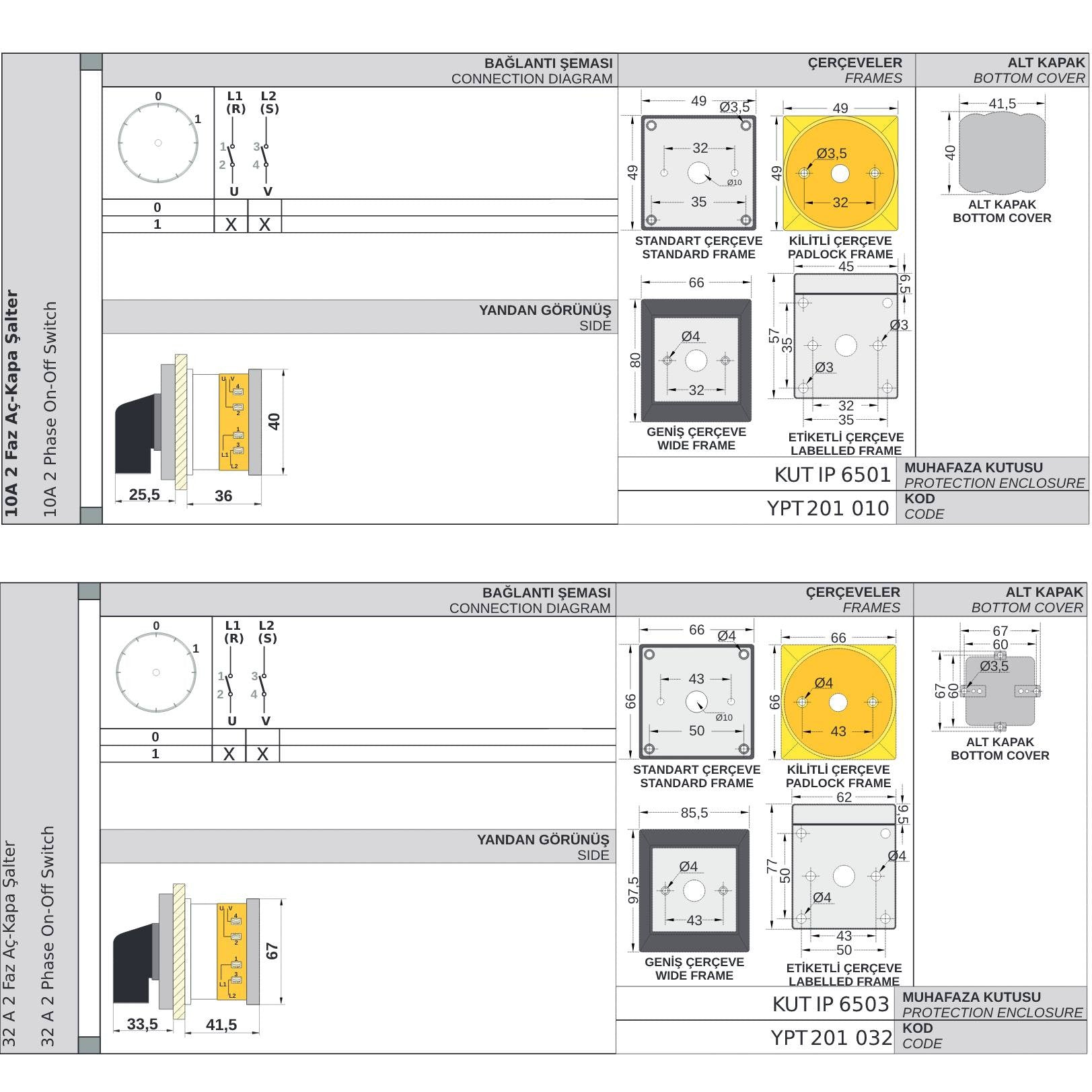

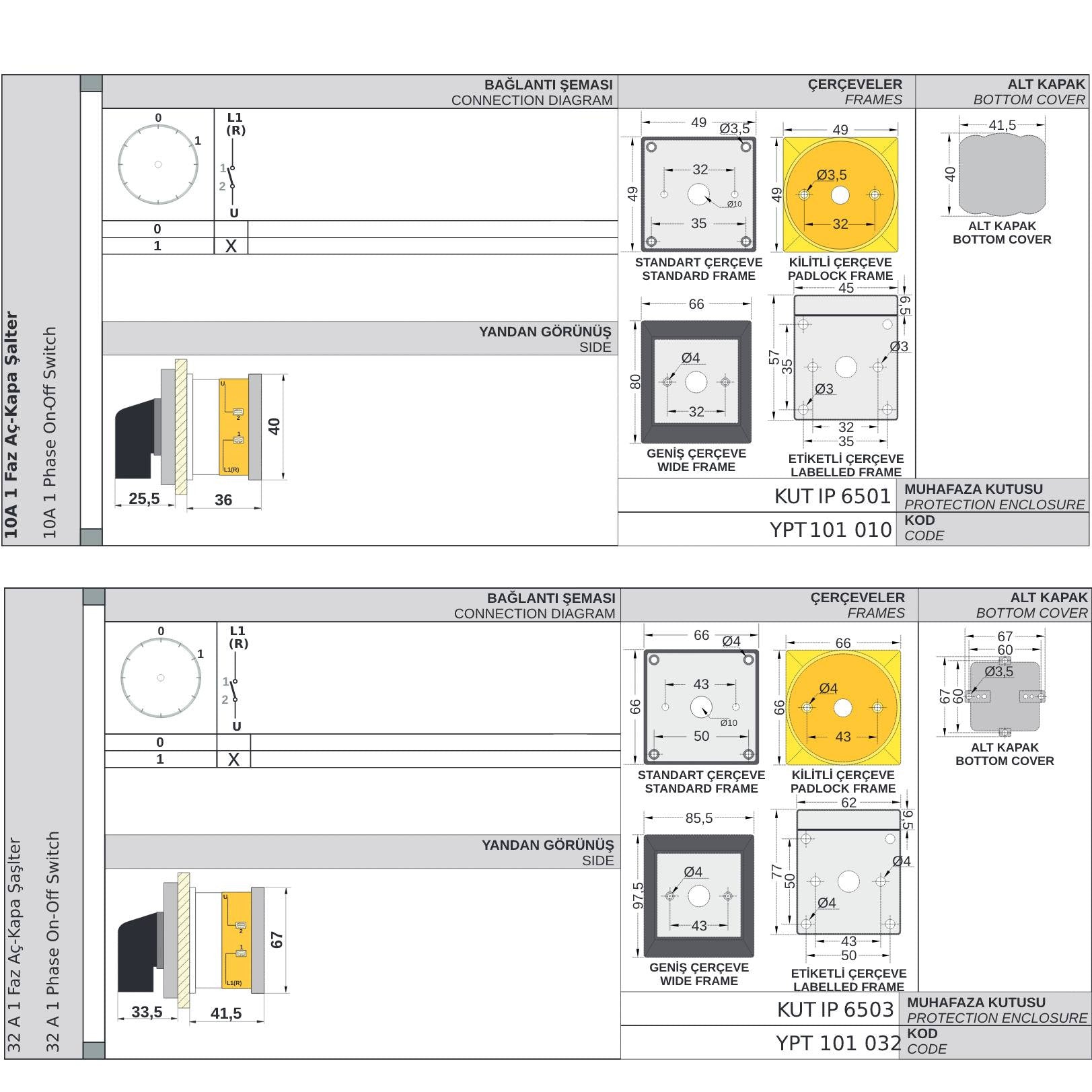

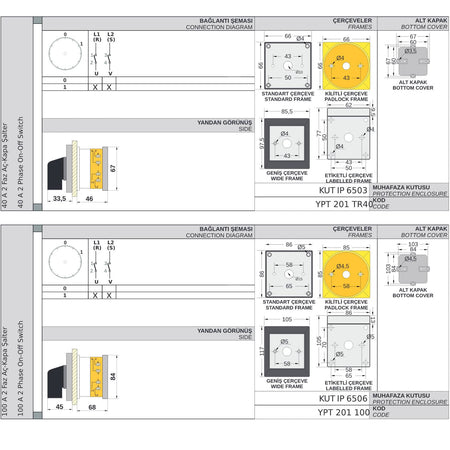

Available configurations

Number of poles

1 pole
2 poles
3 poles
4 poles

Rated currents 10 A, 16 A, 25 A, 32 A, 40 A, 63 A, 100 A, 125 A, 160 A, 200 A, 250 A, 315 A
