MRK 25 mm² terminal block for rail mounting (with cover)
- Regular price
- €12,40
- Regular price
-
- Sale price
- €12,40
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

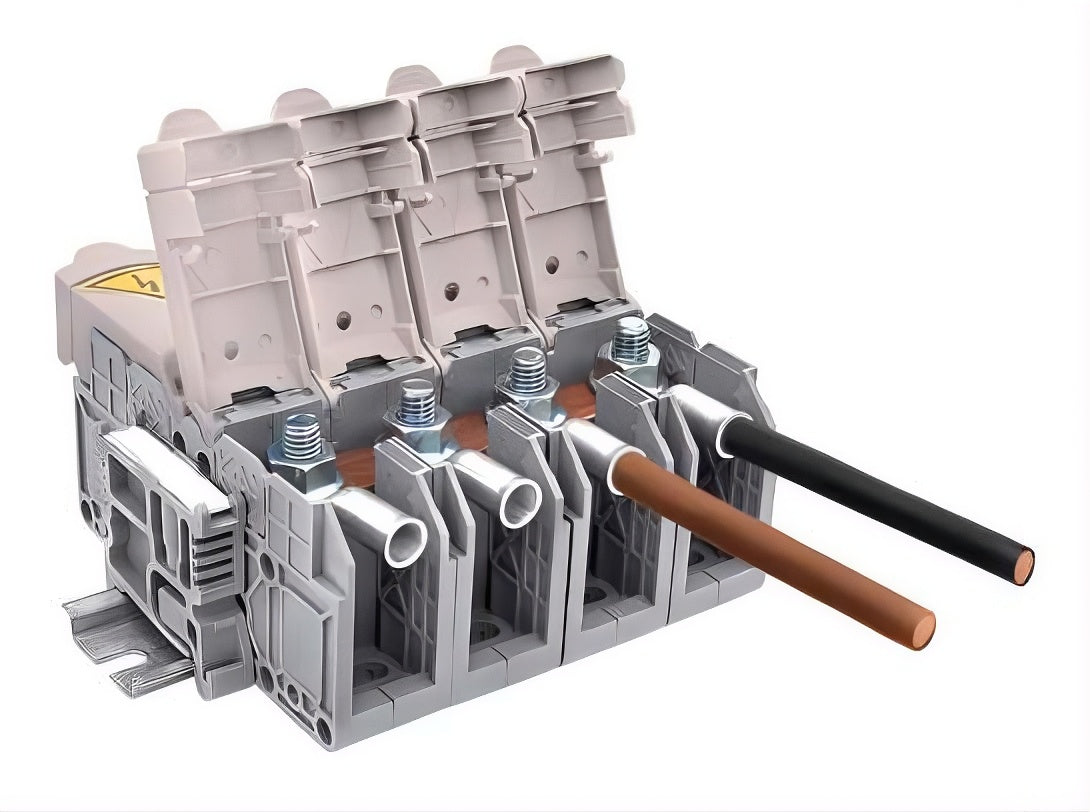

In-line terminal block with protective cover for DIN rail mounting, ONKA
The robust MRK series industrial series terminal block with a nominal cross section of 25 mm² is designed for safe and reliable connection of power conductors in switchboard cabinets. The terminal block is fitted with an M6 metric screw mechanism, which provides stable and high pressure to minimise transient resistance at full current load of 101 A. The design includes an integrated insulating cover to enhance operator safety and protect against accidental contact with live parts. The base of the clamp allows for quick and secure mounting to a standard DIN 35 mm support rail.
Technical parameters
Product type.
Nominal conductor cross-section: 25 mm²
Rated voltage: 1000 V
Rated current: 101 A
Bolt size: M6 (screw connection)
Mounting method: mounting rail DIN 35 mm

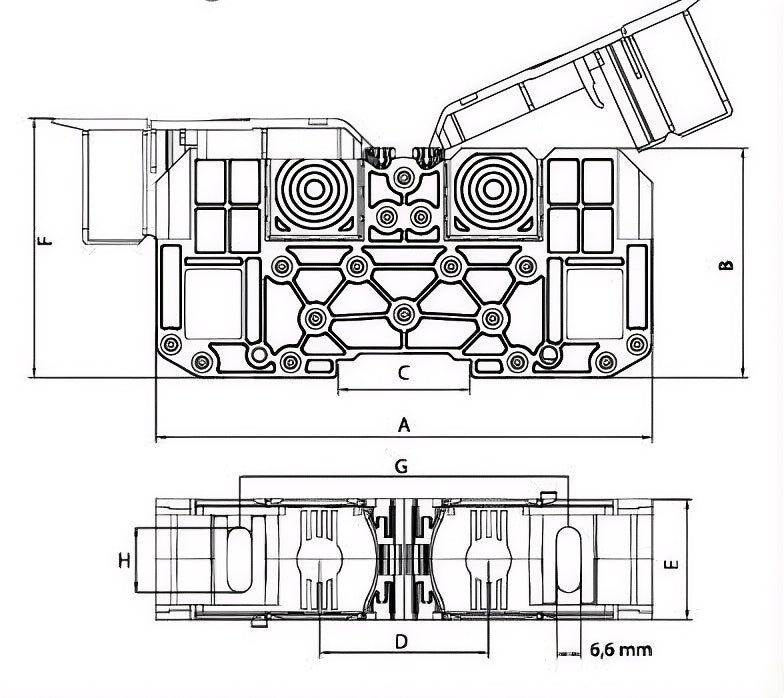

Dimensions
Dimension A: 107.0 mm
Dimension B: 50.8 mm
Dimension C: 35.0 mm
Dimension D: 40.0 mm
Dimension E: 27.0 mm
Dimension F: 58.5 mm
Dimension G: 76.5 mm
Dimension H: 16.3 mm
