Monitoring/protection three-phase relay for overvoltage, undervoltage control
- Regular price
- €39,68
- Regular price
-
- Sale price
- €39,68
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

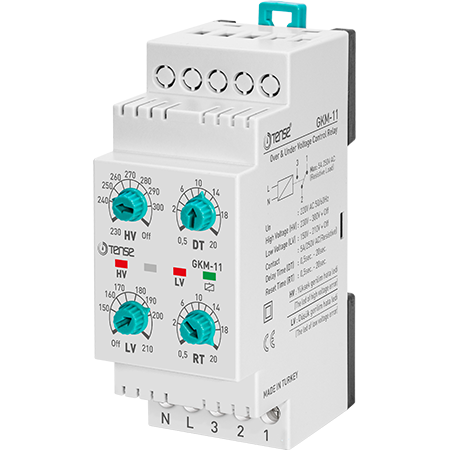

GKM-11 - Single-phase overvoltage and undervoltage relay, TENSE
Product description
The GKM-11 relay is used to protect sensitive equipment against overvoltage and undervoltage in single-phase distribution systems. When the set upper or lower voltage limit is exceeded, the relay opens the output contact and disconnects the load, preventing damage to the equipment.
Function and operation
-
Status indication:
-
Normal status - green LED
-
High voltage fault - red "HV" LED
-
Low voltage error - red LED "LV"
-
-
Adjustable protection: upper and lower voltage limits, switching delay (DT) and reset time (RT)
-
Relay contact: 5 A / 250 V AC (resistive load)
Technical data
-
Operating voltage: 220 V AC, 50/60 Hz
-
High voltage range: 230-300 V
-
Low voltage range: 150-210 V
-
Delay and reset time: 0.5-20 s
-
Power consumption: <6 VA
-
Operating temperature: -20 °C to +55 °C
-
Mounting: DIN rail
-
Weight: 0.1 kg
-
Max. cable cross-section: 2.5 mm²
-
Max. installation altitude: 2000 m
Application
-
Single-phase distribution and switchgear
-
Sensitive electrical equipment, household appliances, industrial machinery
Uživatelská příručka
https://files.principalelektrik.org/en%3A%20GKM-01%2C%20GKM-11.pdf
