Modbus interface converter RS485 to RS232 to PC via USB
- Regular price
- €44,52
- Regular price
-
- Sale price
- €44,52
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

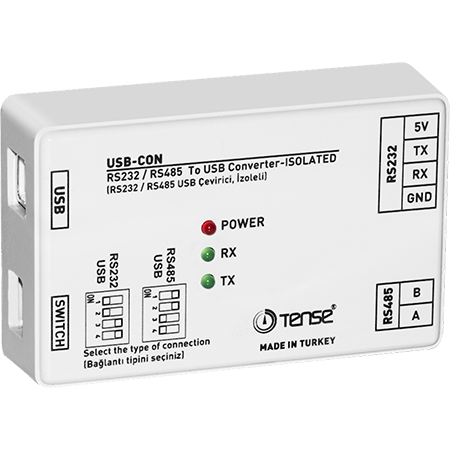

RS485/RS232 to USB - USB-CON protocol converter (TENSE, Turkey)
USB-CON is a compact converter/gateway designed to connect RS485/RS232 (MODBUS) devices to a computer via USB port. It enables fast connection of power meters, multimeters, network analyzers and other automation equipment in industrial and home applications.
Features and benefits
-

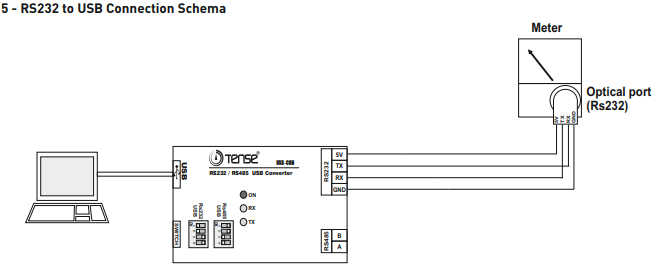

Direct PC ↔ RS485/RS232 (MODBUS) connection
-
No need for separate power supply - the converter is powered via USB
-

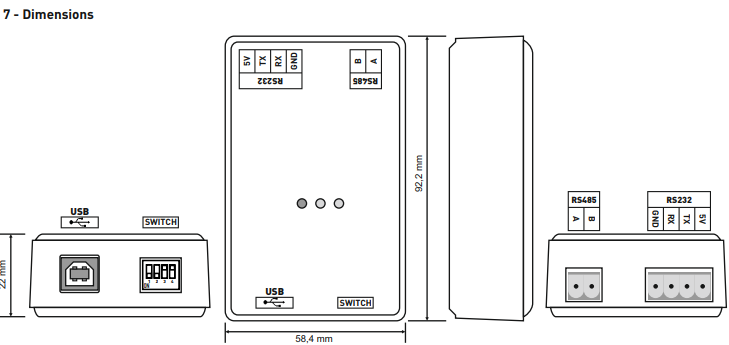

Compact dimensions: 9 × 6 × 3 cm
-
Quick connection via terminal block
-

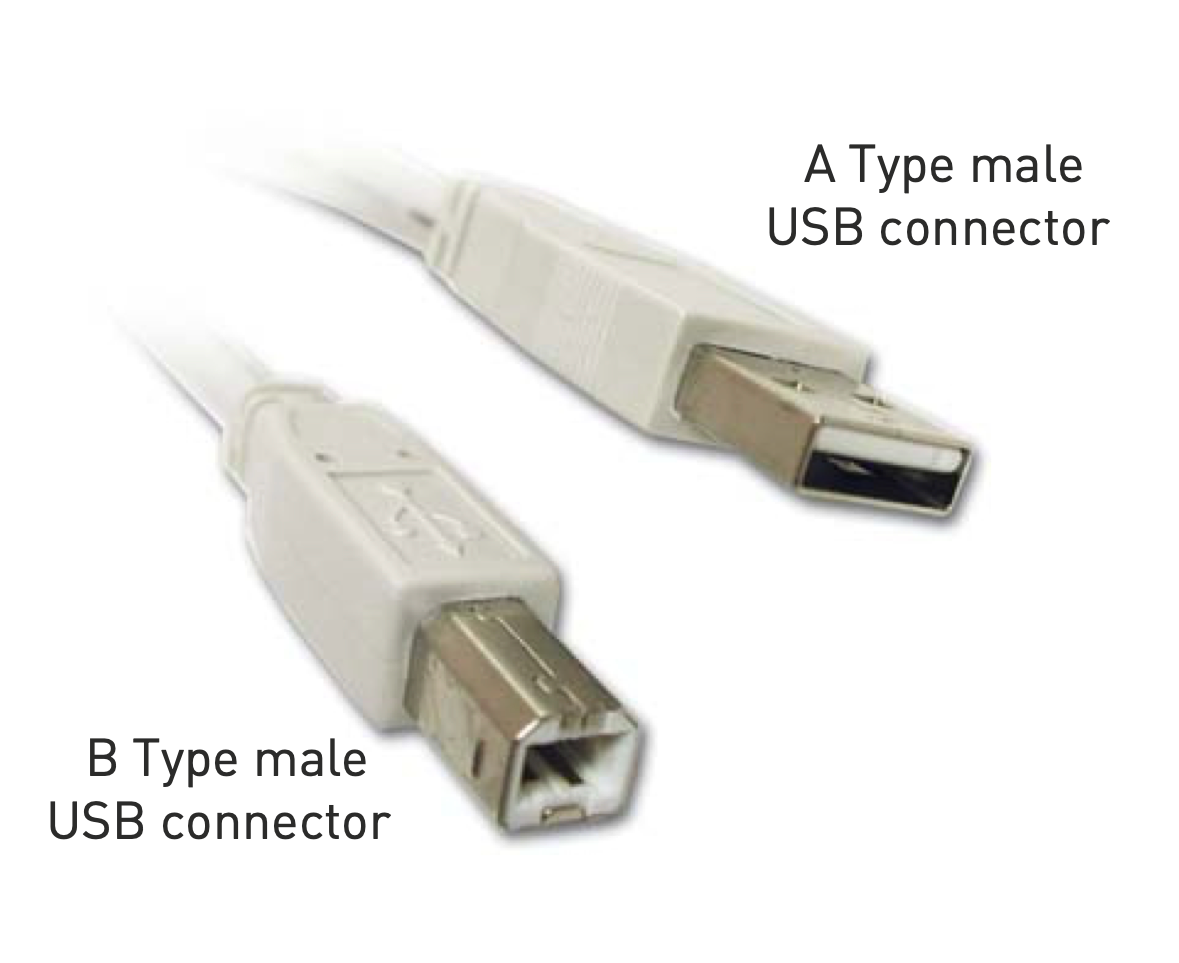

USB cable 1.2 m included
-

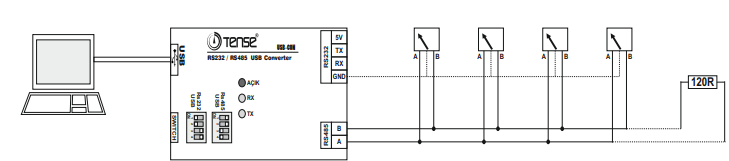

Support for up to 256 devices on the RS485 bus
-
LED indication of power and communication
-
High bit rate up to 203,400 bps
-
Galvanically isolated inputs and outputs
-
Wide temperature range: -20...+55 °C
-
Free software for configuration and diagnostics
Technical parameters
-
Interface: USB ↔ RS485 / RS232
-
Protocol: ModBus (RTU/ASCII)
-
Power supply: from USB port
-
Max. communication speed: 203 400 bit/s
-
Max. number of devices on RS485 bus: 256
-
Indication: LED - Power / Data
-
Dimensions: 90 × 60 × 30 mm
-
Operating temperature: -20...+55 °C
Uživatelská příručka
