Modbus Gateway RS485 TCP/IP 230V interface converter
- Regular price
- €146,00
- Regular price
-
- Sale price
- €146,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

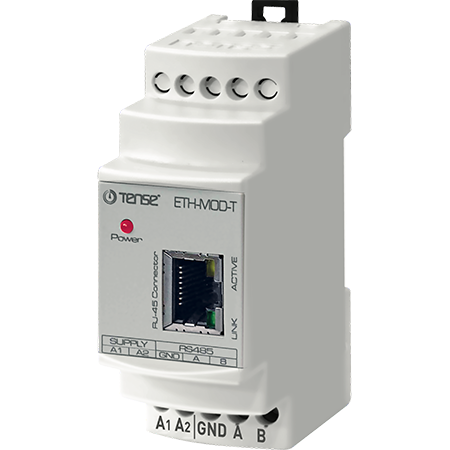

Protocol converter RS485 → TCP/IP (Ethernet/WAN/LAN) - ETH-MOD-T | TENSE Turkey

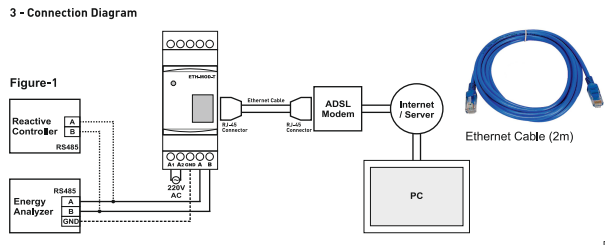

The ETH-MOD-T protocol converter from TENSE Turkey is a compact network gateway designed to connect RS-485 (MODBUS RTU ) devices to a local area network (LAN), large SCADA systems, OPC servers or to the Internet via a WAN connection. It allows remote supervision, monitoring and configuration over standard network infrastructure.
Main features and benefits
-
RS-485 to TCP/IP (Ethernet/WAN/LAN) conversion
-
Suitable for SCADA, OPC, remote servers and industrial automation systems.
-
Compact design - only 2 modules (35 mm wide)
-
Quick installation on a 35 mm DIN rail
-

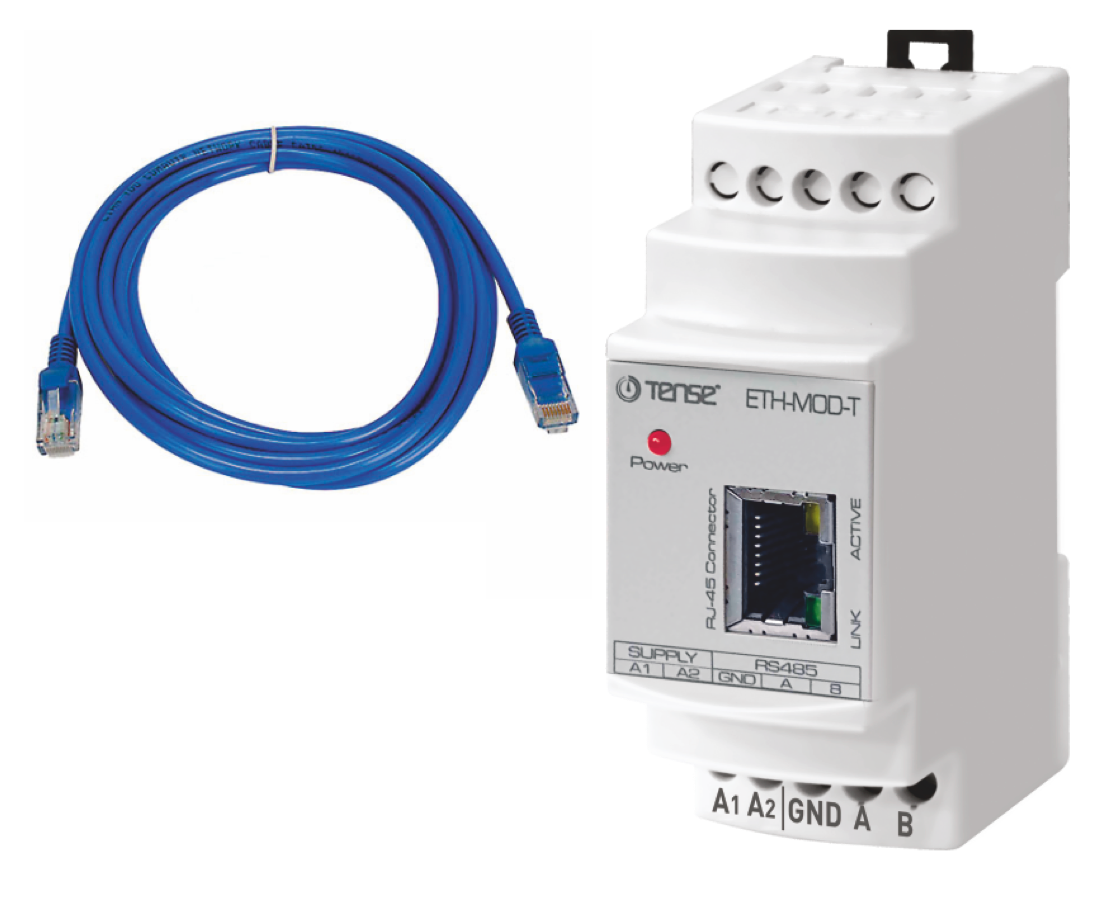

Supplied with Ethernet cable (2 m)
-
220 V AC power supply
-
Wide input voltage range 85-300 V, high surge resistance
-
Supports connection of up to 32 RS-485 / MODBUS devices
-
LED indication: power, network connection, communication
-
Data rate up to 115,200 bps
-
Ethernet 10/100BASE-T
-
Operating temperature: -20 °C to +55 °C
-
No additional cooling required
-
Free software for gateway configuration
Protocol compatibility
-
The device works exclusively with the MODBUS RTU protocol.
Usage
-
Industrial control and automation
-
SCADA systems
-
Remote monitoring of electricity meters, energy meters, network analyzers
-
Connection of RS-485 devices to LAN/WAN infrastructure
-
Integration into IoT/IIoT systems
