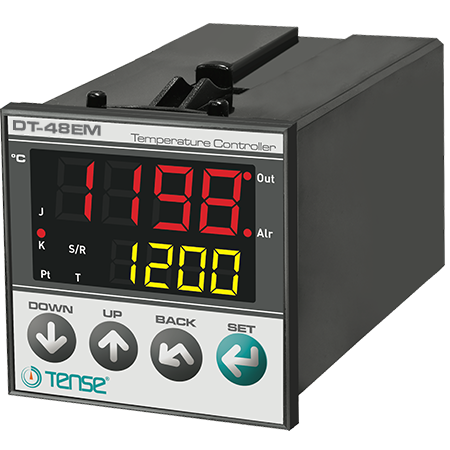

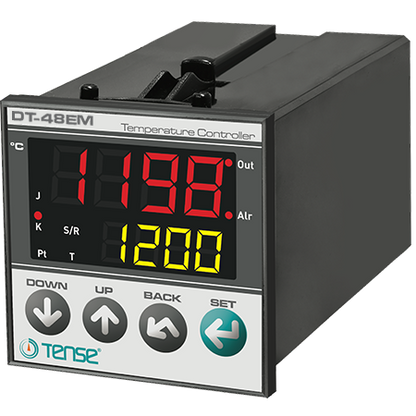

Detailed description - Panel Temperature Controller DT48-EM, PID & On/Off

Product Description

The DT48-EMPanel Temperature Controller is a single channel controller designed for heating with universal input. It supports resistive sensor Pt100 andthermocouples type J, K, T, R, S.

It features a two-line, highly readable display:

• Top red line - digits 9 mm

• Lower yellow line - digits 7 mm

The controller is not suitable for cooling control.

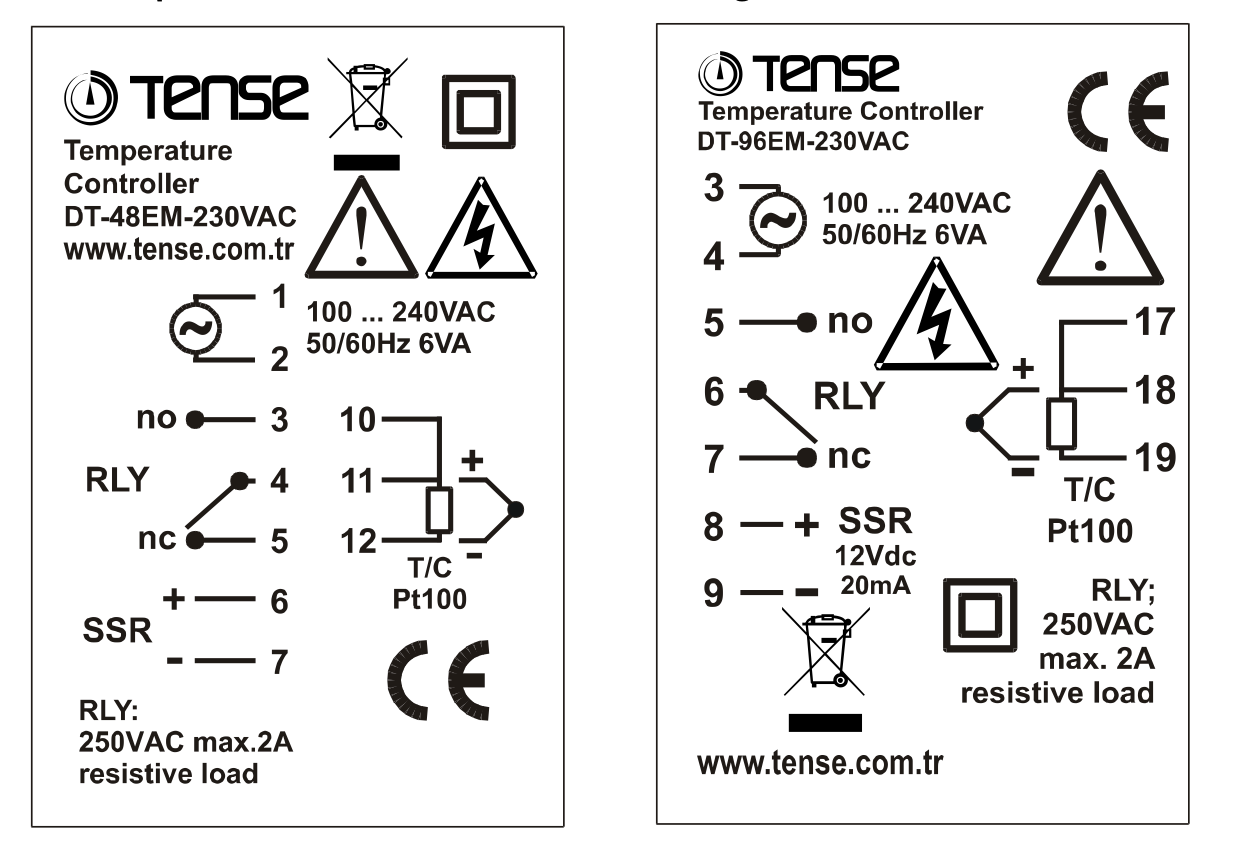

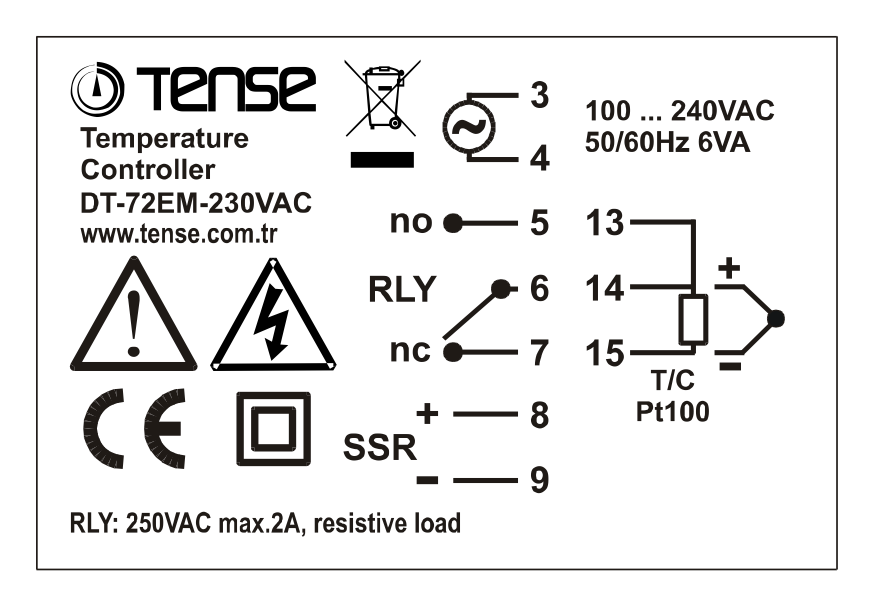

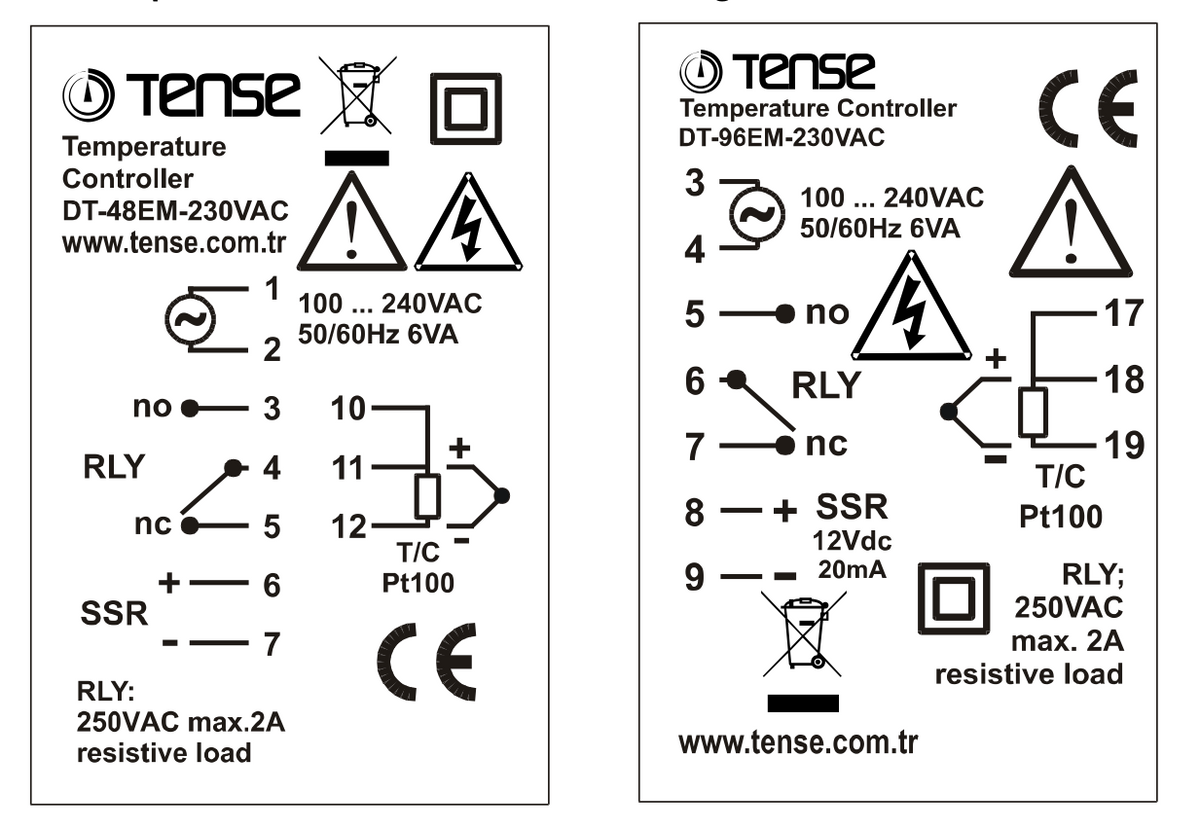

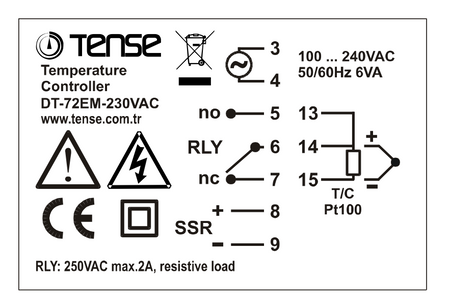

Outputs

• SPDT relay 2A / 250 VAC for resistive load

• Digital output 12 VDC / 20 mA Max. for SSR relay

Mechanical parameters

• Dimensions: 48 × 48 × 90 mm

• Mounting hole: 46 × 46 mm

• Power supply: 230 VAC

Typical applications

Temperature control in industry:

• Light industry machinery and equipment

• Food processing plants

• thermal processes

• small furnaces

• automation of technological units

Functions and features of the controller

• PID temperature controller

• Automatic tuning of PID parameters

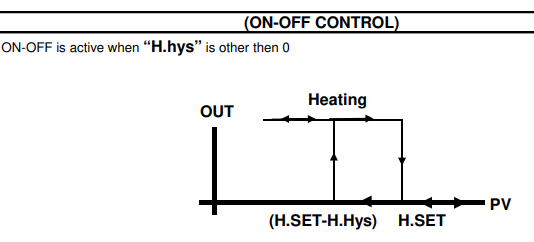

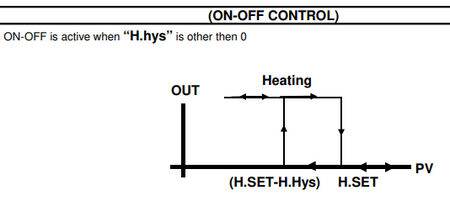

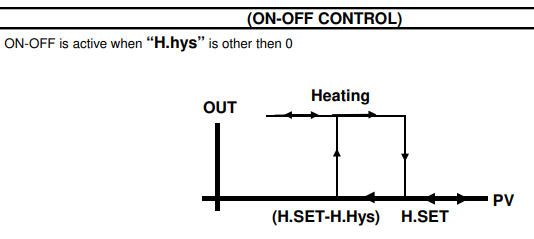

• Selectable control type: P, PI, PD, PID, ON/OFF

• Ramp on mode

• Anti-windup function in PID/PI

• Adjustable upper and lower SET limits

• Simultaneous display of Sv (desired) and Pv (actual) values

• Cold junction compensation (T/C)

• Line resistance compensation (Pt100)

• Linear conversion according to °C/mV and °C/Ohm tables

• Offset function to shift values over the entire range

• Password protection of settings

• High measurement accuracy

• EEPROM memory for storing settings

• Easy connection thanks to 5.08 plug-in connectors

• 230 VAC power supply

Installation recommendations

When ordering, it is recommended to purchase:

• TK temperature sensor

• 2 pieces of 2A circuit breakers for protection of input and output channels

Measuring scale for DT48-EM TENSE
