Vendor: TENSE

Level switch / Filling level monitor, discharge level gauge for borehole VSR-05 TENSE

Barcode: VSR-05
€30,60
€30,60
excl. VAT: €25
Low stock: 9 left

Frequently bought together

de06e037dbc494e38b025e8b975bdb5e

Float level switch for clean water (filling, draining), NO+NC, PVC  – 1.6 m

€10,92
€10,92
50e56a1777788c33f4848d8b1b776e3f

 – Stainless steel level probe in PVC housing for water level regulator SSE-10 TENSE

€4,92
€4,92
  • Description
  • Manuals
  • Payment methods
  • Warranty

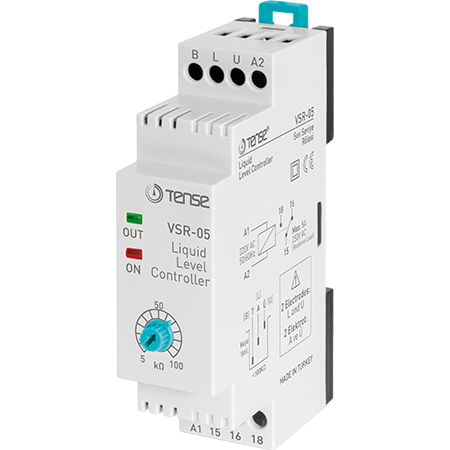

Water level control relay VSR-05 - TENSE

Product description

The VSR-05 relay is designed for automatic control of pumping or over-pumping of water in tanks, wells, boreholes or expansion tanks.

It supports the use of two or three level sensors and allows adjustment of sensor sensitivity for precise control of pumps.

Main functions

  • Water level control in tanks, wells, boreholes and expansion tanks

  • Supports two or three level sensors

  • Sensor sensitivity adjustment for precise control

  • Pump protection with recommended 2A circuit breaker (2 pieces)

  • Clamp connection for easy installation

Technical parameters

  • Rated voltage: 220 VAC

  • Operating voltage range: 170-260 V AC

  • Operating frequency: 50/60 Hz

  • Operating Power: < 3 VA

  • Operating temperature: -10 °C ... +50 °C

  • Dimensions: 22.5 × 75 × 85 mm

  • Weight: 250 g

Recommended accessories

  • Level sensors (2 or 3 pieces depending on wiring)

  • 2A circuit breaker to protect input and output channels (2 pieces)

Application

  • Automatic switching on and off of pumps

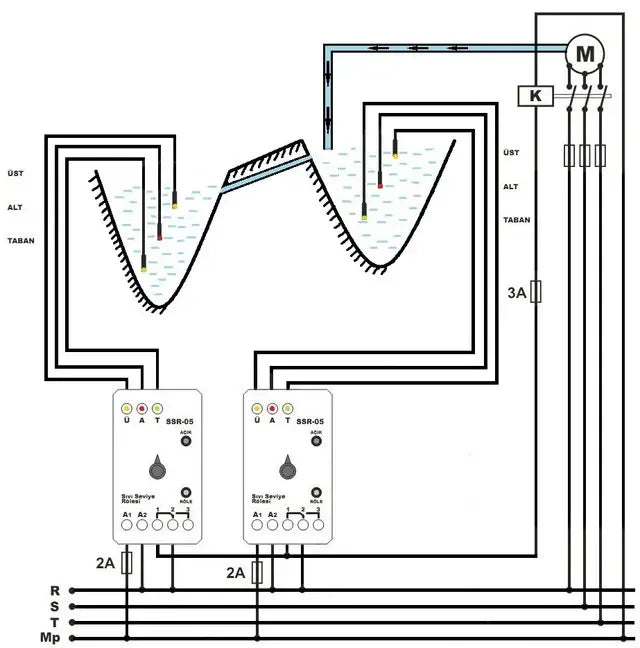

  • Control of water pumping between tanks

  • Maintaining optimum water level in expansion tanks

  • Ideal for domestic and industrial applications
