Vendor: TENSE

Level controller, borehole level gauge with level switch timer SSR-05D TENSE

Barcode: SSR-05D
€34,00
€34,00
excl. VAT: €28
Low stock: 8 left

Frequently bought together

de06e037dbc494e38b025e8b975bdb5e

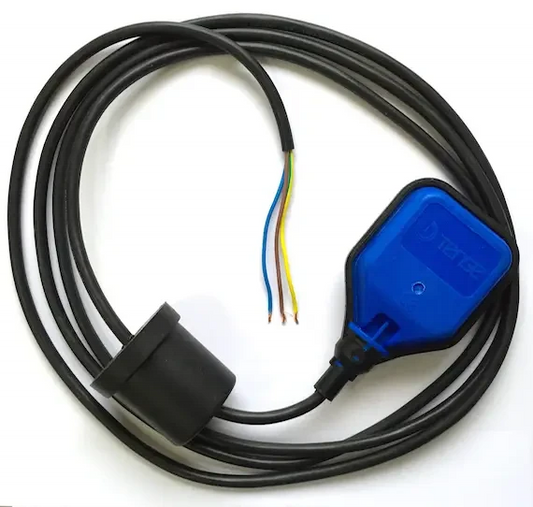

Float level switch for clean water (filling, draining), NO+NC, PVC  – 1.6 m

€10,92
€10,92
  • Description
  • Manuals
  • Payment methods
  • Warranty

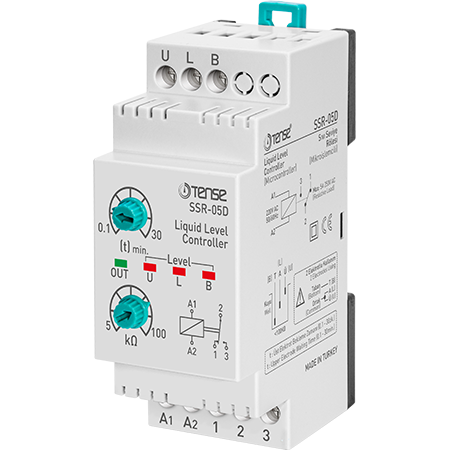

Digital level relay SSR-05D - TENSE

Product description

The SSR-05D relay is designed for water level control in wells, tanks, expansion tanks or pits.
It allows automatic pumping or draining of water and is compatible with two or three level sensors.

Digital microprocessor control provides:

  • Long sensor life - current does not flow continuously between sensors, but in pulses.

  • Pump delay time adjustment - suitable for wells or tanks with variable water levels.

  • LED indication of water level - upper, middle and lower level, for easy visual monitoring.

Electrodes (water level sensors) not included.

Main features

  • Water level control in well, tank or expansion tank

  • Possibility of using 2 or 3 level sensors

  • Sensor sensitivity adjustment

  • Pump response delay time adjustment

  • LED indication of water level (upper, middle, lower level)

  • Protection of the pump against dry running

Technical parameters

  • Ratedvoltage: 220 V AC

  • Operating range: 150-260 V AC

  • Operating frequency: 50/60 Hz

  • Operating power: < 3 VA

  • Operating temperature: -10 °C ... +50 °C

  • Connection: terminal block

  • Mounting type: DIN rail + screws

  • Dimensions: 44 × 75 × 85 mm

  • Weight: 250 g

Recommended accessories

  • Level sensors (2 or 3 pieces)

  • 2A circuit breaker for protection of input and output channels (2 pieces)

Application

  • Automatic switching on and off of pumps according to water level

  • Protection of pumps against dry running

  • Tank fill indication

  • Suitable for domestic and industrial applications
