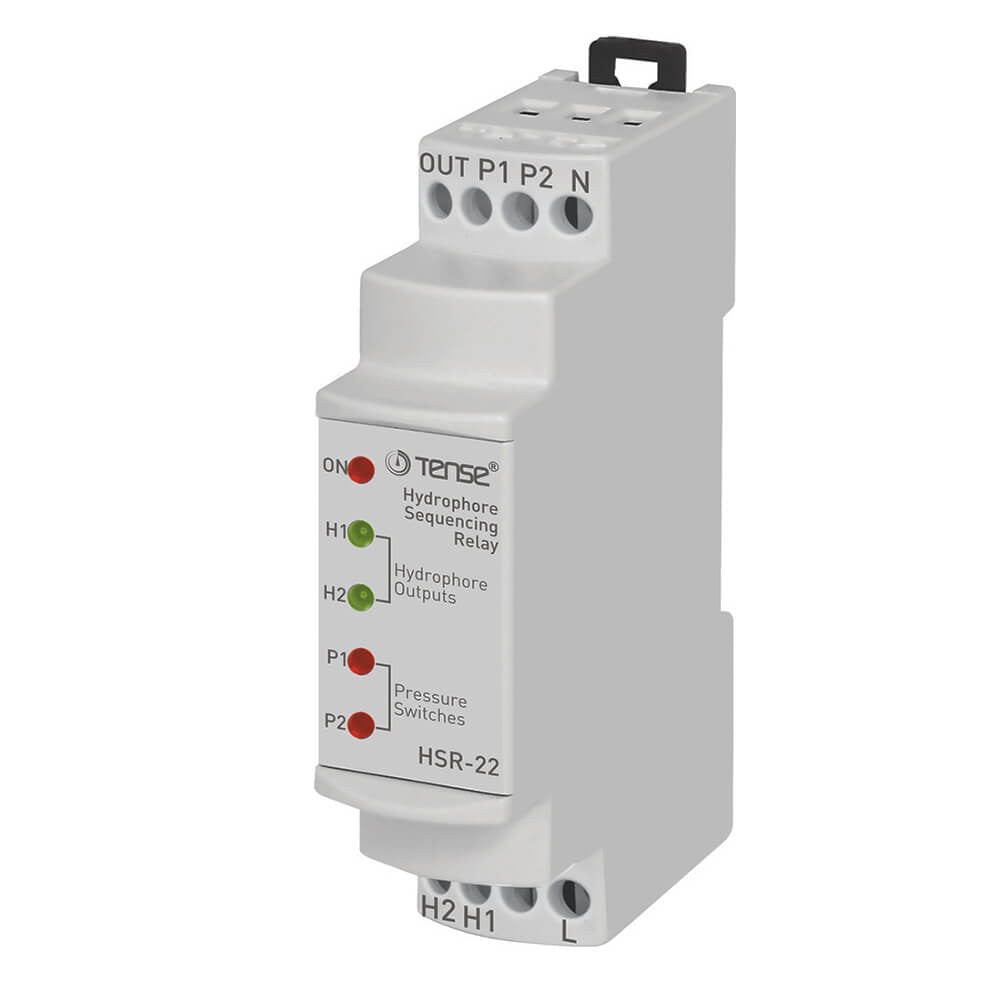

Hydrophore Sequence Relay

General information

Hydrophore shift relays have been designed to

to start up when required and operate simultaneously.

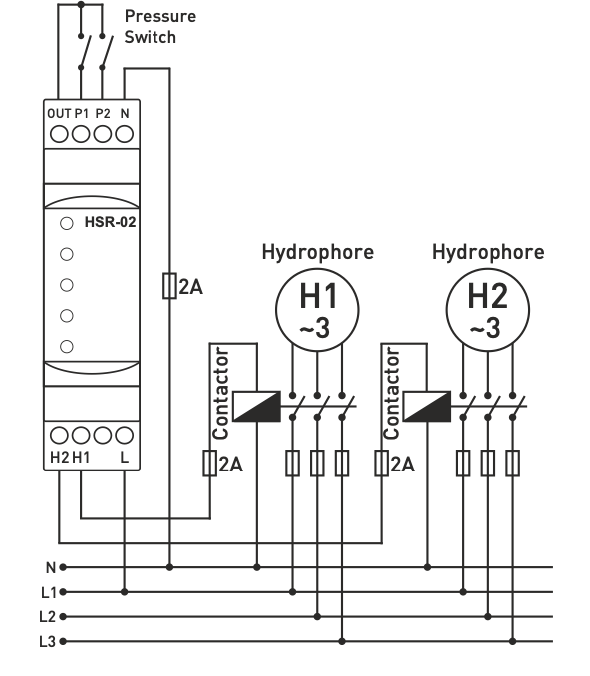

Use of the device and principle of operation

The sequence of the hydrophores is as follows: (H1) - (H2) - (H3) and (H1-H2) -.

(H2-H3) - (H1-H3). It activates the hydrophones at the same number,

where the switches are closed and keeps them running for a period of "t". At the end of time 't', the next hydrophore or group of hydrophores will activate and

t continues in this manner. Deactivates the hydrophones at the same number,

where the switches are open.

Note: Do not connect power to the inputs and outputs (P1, P2, P3).

of the pressure switch.

Maintenance

Turn off the device and unplug it from the connectors. Clean the cone of the device with a swab. Do not use any wires or chemicals that could

damage the device. After cleaning, make sure the device is working.

Warning

Use the equipment in accordance with the instructions for use.

Do not use the device in a humid environment.

The assembly includes a switch and circuit breaker.

Place the switch and circuit breaker close to the equipment so that the operator can easily reach them.

Mark the switch and circuit breaker as

release connector for the equipment.

Technical Specifications:

Operating voltage (Un).....: 150-250V AC

Operating frequency.......: 50/60 Hz.

Operating Power..............: <6VA

Operating Temperature....: -20°C.... +55°C

Time(t)......................: 10 minutes

Display......................: HSR-02=5 x LED, HSR-03=7 x LED

Connection type............: Clamp connection

Contact.....................: 3A/250V AC (resistive load)

Number of hydrophones........: 2(HSR-02) and 3(HSR-03)

Cable diameter..............: 1.5mm²(HSR-02), 2.5mm²(HSR-03)

Weight..........................: Max. 220g.

Mounting..........................: Vertical panel mounting or DIN rail mounting.
