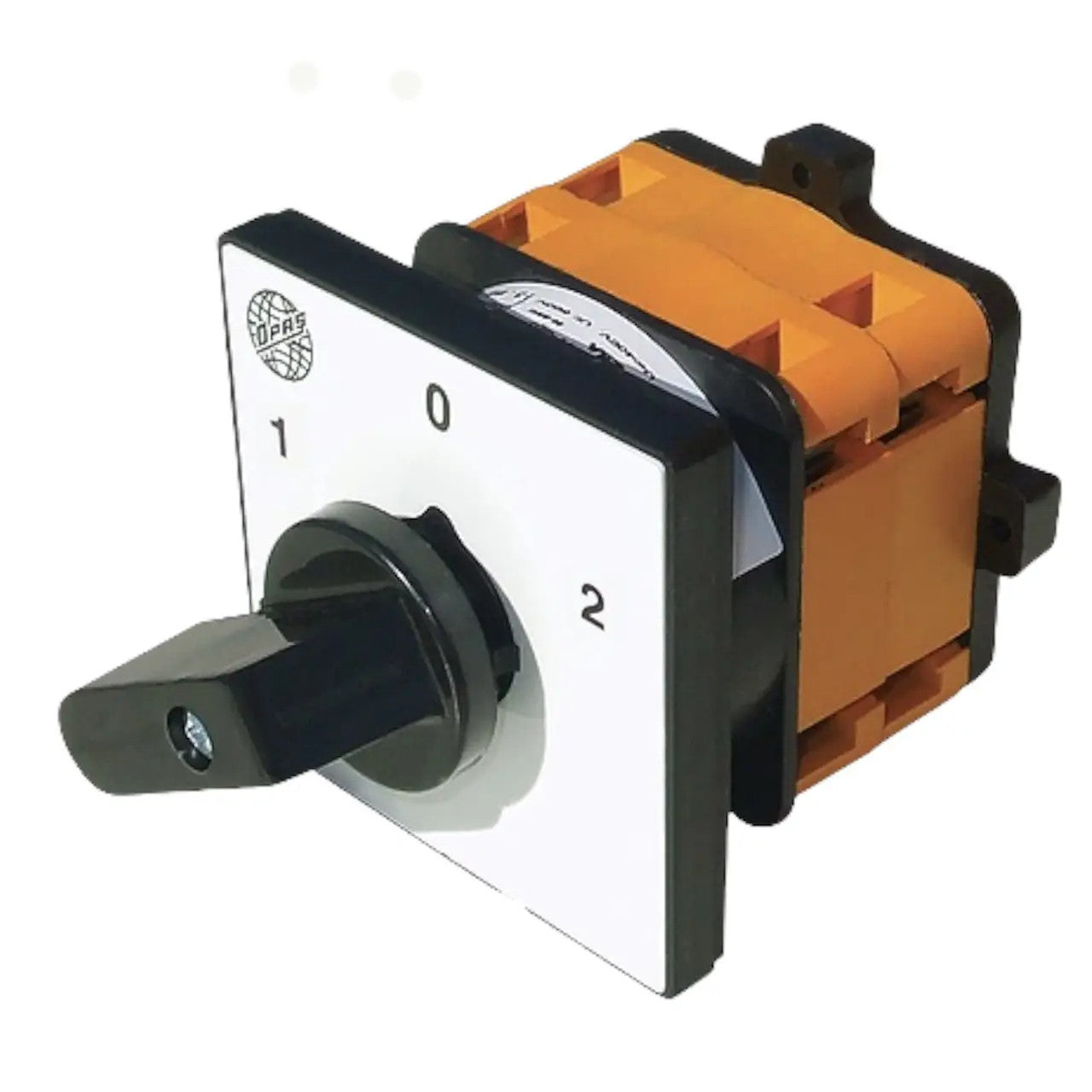

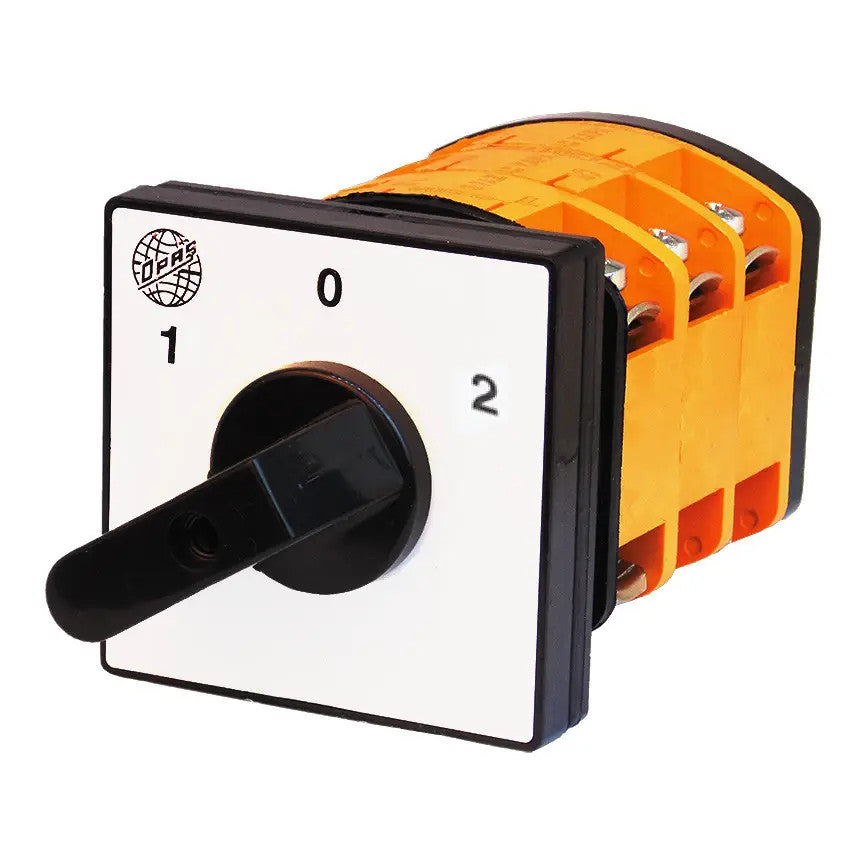

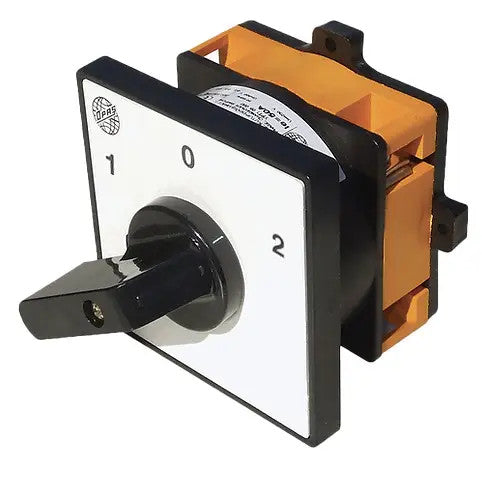

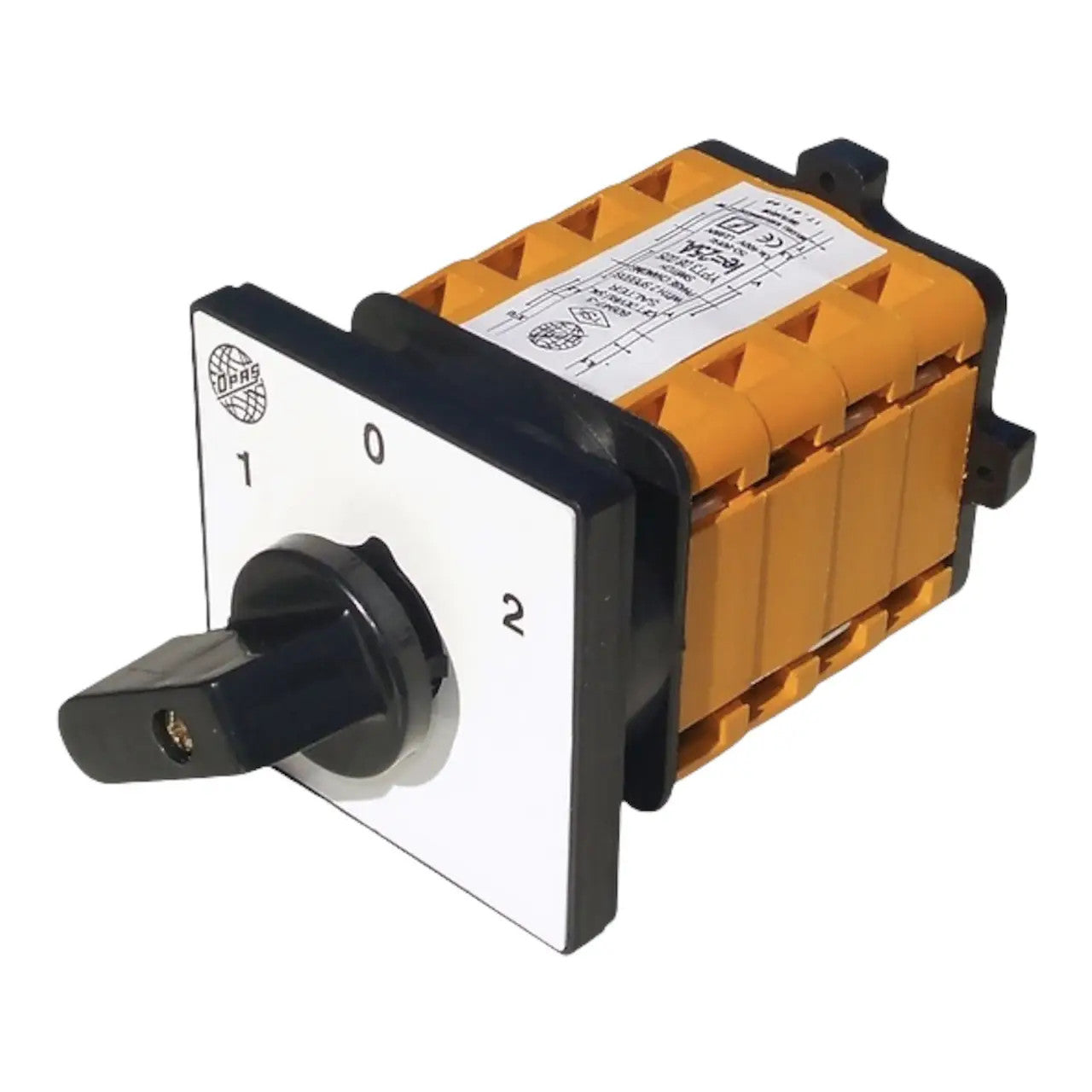

Cam multi-position switch 0-1-2-3 - OPAS (Turkey)

Name: Group switch 1-0-2, I-0-II, 1/0/2, ON/OFF/ZAP,
Brand: OPAS
SKU: YPT105010
Price: 8.84 EUR
Availability: InStock

OPAS cam multi-position switches are designed for manual control of low voltage electrical circuits. They are used for main and control circuits, switching on and off electric motors, switching operating modes and controlling other low power equipment.

The switches in this series are characterized by their compact design, high electrical and mechanical resistance and long service life.

The 0-1-2-3 multi-position model allows switching between several operating modes, such as different motor speeds, power levels or heating stages.

Technical features

Design: cam switch
Device type: rotary switch

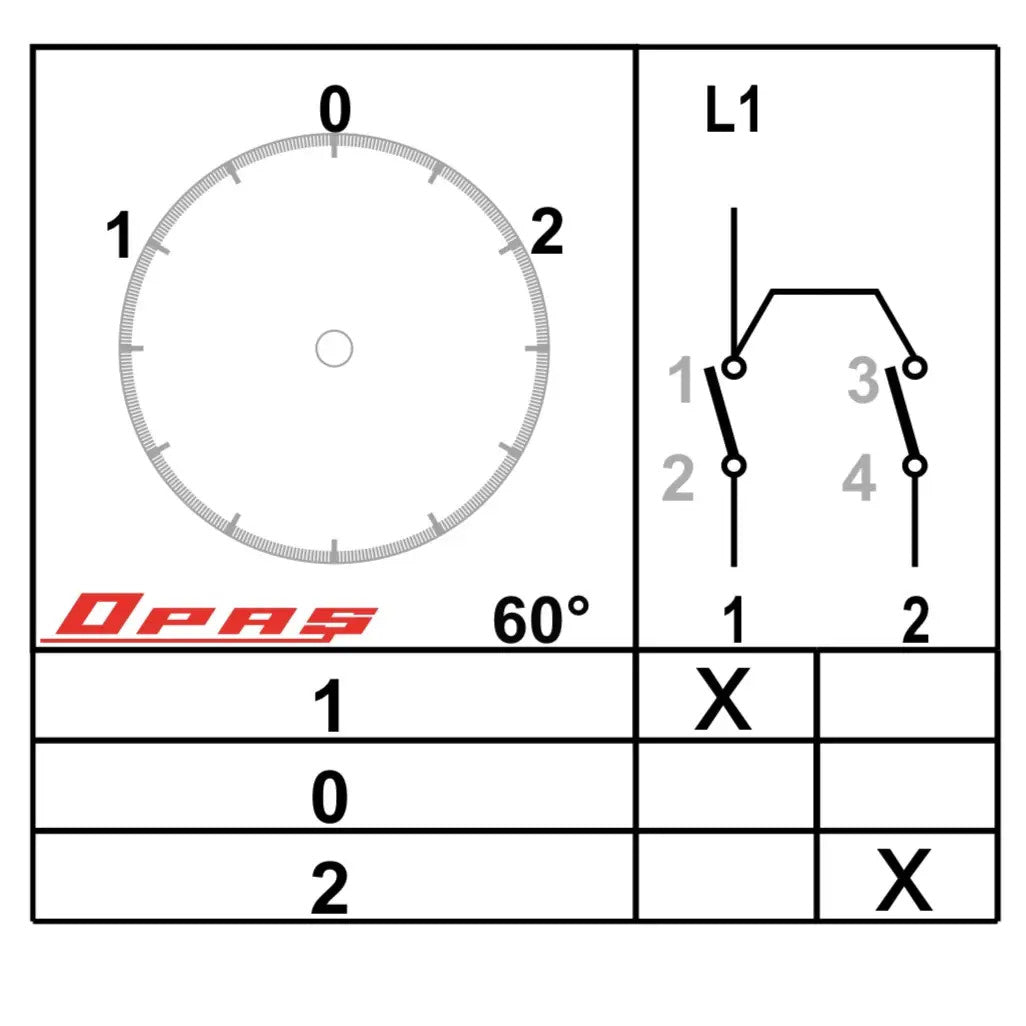

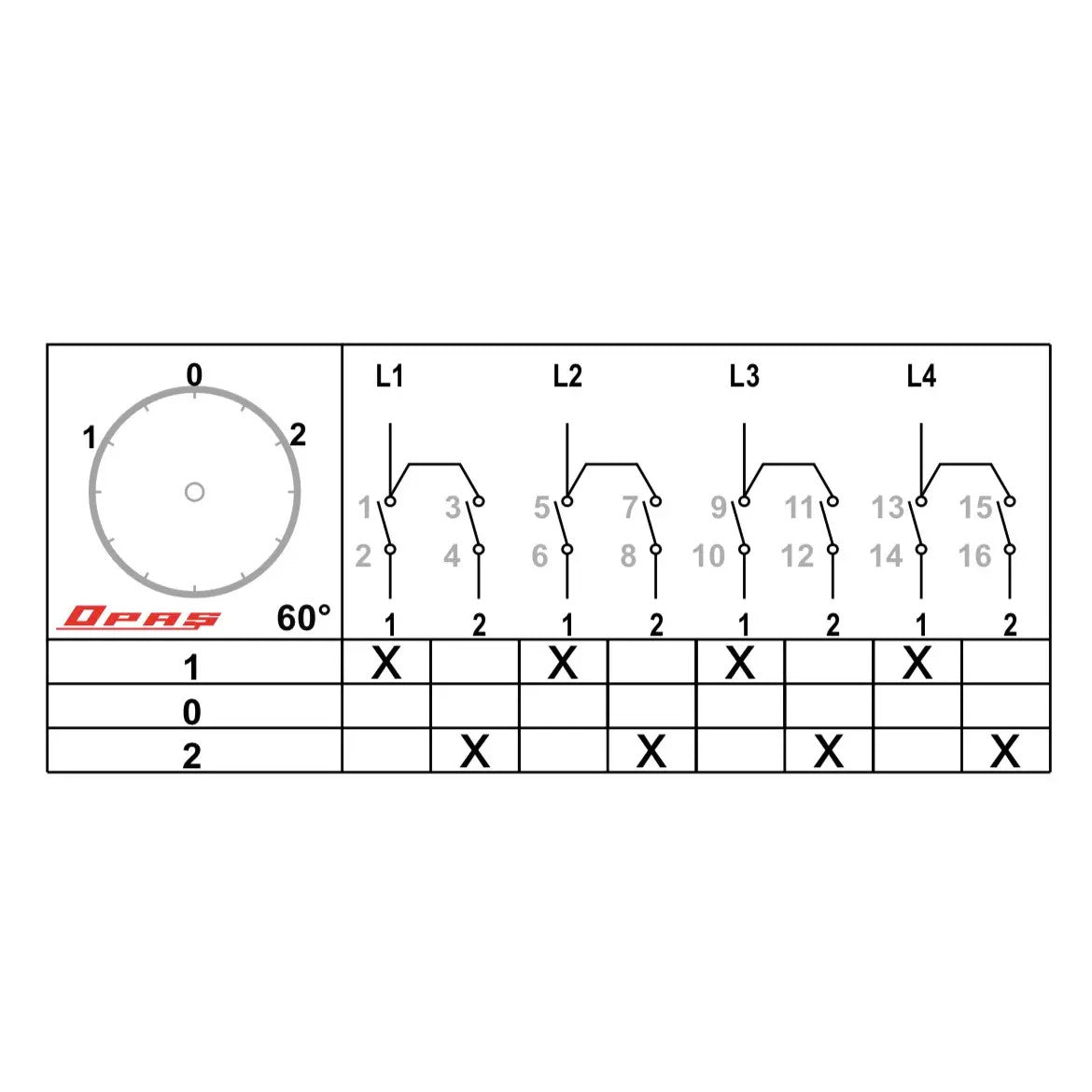

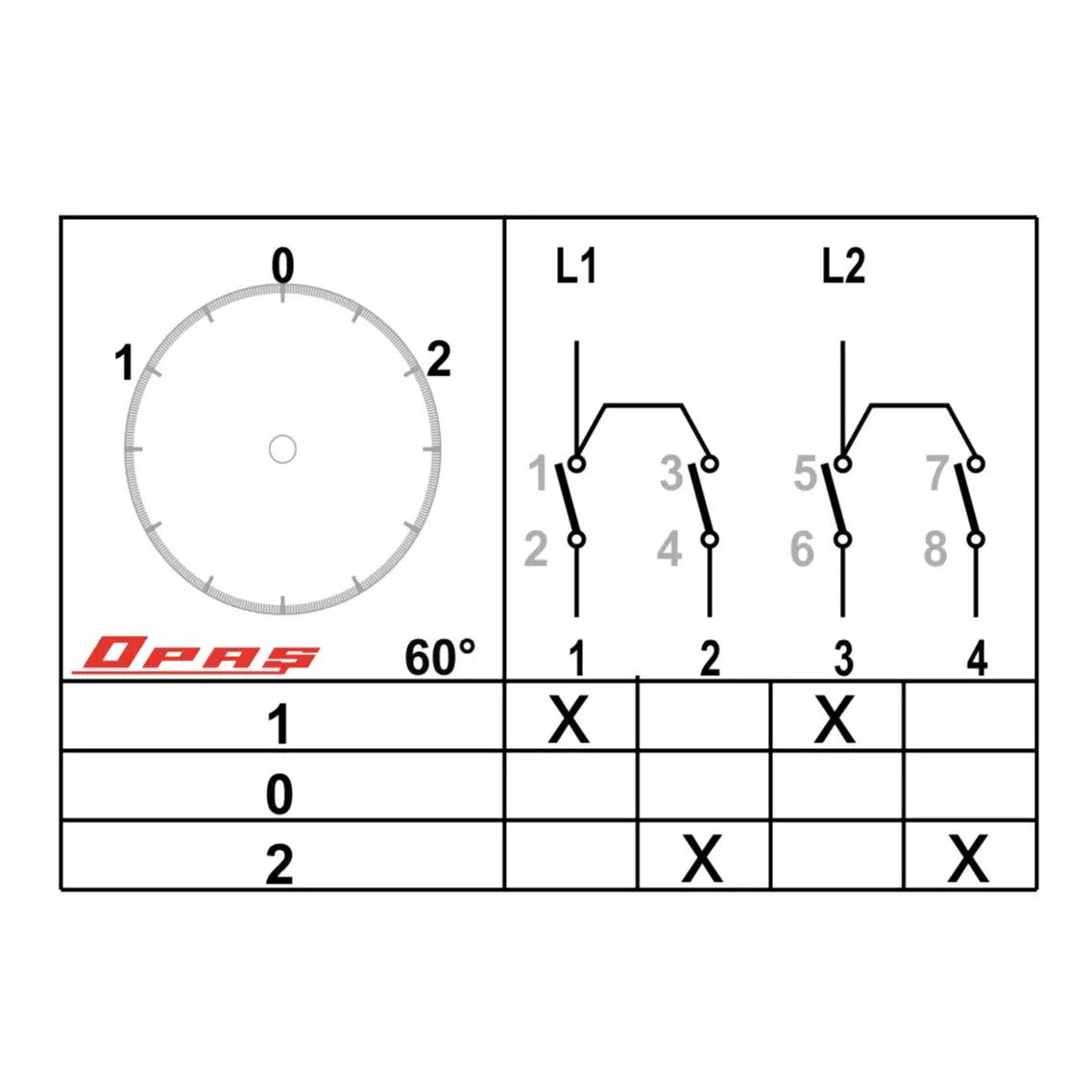

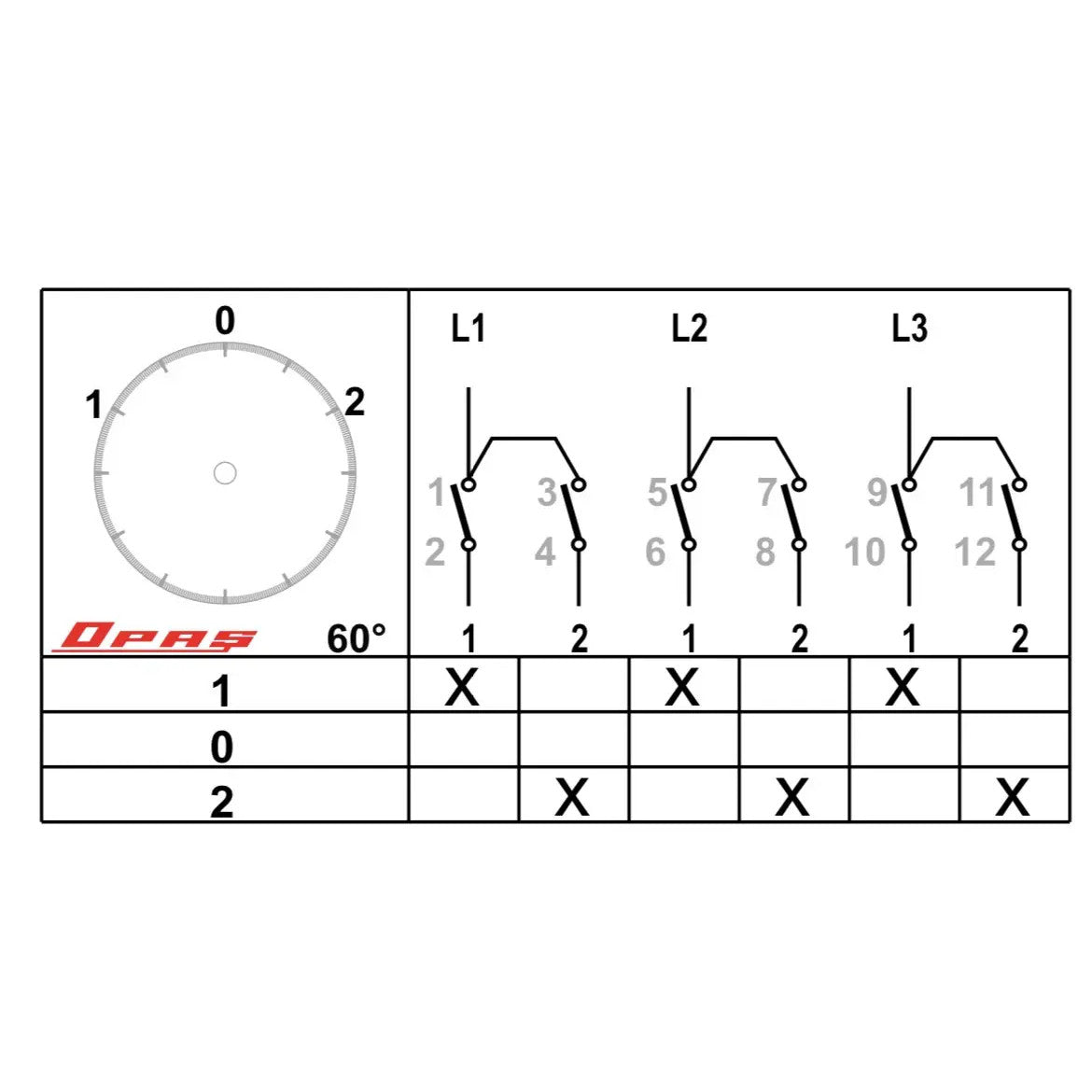

Switching scheme: 0 - 1 - 2 - 3
Počet pólů: 1-2-3-4 poles
Number of phases: single phase
Mounting method: built-in (panel mounted)
Blocking: no
Degree of protection: IP20
Operating temperature range: -30...+55 °C

Available current loads

Models are available in different current ratings:

10 A, 16 A, 25 A, 32 A, 40 A, 63 A, 100 A, 125 A, 160 A, 200A, 250A, 315A, 400A
