Frequency counter DIN frequency meter digital 1-400Hz panel meters
- Regular price
- €40,12
- Regular price
-
- Sale price
- €40,12
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

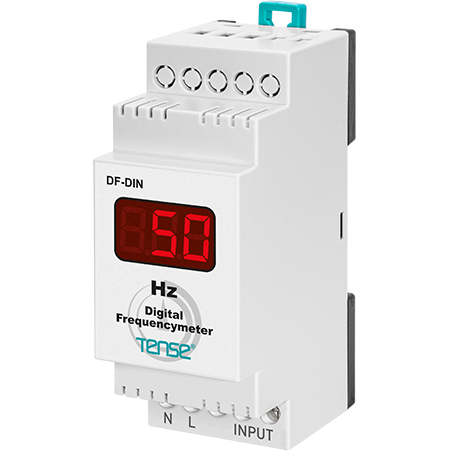

DF-DIN TENSE Frequency Meter - True RMS
Particularly accurate True RMS class frequency meter for DIN rail installation.
The DF-DIN is designed to monitor the frequency range (from 1 Hz to 400 Hz) between phase and phase or phase and neutral conductor. The instrument is used to control frequency stability in single-phase and three-phase systems, which is particularly important for industrial equipment, generators, transformers and power systems.
With a three-digit LED display, the frequency meter provides a clear and fast data display. The compact housing, easy installation and high accuracy make the Tense DF-DIN the optimal solution for panel mounting.
Areas of application
-
Electrical switchboards
-
Industrial switchboards
-
Backup power systems
-
Generator units
-
Frequency control in laboratories and test facilities
Technical specifications
-
Operating voltage: 140-280 VAC
-
Operating frequency: 50/60 Hz
-
Operating power: <3 VA
-
Operating temperature: -20 °C ... +55 °C
-
Display: 1 × 3 LEDs
-
Measuring range: 1 Hz - 400 Hz
-
Connection: terminal block
-
Cable diameter: 2.5 mm²
-
Weight: 135 g
-
Operating height: <2000 m
-
Mounting: on DIN rail
