Vendor: TENSE

Filling Level Controller, Discharge Switch Well Level Gauge SSR-05

Barcode: SSR-05
€30,56
€30,56
excl. VAT: €25
30 in stock

Frequently bought together

de06e037dbc494e38b025e8b975bdb5e

Float level switch for clean water (filling, draining), NO+NC, PVC  – 1.6 m

€10,92
€10,92
  • Description
  • Manuals
  • Payment methods
  • Warranty

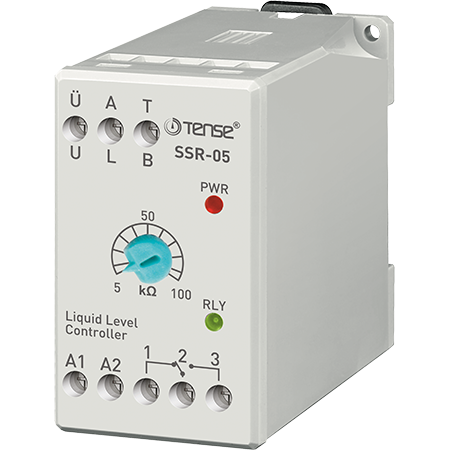

SSR-05 liquid level control relay - TENSE

Product description

The SSR-05 relay is designed for monitoring the liquid level in wells, tanks, reservoirs or pits.
Provides protection for centrifugal pumps against dry running or lack of water that could damage hydraulic components and cause the pump to overheat.

The device is suitable for:

  • Domestic and industrial water pumps (surface and submersible).

  • Pump control for tank filling

  • Water leakage signaling and pump shutdown

The relay uses 2 or 3 level sensors, allows adjustment of sensor sensitivity and provides LED indication of water level.

Main functions

  • Protection of pumps against dry running

  • Monitoring water levels in tanks, reservoirs or wells

  • Adjustable sensitivity of level sensors

  • LED water level indication

  • Clamp connection for easy installation

Technical parameters

  • Rated voltage: 220 V AC

  • Operating range: 170-260 V AC

  • Operating frequency: 50/60 Hz

  • Operating Power: < 3 VA

  • Operating temperature: -10 °C ... +50 °C

  • Connection: terminal

  • Dimensions: 44 × 75 × 85 mm

  • Weight: 250 g

Recommended accessories

  • Level sensors (2 or 3 depending on configuration)

  • 2A circuit breaker to protect input and output channels (2 pieces)

Application

  • Automatic switching on and off of pumps

  • Tank and reservoir filling control

  • Water shortage signalling and pump protection

  • Ideal for domestic and industrial applications
