DJ-V96T Panel-mounted digital three-phase voltmeter for AC
- Regular price
- €49,00
- Regular price
-
- Sale price
- €49,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

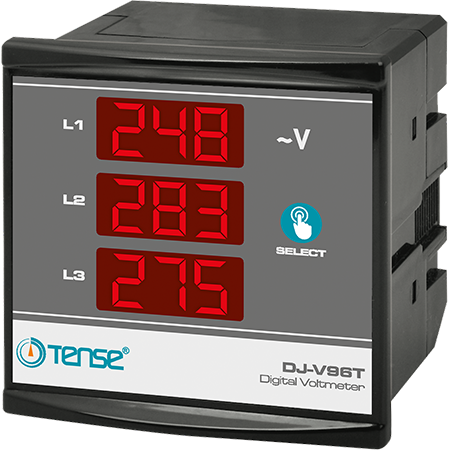

Three-phase digital panel voltmeter TENSE DJ-V96T
Product Description:
The DJ-V96T digital panel voltmeter is designed for simultaneous measurement of voltage on three phases of alternating current. It can monitor both phase-to-null conductor (L-N) and phase-to-phase (L-L) voltages, and also displays the phase sequence. The display mode is selected using the SELECT button on the front panel.
Working principle:
-

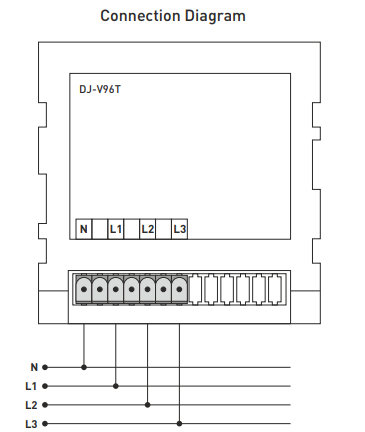

Displays the voltage at inputs L1, L2, L3 when power is applied.
-
Pressing the SELECT button switches the display to the phase voltages L12, L23, L31 and then to the phase sequence.
-
Displaying L1, L2, L3 from top to bottom indicates the correct phase sequence; displaying L1, L3, L2 indicates the incorrect phase sequence.
Technical specifications:
| Parameter | Value |
|---|---|
| Operating voltage (Un) | 140-300 VAC |
| Operating frequency | 50/60 Hz |
| Power consumption | <4 VA |
| Operating temperature | -20 °C ... +55 °C |
| Measurement accuracy | ±1 % |
| Measuring range L-N | 5-300 V AC (min. 140 V at L1) |
| Measuring range L-L | 5-500 V AC |
| Display | 3×3 digits, height 14 mm |

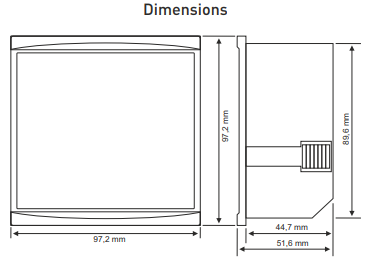

| Mounting hole dimensions | 91×91 mm |
| Connection type | Plug-in connector |
| Weight | ≤300 g |
| Operating altitude | <2000 m |
| Cable diameter | 1.5 mm² |
| Installation | On front panel |
Application:
-
Voltage monitoring in three-phase electrical distribution systems
-
Phase sequence monitoring
-
L-N and L-L voltage monitoring in industrial and residential installations
Benefits:
-
Clear and accurate display of voltage on all phases
-
Easy switching between display modes
-
Quick installation in a standard panel (91×91 mm)
