Vendor: TENSE

DJ-V - built-in digital panel voltmeter for AC voltage 1-500 V, panel meters

Barcode: DJ-V48
€33,96
€33,96
excl. VAT: €28
Low stock: 2 left
Height x Width: 48 mm x 48 mm
  • Description
  • Manuals
  • Payment methods
  • Warranty

Single Phase Digital Voltmeter TENSE DJ

Description

TENSE DJ series digital voltmeters are designed for continuous AC voltage monitoring in single-phase and three-phase electrical systems. They provide high accuracy and reliability, making them ideal for use in electrical switchboards and control panels.

The device displays voltage in phase or between phase and zero, allowing continuous monitoring and prevention of system faults.

Advantages of the TENSE DJ series

  • Wide measuring range: 1 V - 500 V, suitable for various systems

  • High accuracy: ±1 % measurement error

  • Bright LED displays:

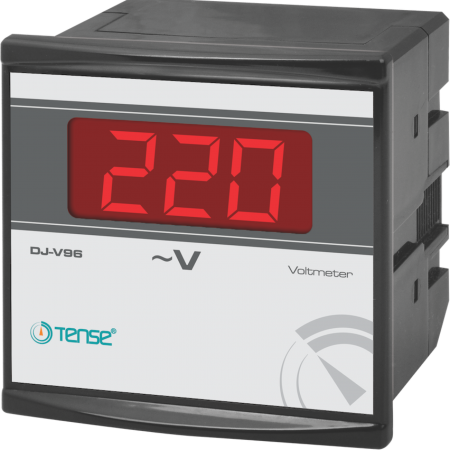

    • DJ-V96: 20 mm, 3-digit display

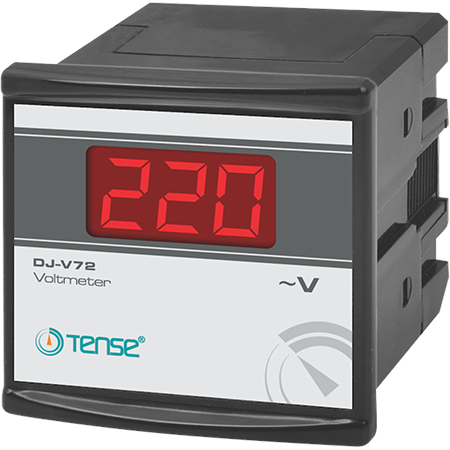

    • DJ-V72: 14 mm, 3-digit display

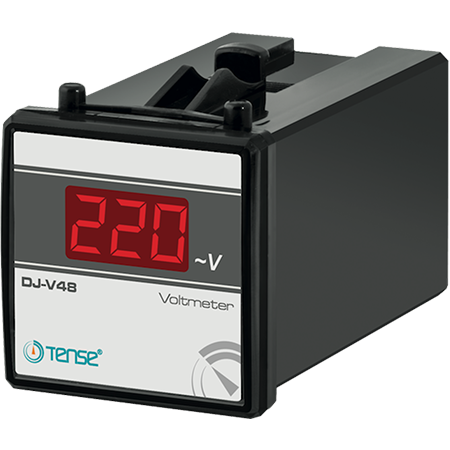

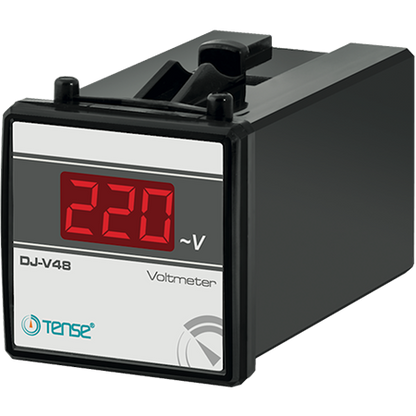

    • DJ-V48: 9 mm, 3-digit display

  • Low power consumption: <6 VA

  • Easy connection: Standard screw terminals, wires up to 1.5 mm²

  • Reliable operation: Operating temperature 0 °C - +55 °C, IP20 protection, altitude up to 2000 m

Technical specifications

ParameterValue
Operating voltage (Un)140 - 260 V AC
Operating frequency50/60 Hz
Measuring voltage range1 - 500 V AC
Power consumption<6 VA
Mounting typeFront panel mounting
Protection classIP20
Operating temperature0 °C ... +55 °C
Conductorsup to 1.5 mm²

Available models

  • DJ-V96 - 20 mm display

  • DJ-V72 - 14 mm display

  • DJ-V48 - 9 mm display
