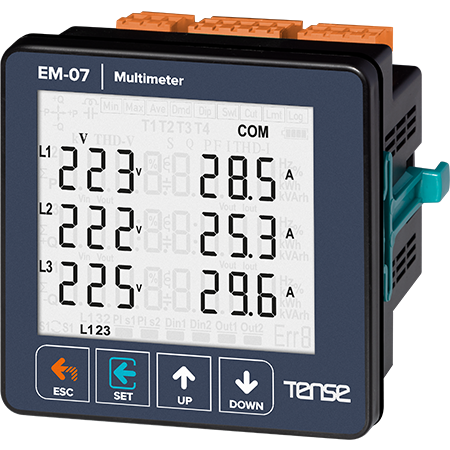

Digital Panel Multimeter - TENSE (Turkey)

Product description:
Multifunctional digital panel meter designed for accurate monitoring of three-phase network parameters. This multimeter allows indication of voltages, currents, frequencies and total power. It has a relay output and supports ModBus RTU communication. It is ideal for industrial switchgear, power systems, monitoring and protecting network parameters.

Main features:

• RS485 Modbus RTUcommunication (1200-38400 bps).

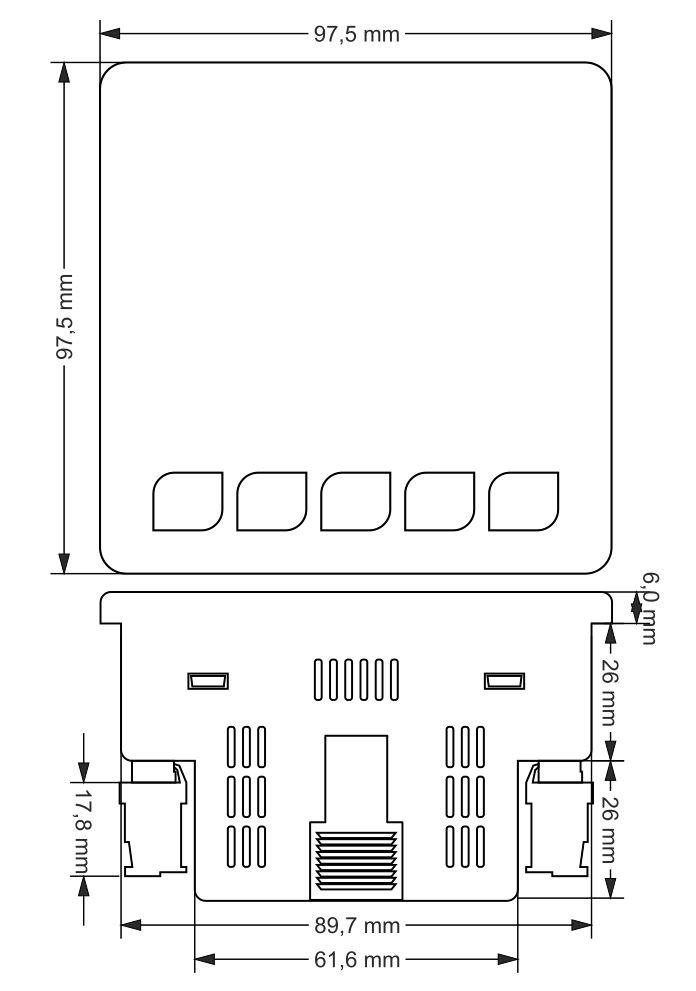

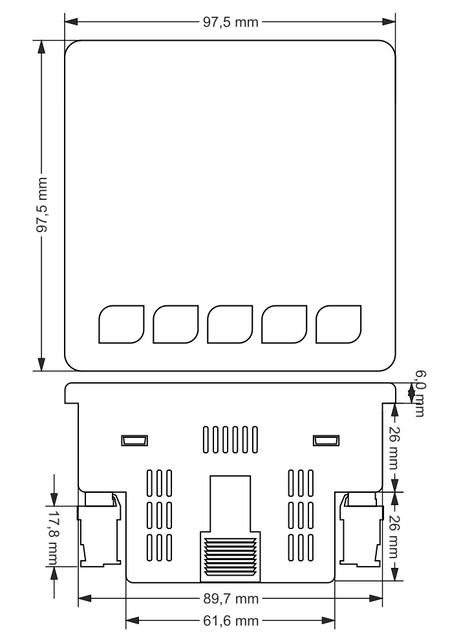

• Display: Glass LCD, 71.5 x 61.5 mm

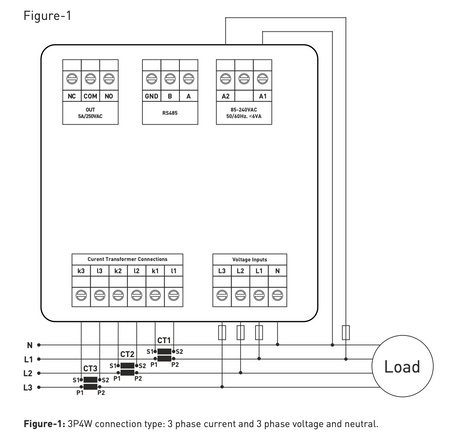

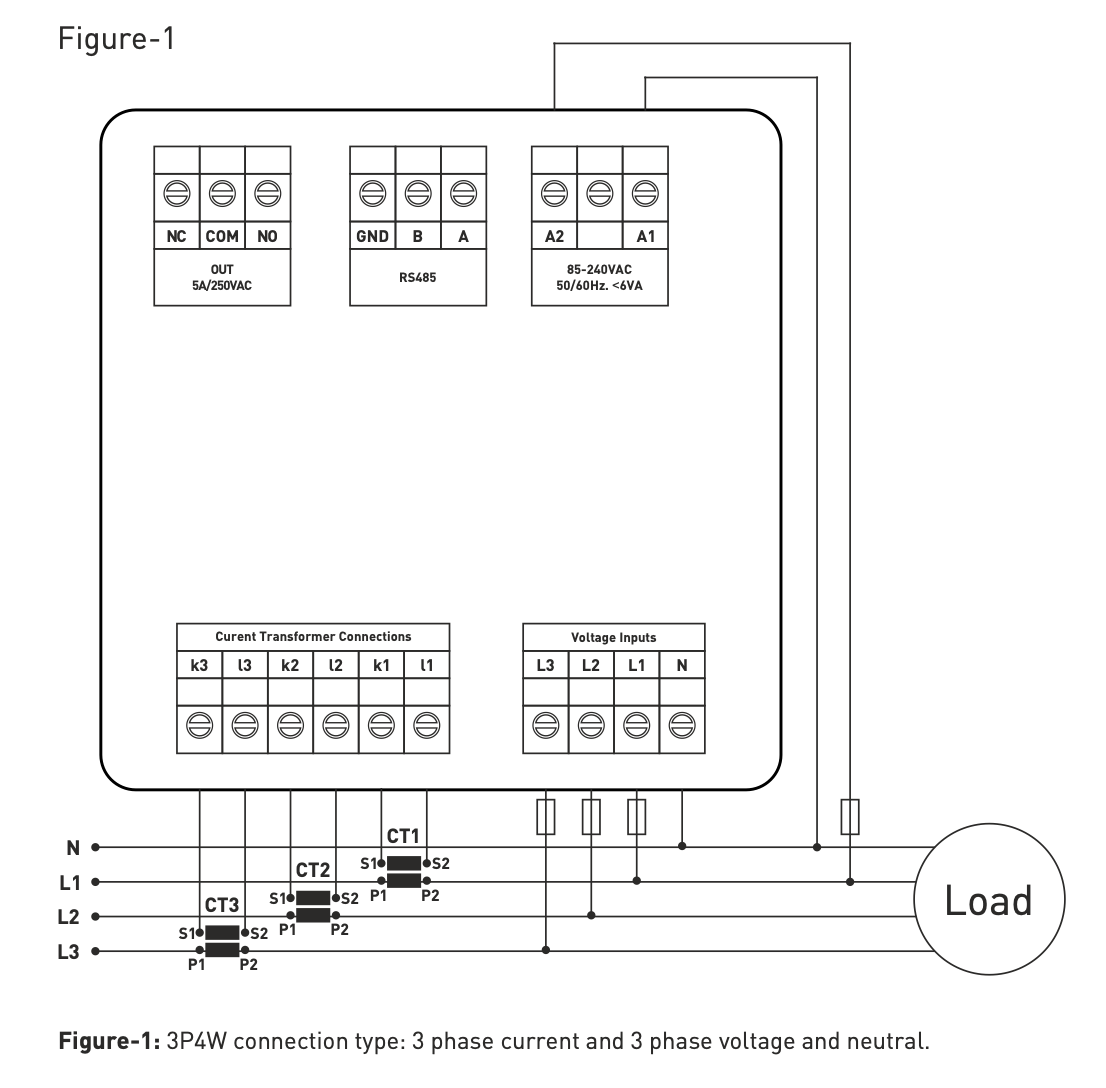

• Phase: 3-phase voltage transformer and 3-phase current transformer

Measured values:

• Voltage: V1, V2, V3, V12, V23, V31

• Current: I1, I2, I3

• Apparent power: S1, S2, S3

• Frequency: F1, F2, F3

Other measurement functions:

• Minimum, maximum, average and desired values of voltage, current and power

• Adjustable high/low voltage, current and frequency protection

• Phase sequence indication

• Phase-neutral or phase-to-phase protection

• Relay output: 1x relay output for switching or signalling

• Security: password-protected menu, measurement reset option

• Use with current measuring transformers: 60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5 - available in e-shop

Usage:

• Industrial switchgear

• Monitoring and protection of three-phase network parameters

• Monitoring of phase sequence and network stability

• Recording and reporting of measured values via ModBus RTU
