Digital Current Indicator Three Phase Panel Ammeter Three Phase Built-in

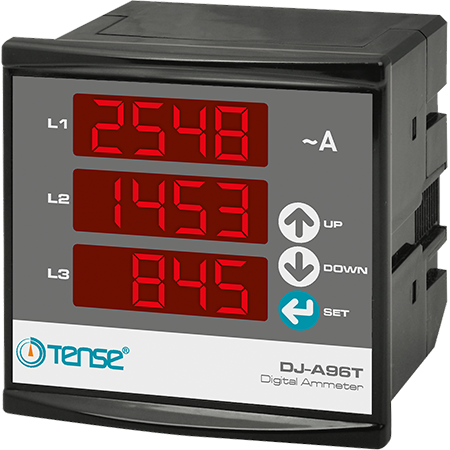

DJ-A96T - Three Phase Digital Panel Ammeter

The DJ-A96T three-phase digital ammeter is designed for accurate current monitoring in three-phase systems. It can display the instantaneous load on each phase L1, L2, L3 using external current transformers (CT). The device offers a clear display, simple setup and reliable operation.

Main features

• Current measurement in three-phase systems

• Separate reading for phases L1, L2, L3

• Measurement with external current transformers

• Easy adjustment of CT ratio

• Large and legible display - 3×4 digits, height 14 mm

• Compact panel design

Technical parameters of the ammeter

• Supply voltage: 230 V AC

• Device consumption: < 4 VA

• Current measurement range: 0.1...5.5 A

• CT range supported: 5/5 A to 5000/5 A

• Measurement accuracy: ±2%

• Display: LED, 3×4 digits, height 14 mm

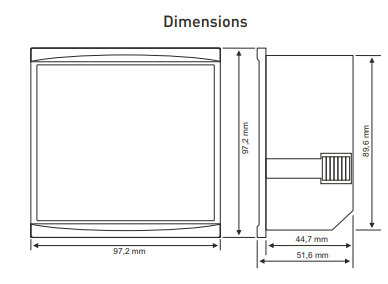

• Dimensions: 97.2 × 97.2 mm

• Cut-out dimension: 91 × 91 mm

• Depth: 45 mm

• Package does not include current transformers (can be purchased separately)

Operating principle and settings

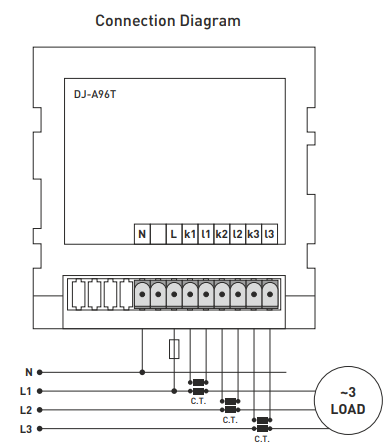

1. Connect the device according to the wiring diagram.

2. Connect the current transformers according to the expected current in the system (conversion xxxx/5 A).

3. Connect the CT leads to the "kx" and "lx" terminals . The CT output must not exceed 5 A.

4. After switching on the power supply, hold the "Menu" button for 2 seconds.

5. Use the Up/Down buttons to adjust the conversion of the CTs used.

6. Save the settings by long pressing the "Menu" button .

7. When the load is connected, the ammeter starts to measure and display the current.

Note: Current transformers must always be grounded for safety reasons.

Technical characteristics of the solid-state output relay

(This time, the listed parameters correspond to the SSR - if it is to be separate, I can split it.)

• Relay type: solid state

• Control voltage (input): 3...32 V DC

• Switching voltage: 24...480 V AC (not suitable for motors)

• Switching voltage drop: < 3 V

• Trigger current: 5 mA

• Coil voltage: 3...32 V DC

• Maximum switching current: 25 A

• Insulation strength: 2500 V AC

• Switching method: switching on when current passes zero-cross
