Vendor: TENSE

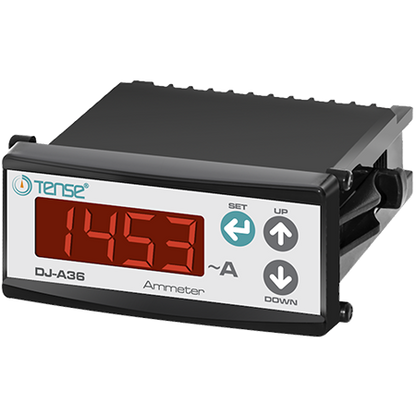

Digital built-in panel ammeter for measuring AC indirect currents X/5

Barcode: DJ-A36
โ‚ฌ31,20
โ‚ฌ31,20
excl. VAT: โ‚ฌ26
Low stock: 3 left

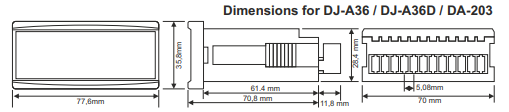

Height x Width: 36 mm x 78 mm
  • Description
  • Manuals
  • Payment methods
  • Warranty

TENSE - Digital built-in panel ammeters for indirect AC current measurement X/5

Models: DJ-A48, DJ-A36, DJ-A72, DJ-A96

TENSE's DJ-A series digital panel ammeters are designed for indirect AC current measurement using current transformers with a standardized 5 A (X/5) secondary output. The instruments provide accurate and fast measurement of current loads in residential, commercial and industrial electrical systems.

Main features and functions

  • Indirect AC current measurement (X/5) - compatible with any current transformer with a 5 A secondary.

  • Digital LED display - clear and fast display of actual current value.

  • High accuracy - stable measurement suitable for load control and energy monitoring systems.

  • Low self-consumption - suitable for long-term operation in switchgear.

  • Easy panel mounting - each model is adapted to a different panel cut-out size.

  • Protection and indication - resistance to overload, misconnection and interference.

Available models and dimensions

Model Dimension (front panel) Mounting hole Description of use

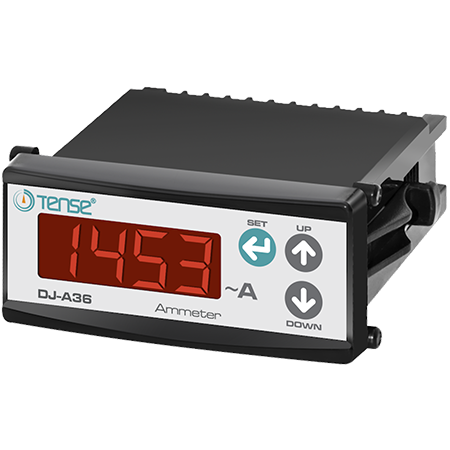

DJ-A36 36 ร— 36 mm 33 ร— 33 mm Small enclosures, compact installation

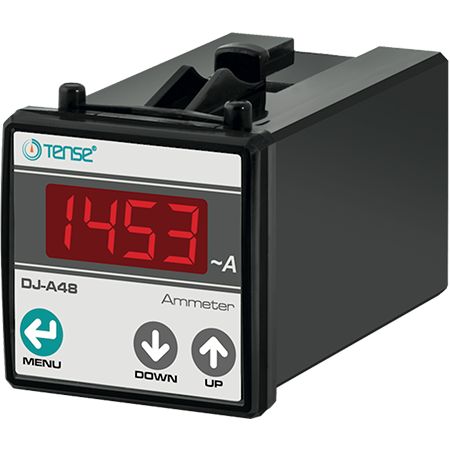

DJ-A48 48 ร— 48 mm 45 ร— 45 mm Universal use in standard enclosures

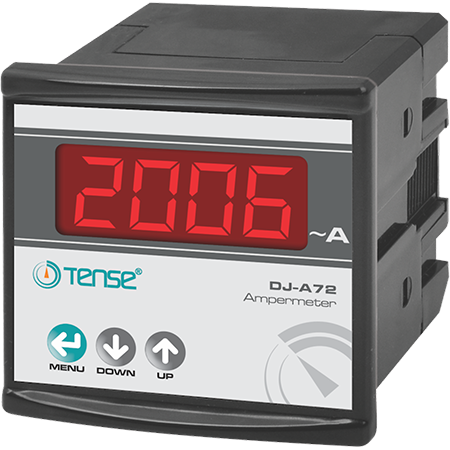

DJ-A72 72 ร— 72 mm 68 ร— 68 mm Industrial applications, improved readability

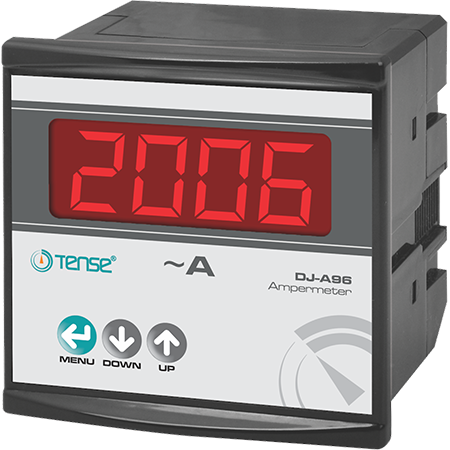

DJ-A96 96 ร— 96 mm 92 ร— 92 mm Large cabinets, highest display visibility

Typical applications

  • Switchboards and distribution panels

  • Industrial and commercial installations

  • Monitoring power consumption and load on electrical circuits

  • Protection, metering and automation systems

  • Measurement of currents through X/5 current transformers

Advantages of the TENSE DJ-A series

  • Compatible with any 5 A transformer

  • Wide range of mounting dimensions

  • Simple operation and installation

  • Accurate and stable measuring system

  • Long service life and high reliability
