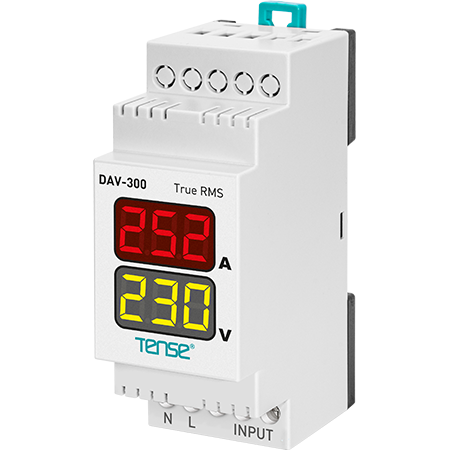

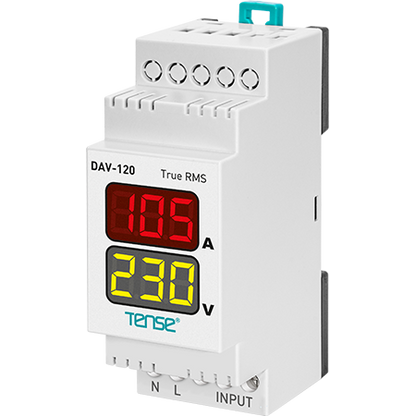

DAV-DIN digital ammeter and voltmeter 150-260V panel meters
- Regular price
- €49,00
- Regular price
-
- Sale price
- €49,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty
Digital Multimeter with Current Transformer 100/250 A 150V - 260V AC - TENSE
Description
The TENSE digital multimeter combines ammeter and voltmeter in one device. It is designed for continuous monitoring of AC current, load and corresponding phase voltage.
The instrument uses the supplied 100/250 A 150V - 260V ACcurrent transformer . . Connect the current transformer leads to the input terminals of the instrument. The instrument adjusts the displayed values according to the connected transformer - do not combine current transformers of different makes and models.
When the instrument is energized, the display shows:
-
Current drawn by the load
-
Voltage between phase and neutral (connected to terminals A1 and A2)
Measurement range
| Measurements | Range |
|---|---|
| Voltage | 150 - 260 V AC |
| Current | 1 - 100 A |
Technical characteristics
| Parameter | Value |
|---|---|
| Operating voltage (Un) | 140 - 270 V AC |
| Operating frequency | 50 / 60 Hz |
| Power consumption | <6 VA |
| Measurement accuracy | ±1 % (V), ±3 % (A) |
| Operating temperature | -20 °C ... +55 °C |
| Connection type | Clamps |
| Display | 2 × 3 digits, height 9 mm |
| Weight | 220 g |
| Mounting | DIN rail |
| Connecting cable diameter | 2.5 mm² |
Advantages
-
Combination of voltmeter and ammeter in one instrument
-
Continuous monitoring of AC current and voltage
-
Easy DIN rail mounting
-
Accurate measurement thanks to the supplied current transformer
-
Compact and lightweight design
