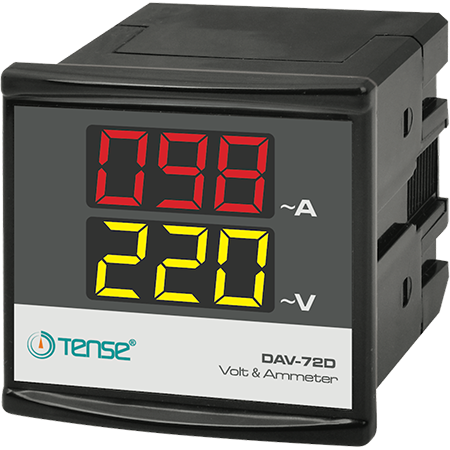

Digital Panel Multimeter 72x72 mm - TENSE (DAV-72D)

Product description:
The DAV-72D is a 1-phase digital combined voltmeter-ammeter, designed for continuous monitoring of the AC voltage between phase and neutral conductor and the load current drawn, measured by an external current transformer (CT-120, included). The instrument is suitable for electrical switchboards, manufacturing plants and power distribution or monitoring systems.

Principle of operation and use:

• Connection to the phase and neutral conductor to be measured via the voltage measurement terminals.

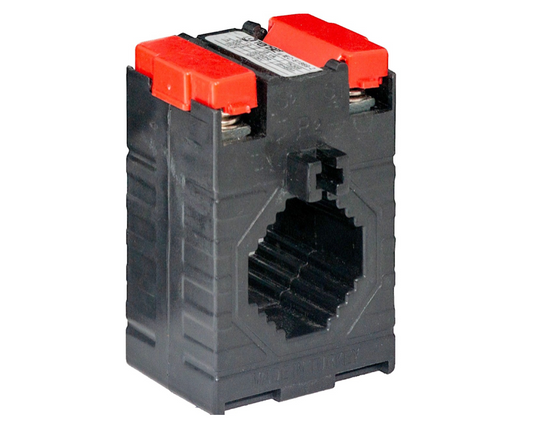

• Current measured via an external CT-120 current transformer, whose secondary conductors connect to the K and L terminals on the rear of the instrument.

• When power is applied, the following is displayed:

  • Actual phase voltage (V)

  • load current (A)

Installation and setup:

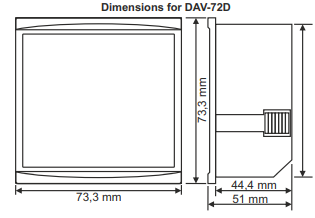

• Front panel mounting (cutout 68 × 68 mm)

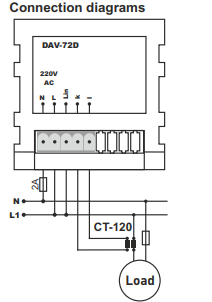

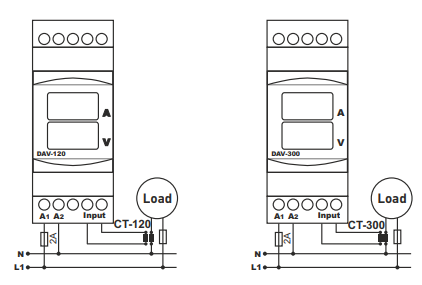

• CT-120 wiring as shown in the diagram, load wire routed through the transformer

• Do not use other current transformers - the instrument is calibrated specifically for the CT-120

Technical specifications:

• Operating voltage: 140-270 VAC.

• Mains frequency: 50/60 Hz

• Displayed voltage range: 5-300 V AC

• Measured current range: 1-100 A (via CT-120)

• Accuracy:

  • Voltage: ±1%

  • Current: ±3 %

• Display: 2 line, 3 digits, character height 14 mm

• Instrument power: <6 VA

• Operating temperature: -20 °C to +55 °C

• Altitude: up to 2000 m

• Connection: plug-in terminals, cable cross-section up to 1.5 mm²

• Mounting: panel, front-side

• Weight: up to 220 g
