Vendor: TENSE

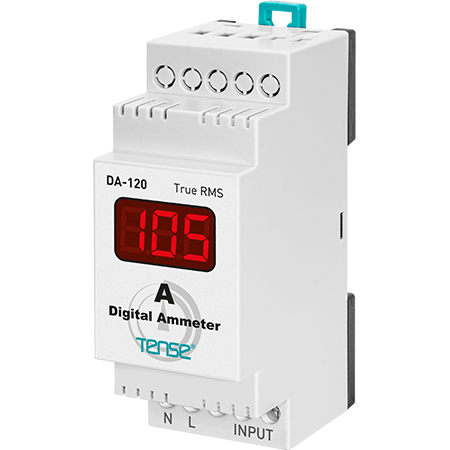

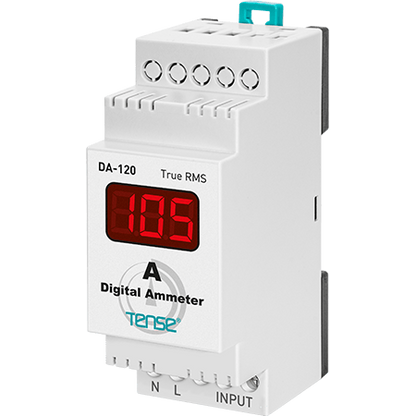

DA-DIN Digital ammeter for AC 100 or 250 amps

Barcode: DA-120
€40,12
€40,12
excl. VAT: €33
Low stock: 5 left
Mark: 100A
  • Description
  • Manuals
  • Payment methods
  • Warranty
Single-phase ammeter with 120/5 current transformer, high-precision True RMS value, DIN rail mountable, range up to 120 A, Tense Measurement range up to 120 A, 3-digit display, 50/60 Hz operating frequency range DA-120, for use with the CT-120 current transformer supplied with the instrument. Connect the current transformer leads to the instrument input terminals. The instrument values are adjusted based on the current transformer. Therefore, do not combine current transformers of different makes and models. When the instrument is energized, the display shows the current drawn by the load.

Download on

User manual

Online card payment - after completing the order, you will be redirected to the payment gateway, payment confirmation will be sent to your email

COD - you pay the payment according to the payment order to the driver of the transport company

By bank transfer- you will receive an advance invoice to your e-mail no later than the next working day, on which you will find the account number that you will enter during payment.

On invoice - this payment option is available to partners who have signed a framework agreement with our company.

If you would like to use the last 2 methods, call our manager and he will give you instructions on how to receive an invoice with or without VAT.

The electrical equipment we supply meets high quality standards, has a 24-month warranty and meets all EU requirements.

We also have free shipping (for orders over 100 EUR), a flexible system of discounts and promotions. The technical knowledge and experience of our employees enable us to provide high-quality advice and, if necessary, offer alternatives to electrical products.

The electrical equipment we supply meets high quality standards, has a 24-month warranty, and complies with all EU requirements.

In case of a complaint, the return of goods is not charged.
