Vendor: OPAS

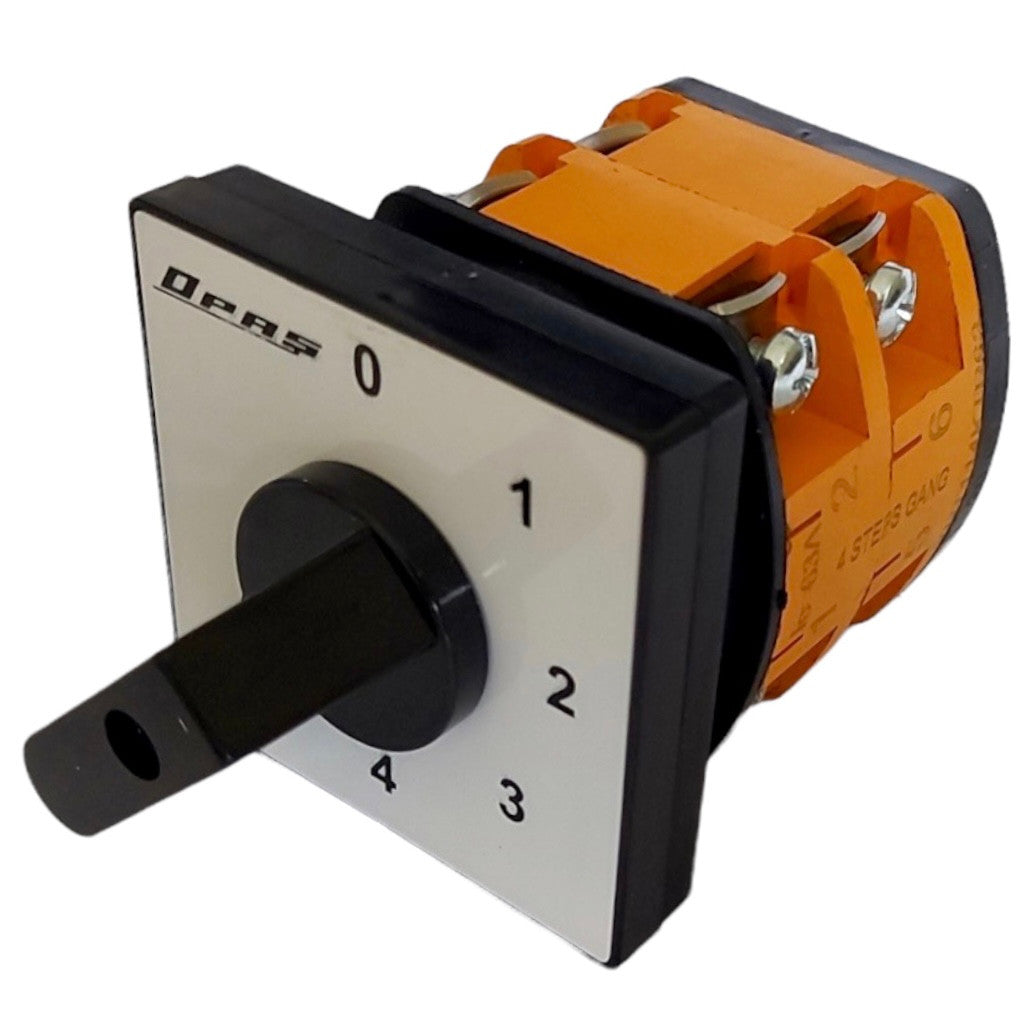

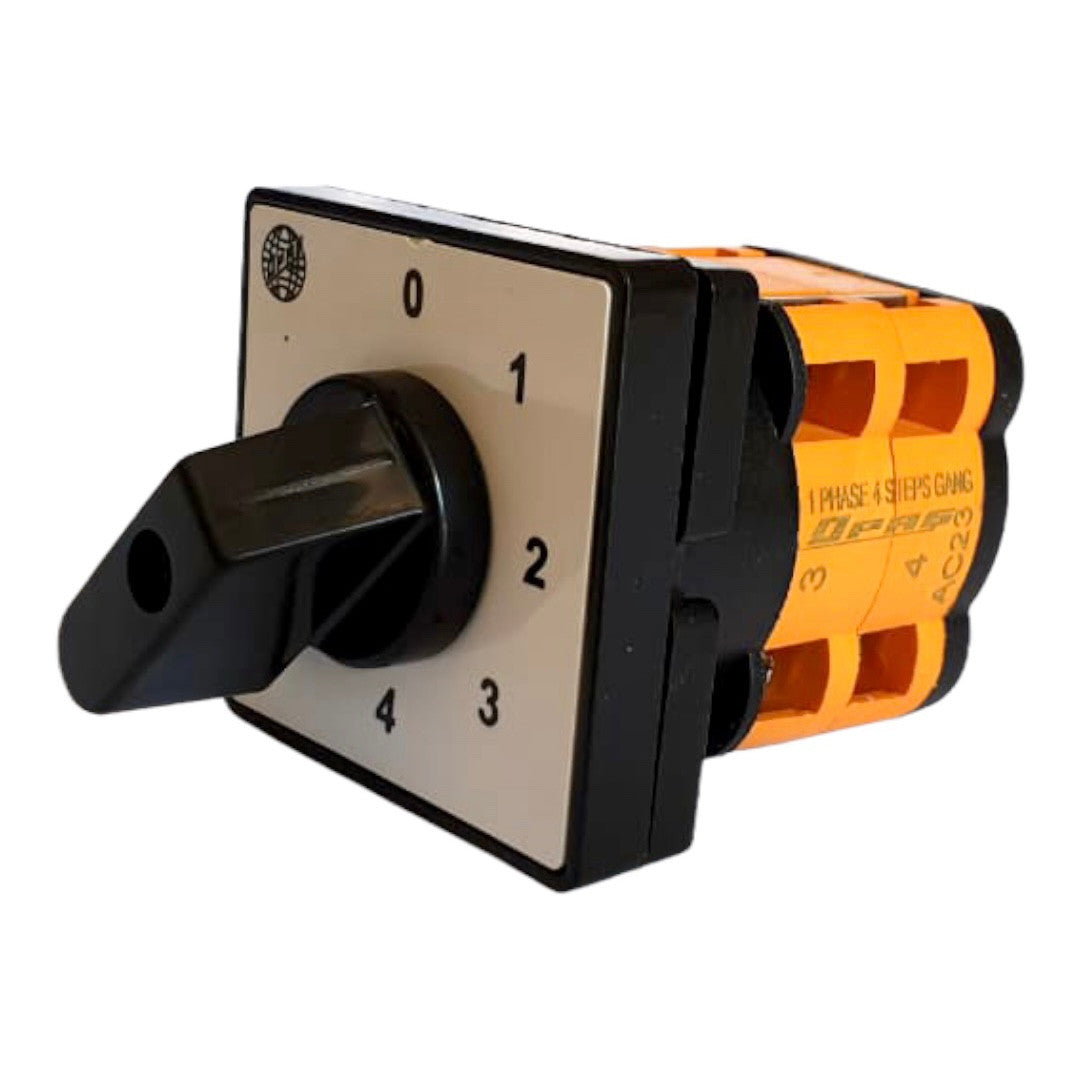

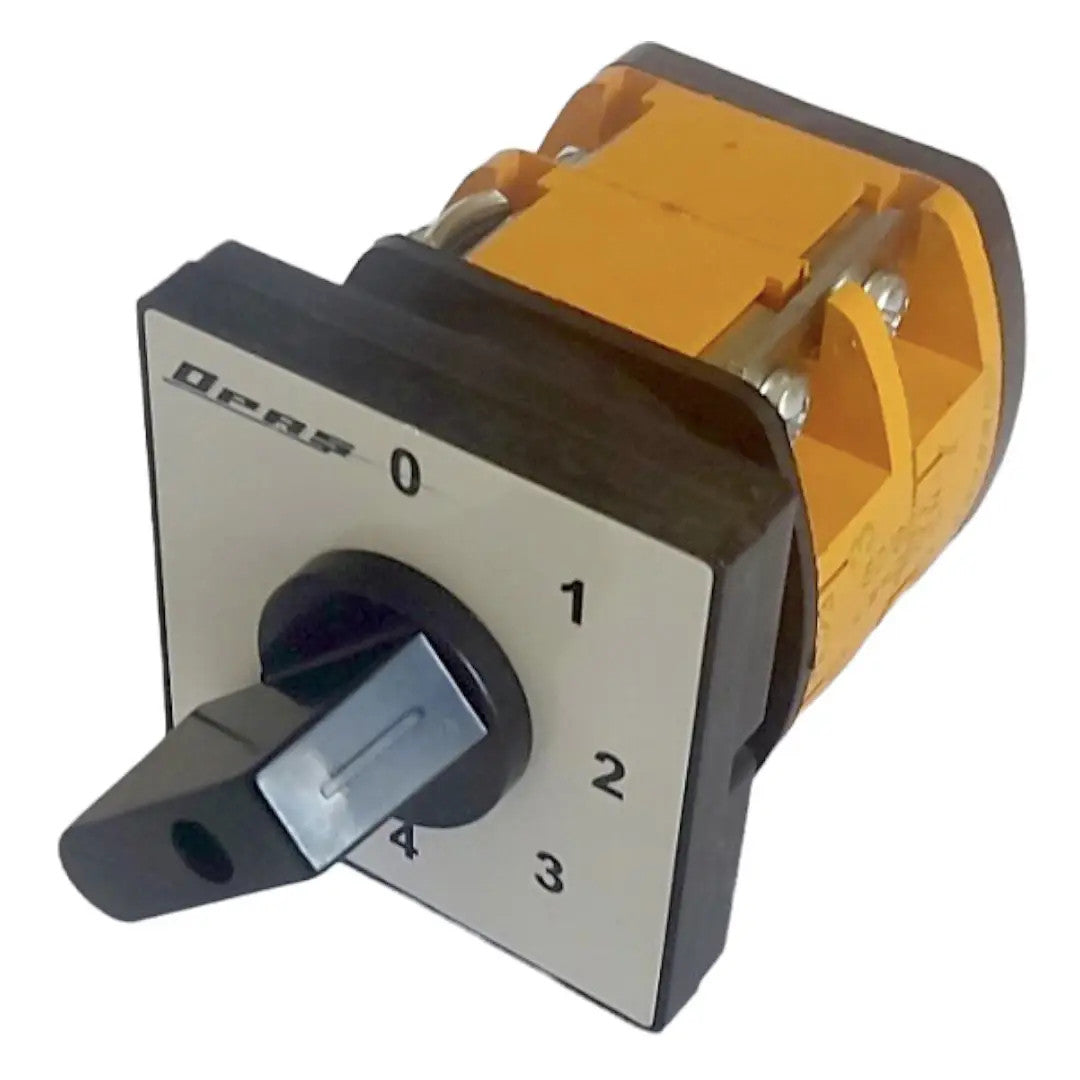

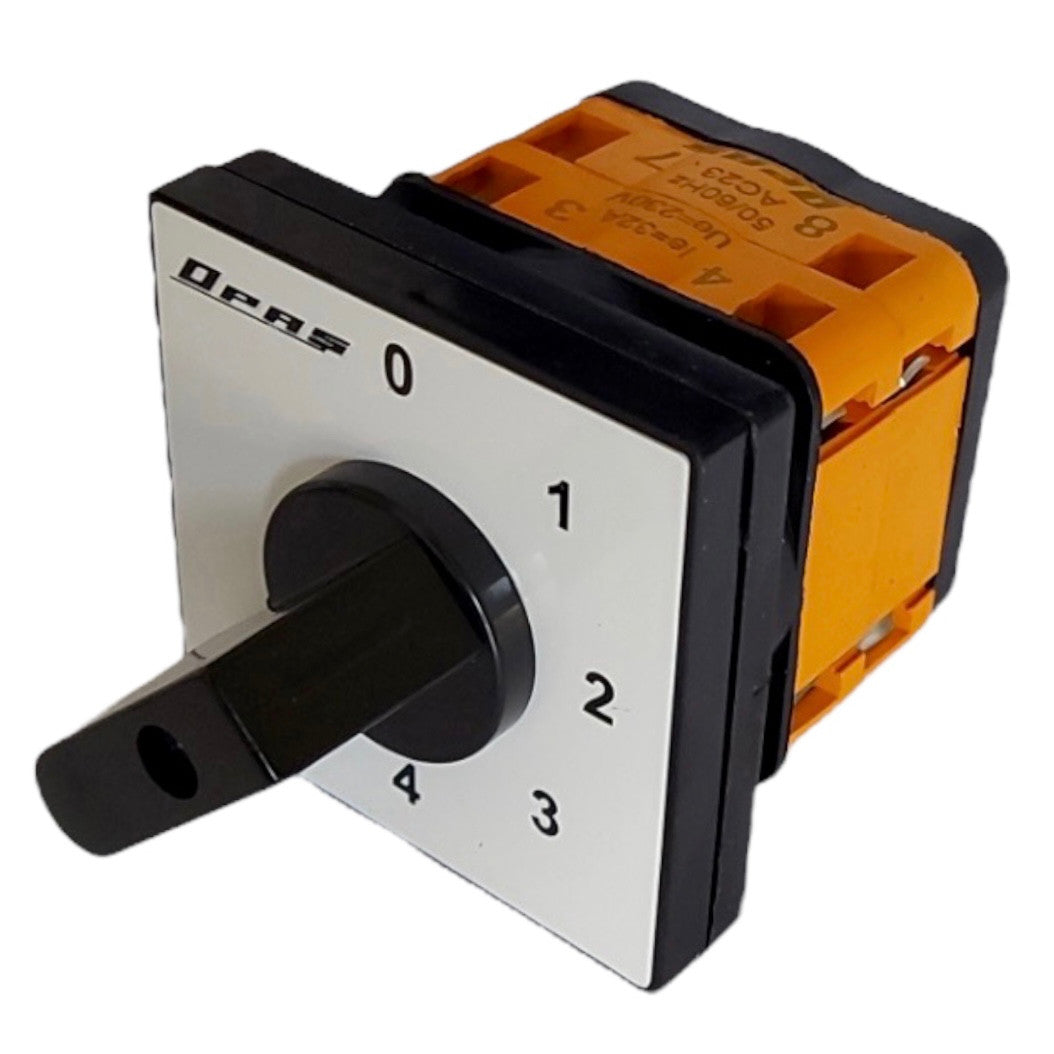

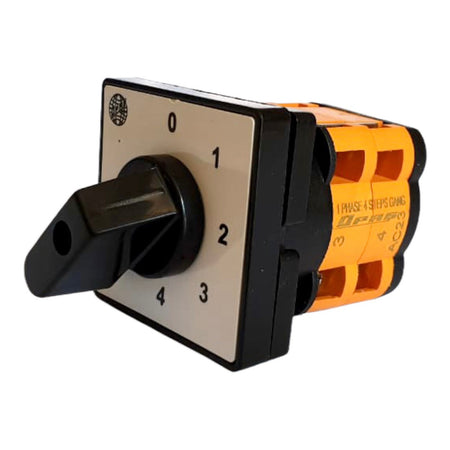

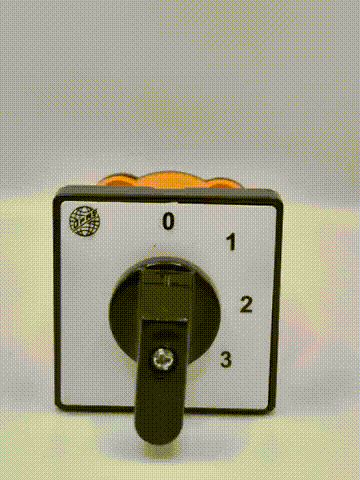

Commutator group 0-1-2-3-4 stages step cam packet switch

Barcode: YPT114KM16
Regular price
€19,62 €15,95 excl. VAT
Regular price
Sale price
€19,62 €15,95 excl. VAT
Low stock: 5 left
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
Number of poles: 1 pole
Mark: 16A
  • Description
  • Payment methods
  • Warranty

0-1-2-3-4 Batch Cam Switch - OPAŞ

Product Description

Batch switches are designed for manual switching of low voltage circuits.
They are used to create main and control circuits, switch on and off electric motors and other low power electrical equipment.

Switch Advantages:

  • Compact size

  • High electrical and mechanical resistance.

  • Multi-position control for different operating modes

Use of multi-position switch:

  • 0-1-2-3-4 scheme allows switching between different device modes (e.g. speed, temperature)

  • Ideal for sequential connection of three or four heaters of 1 kW each, 1 kW, 2 kW, 3 kW or 4 kW output can be created

Technical features

  • Design: cam

  • Device type: rotary switch

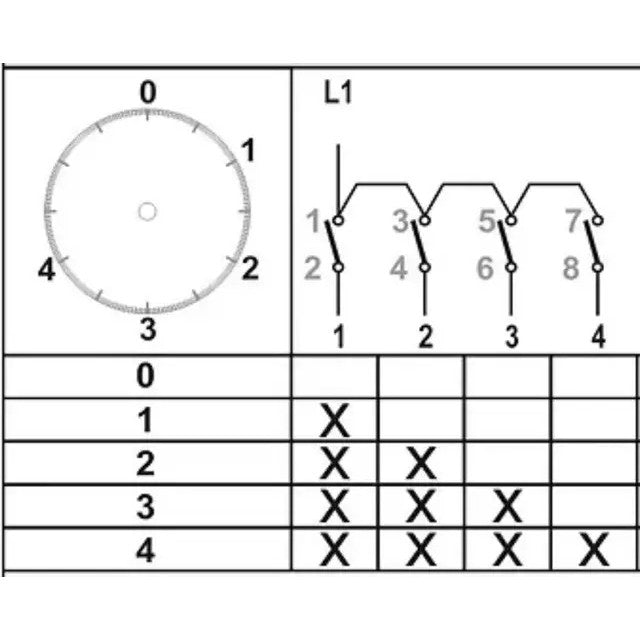

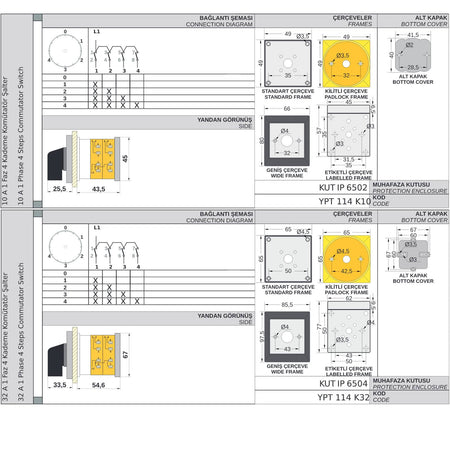

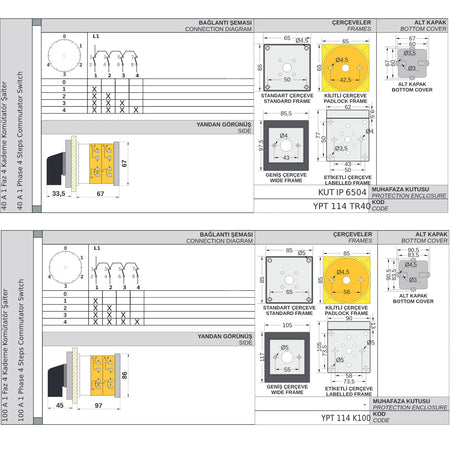

  • Switching scheme: 0-1-2-3-4

  • Number of poles: 1

  • Number of phases: single phase

  • Presence of blocking: No

  • Degree of protection: IP20

  • Operating temperature range: -30 to +55 °C

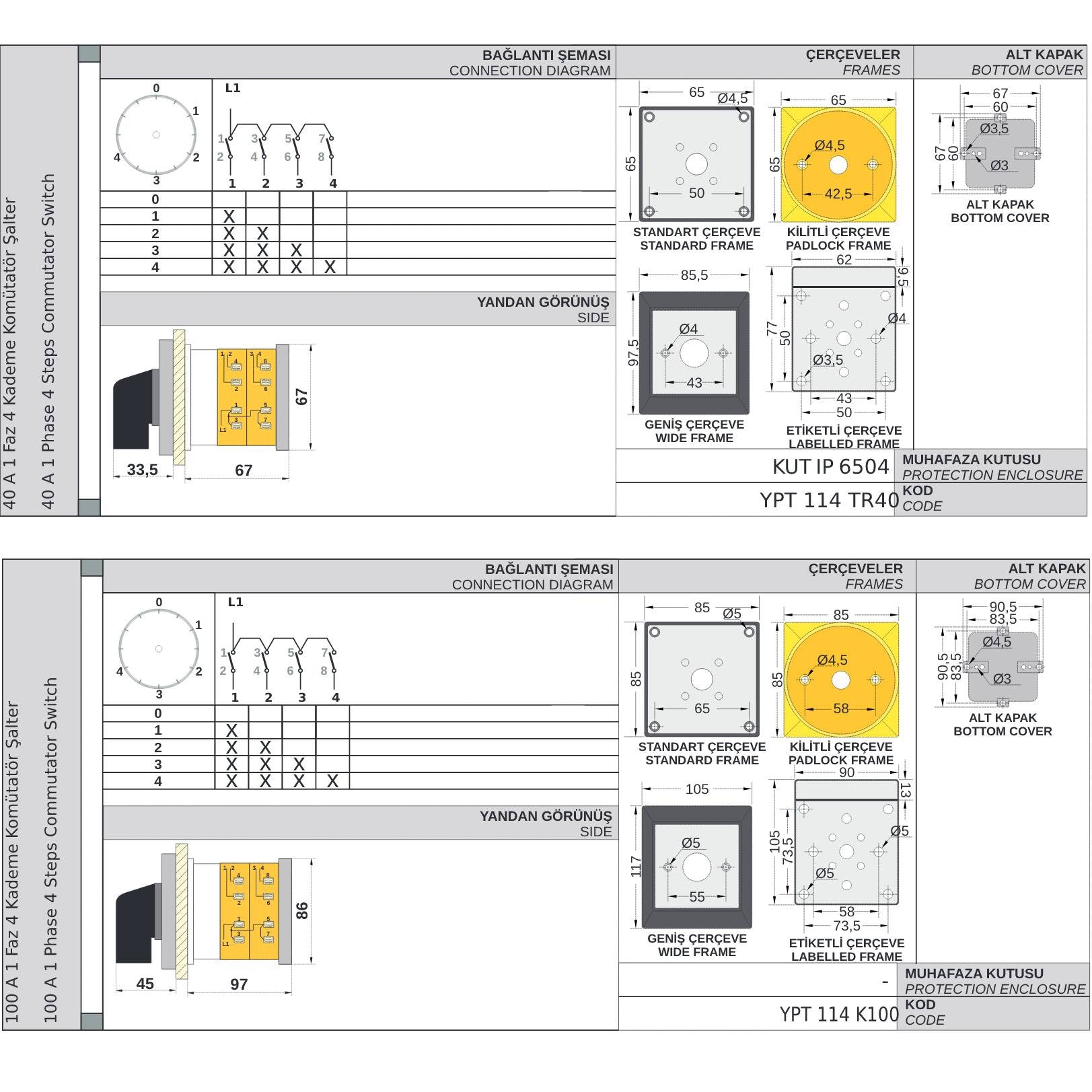

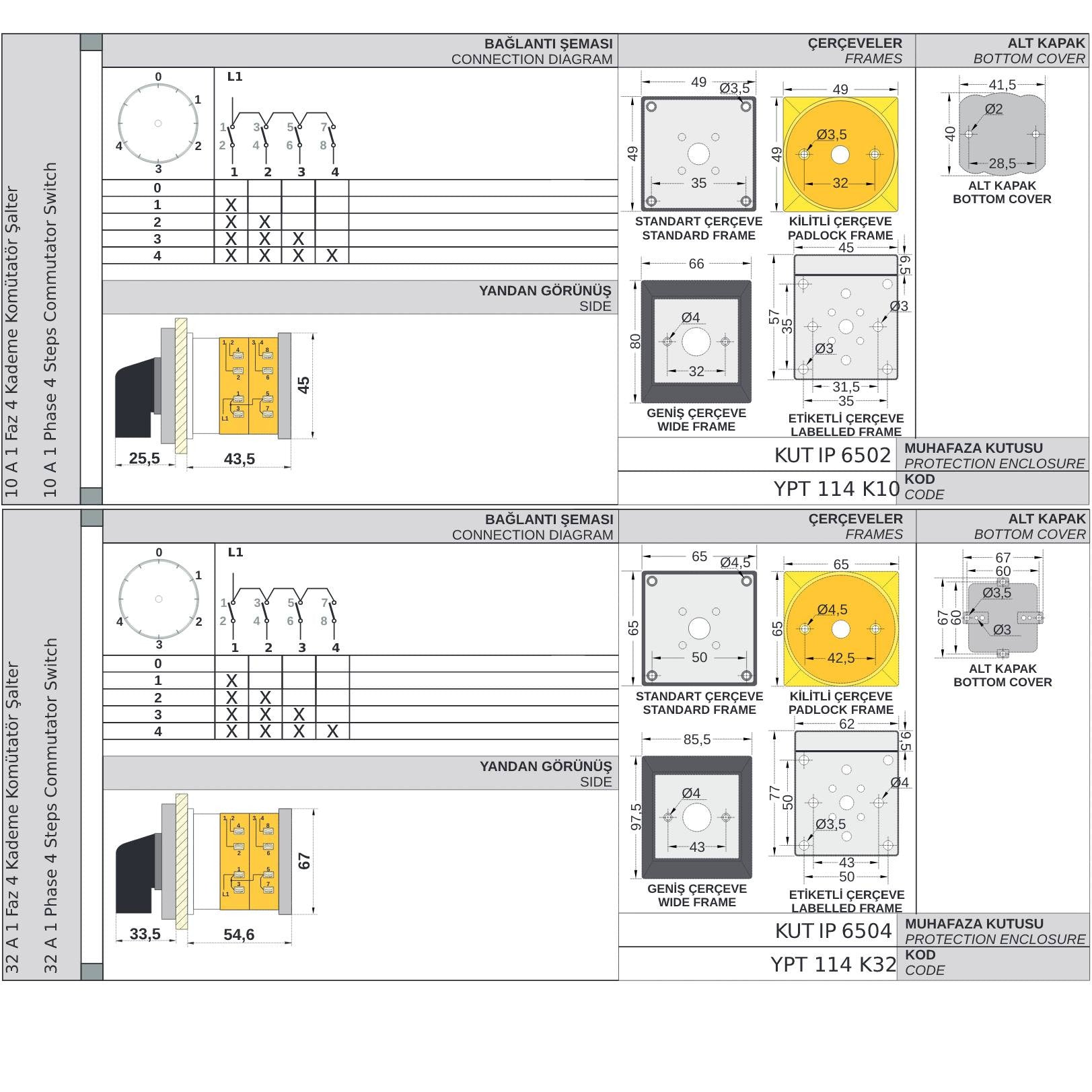

Variants by rated current

Number of polesRated current (A)
110, 16, 25, 32, 40, 63, 80, 100
