Bistable memory relay / Start-Stop relay, pulse pulse / Pulse switch
- Regular price
- €13,16
- Regular price
-
- Sale price
- €13,16
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

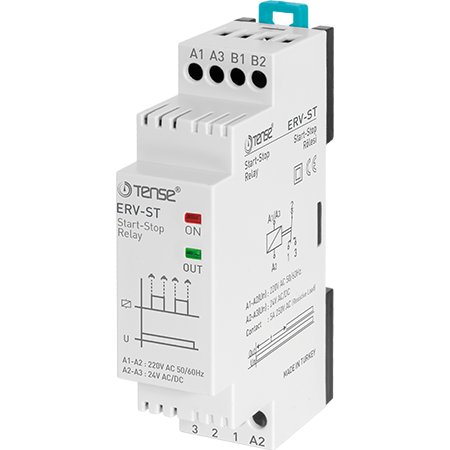

TENSE Bistable Electronic Pulse Relay (Start-Stop / Memory Relay), 150-260 V AC
Bistable electronic pulse relay from TENSE (Turkey) allows control of lighting or other devices from any number of locations using parallel connected pushbuttons. It is ideal for domestic installations, commercial buildings and industrial systems where simple pulse control is required without the use of conventional staircase or crossbar switches.
Description and features
The relay allows the device to be switched on or off based on a short pulse from a momentary (bell) button. An internal bistable mechanism ensures that the relay changes state after the button is pressed and remains in that state until the next pulse. This ensures simple and reliable control by one or more controllers in parallel.
A great advantage of this model is the increased safety - there is no need to supply 220/230 V mains voltage to the push button input. A simple short-circuiting of the button contacts is sufficient, which does not endanger the user or require the use of live wires at the point of control.
Advantages and features
Safe operation without high voltages at the buttons
The control inputs operate only on the closed circuit principle, eliminating the risk of electric shock.
Control from any number of locations
Parallel connection of any number of buttons allows you to replace cross and switch systems and greatly simplify wiring.
Saves wiring
Two-wire parallel connection of buttons eliminates the need for complex switch combinations.

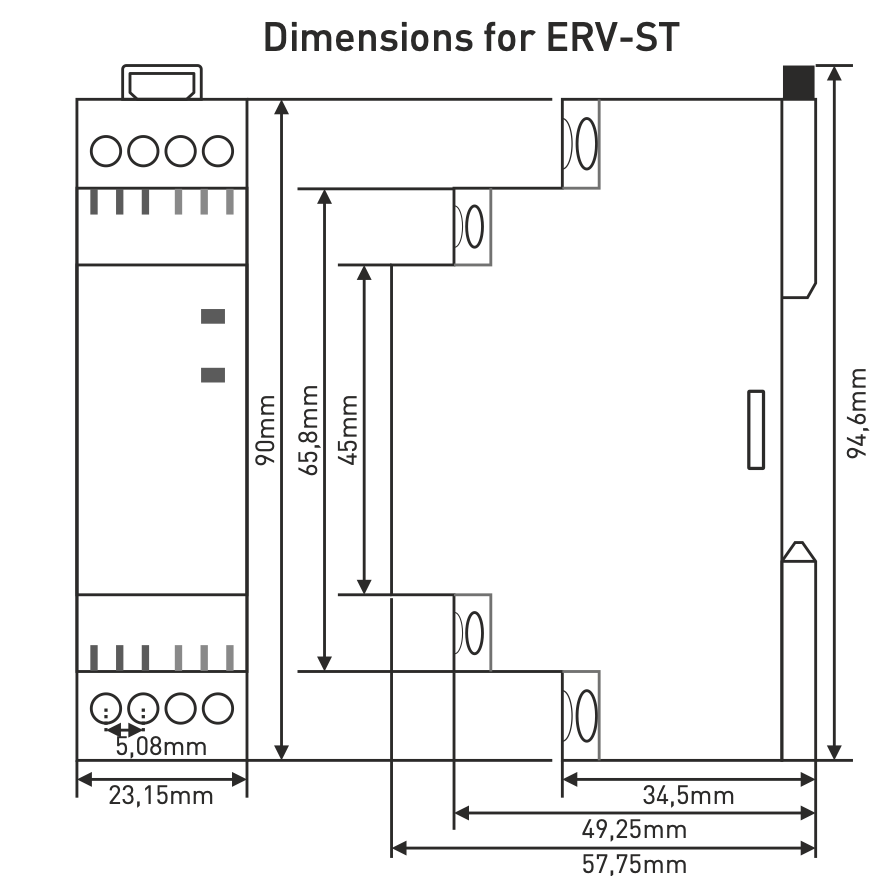

Compact size - 1 module
The relay does not take up much space and is easy to install in any home or industrial control panel.
DIN rail mounting 35 mm
Allows standardized quick mounting in switchboards.
Technical data
-
Type: electronic bistable impulse relay
-
Function: Start-Stop, memory relay
-
Power supply: 150-260 V AC, 50/60 Hz
-
Control: momentary push-buttons (pulse switching)
-
Contact: 1 switchingcontact (NO/NC)
-
Mounting: 35 mm DIN rail
-
Width: 1 module
Uživatelská příručka
https://files.principalelektrik.org/en%3A%20ERV-ST%2C%20ER-DG.pdf
