Bimetal cooling thermostat NO switching, range 0-60°C - temperature switches
- Regular price
- €9,76
- Regular price
-
- Sale price
- €9,76
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Payment methods
- Warranty

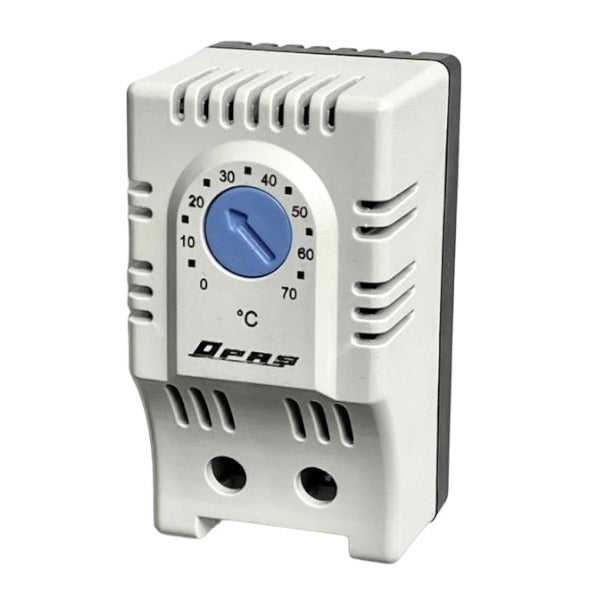

Bimetal cooling thermostat / temperature switch NO, switching, 0-60°C, bimetal from OPAŞ
Cabinet thermostat (temperature relay, temperature sensor, thermal relay, air temperature control relay) mechanical with built-in air temperature sensor for DIN rail installation for fan connection or signaling when temperature rises above set level, normally one open contact (NO contact) PTOT100 , 2p, screw terminal, bimetal thermostats by OPAŞ.
These thermostats are used in systems that maintain a set temperature using cooling elements such as fans or air conditioners. These systems are used to prevent overheating of equipment installed in electrical cabinets, ATMs, payment terminals and other equipment installed outdoors or in uncooled rooms.

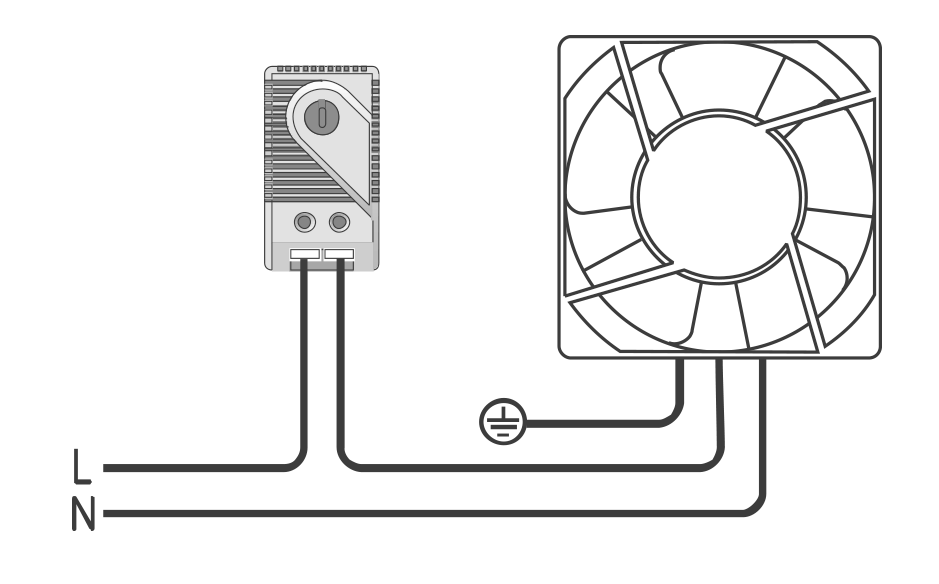

They are used to connect fans, coolers/air conditioners.
|
Characteristics |
PTOT100 |
|
Contact type |
NO |
|
Setting range |
0-60 °C |
|
Potentiometer colour |
Blue |
|
250V AC / 120V AC |
15 (2) A |
|
Sensor type |
Bimetal |
|
Contact Type |
Snap Action |
|
Lifetime |
> 100.000 |
|
Electrical connection |
2-pole terminal, screw terminals |
|
Plastic material |
UL94 V0 ABS Flame Retardant |
|
Degree of protection |
IP20 |
|
Operating temperature |
-25 / +80 °C |
|
Storage temperature
|
-45 / +80 °C |
|
Installation |
DIN rail 35mm
|
|
Dimensions HxWxD |
61x34x38 mm |
|
Weight |
43g |
