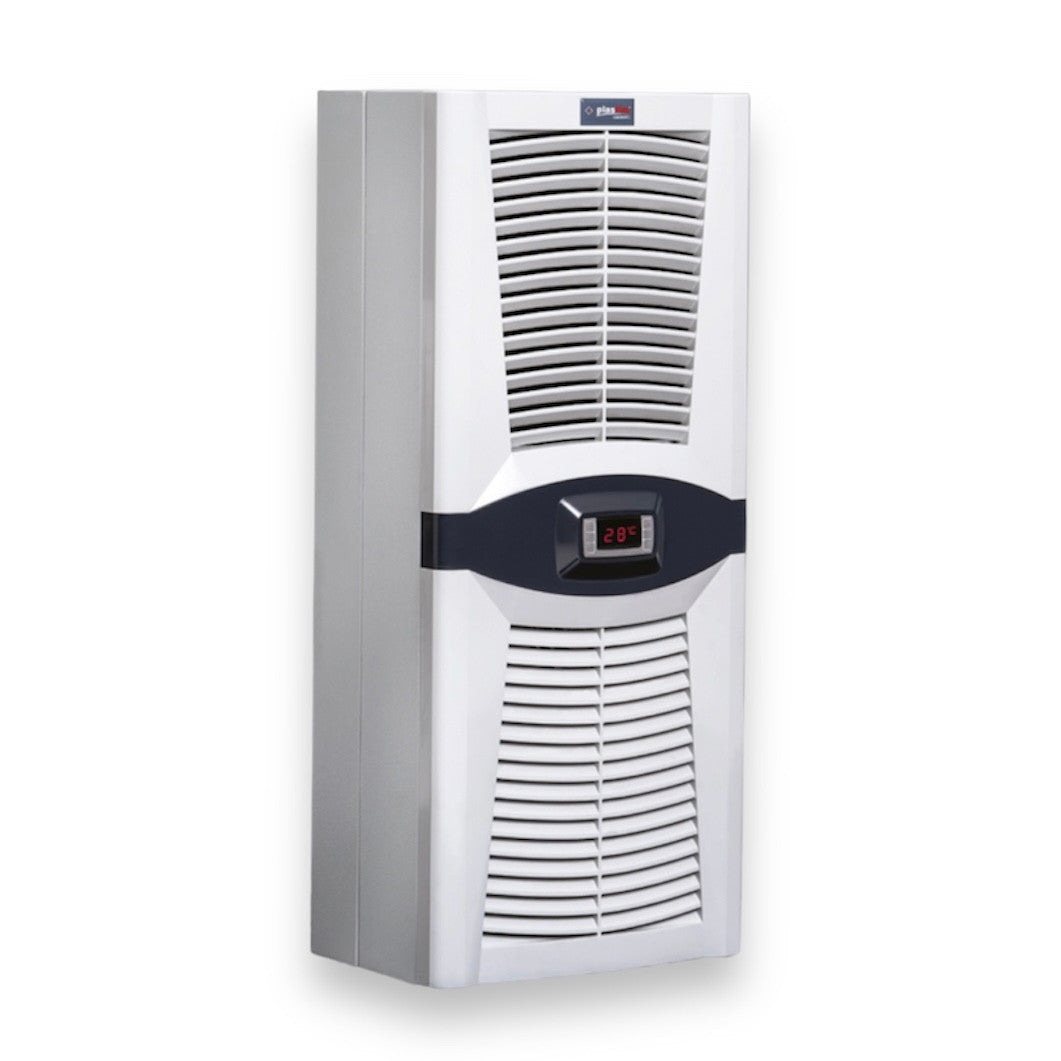

"Design Series" air conditioner for switchboard / chiller 850 Watt / 2990BTU for switchboard and automation board side or wall mount.
The air conditioner for switchboards PAD08500.01 (PLASTIM) is equipped with a modern open type rotary compressor from HIGHLY, a Dixell thermostat, a condensate evaporator and a limit switch to control the opening of the switchboard door.
Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD0850.01 |
| Cooling capacity L35 / L35 | 850W / 2900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 6A |
| Operating current | 1.7A |
| Fuse | 10A |
| Power consumption | 394W |
| Operating range | 0-55 °C |
| Factory thermostat settings | 35 °C |
| Differential | 4 °C |
| Max. air volume of indoor circuit | 340 m³/h |
| Max. air volume of external circuit | 505 m³/h |
| Type of refrigerant | R134a |
| Refrigerant quantity | 290gr |
| Dimensions | 800x345x223mm |
| Weight | 30kg |
| Noise level | 76dB |
| Degree of protection (indoor circuit) | IP 54 |
| Degree of protection (external circuit) | IP 34 |
| Colour | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall mount |
