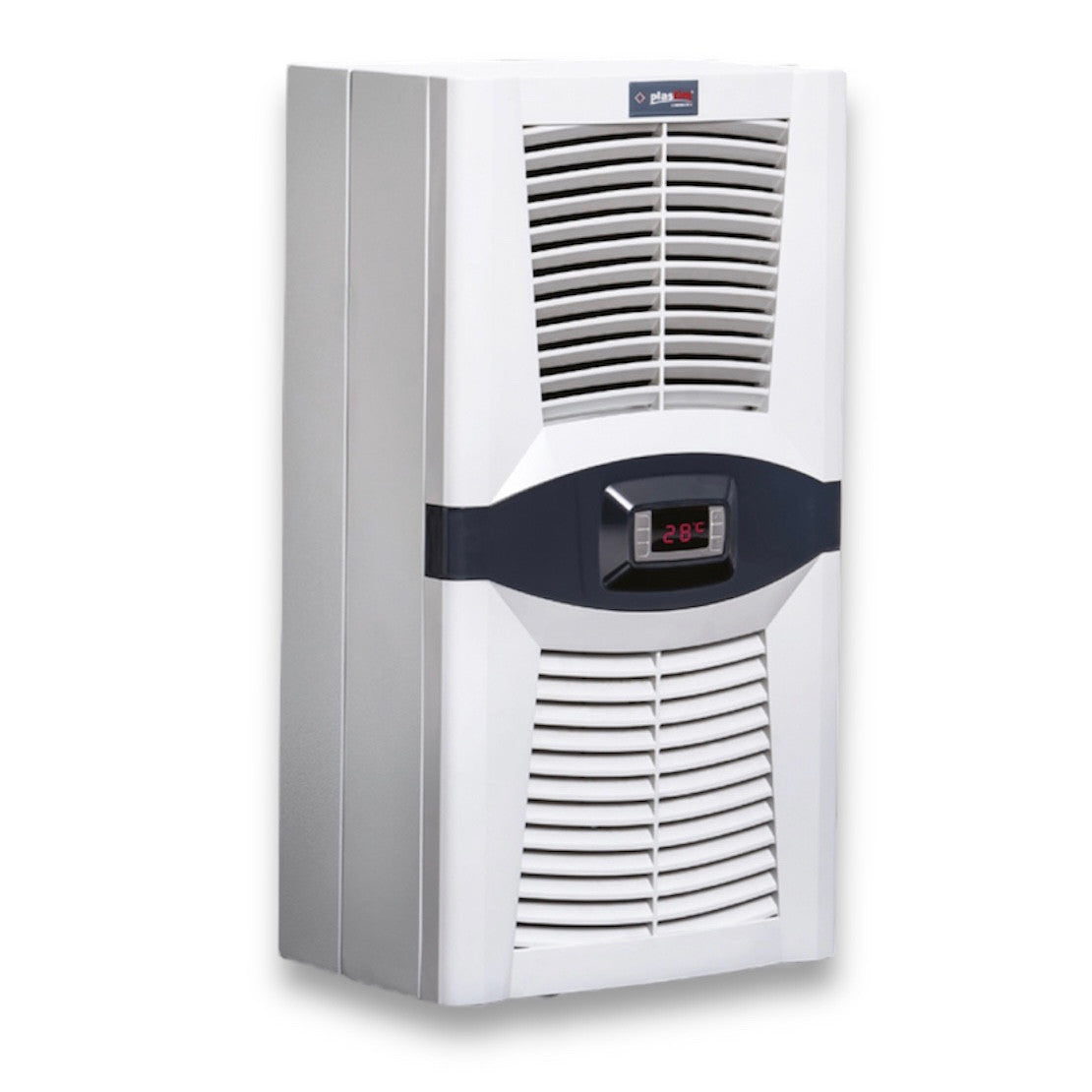

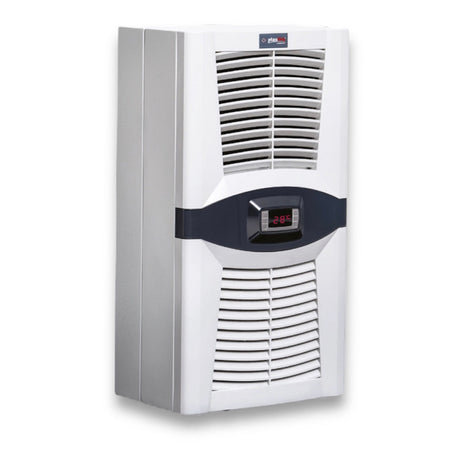

"Design Series" air conditioner for switchboard / cooler 550 Watt / 1900BTU for switchboard and automation board side or wall mounting.
The PAD0550.01 (PLASTIM) air conditioner for switchboards features HIGHLY's state-of-the-art open type rotary compressor, Dixell thermostat, condensate evaporator and limit switch for controlling switchboard door opening.
Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.
| TECHNICAL DATA | PAD0550.01 |
| Operating capacity L35 / L35 | 550W / 1900BTU |
| Operating voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting current | 1.2A |
| Operating current | 1.1A |
| Fuse | 6A |
| Power consumption | 330W |
| Operating range | 0-55 ° |
| Factory thermostat settings | 35 ° |
| Differential | 4 ° |
| Max. air volume of indoor circuit | 340 m³/h |
| Max. air volume of outer circuit | 505 m³/h |
| Refrigerant type | R134a |
| Refrigerant quantity | 245gr |

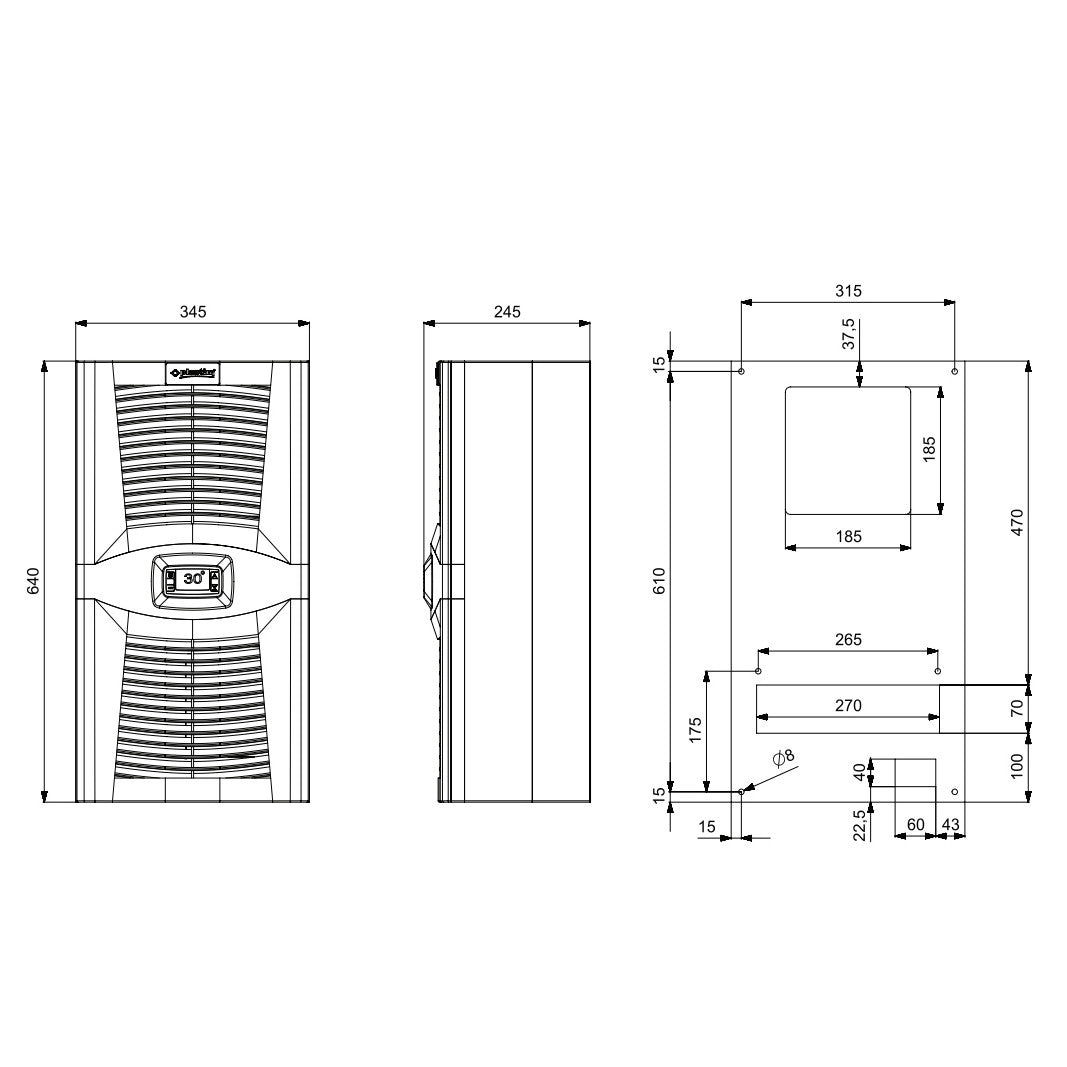

| Dimensions | 640x345x223mm |
| Weight | 27kg |
| Noise level | 76dB |
| Degree of protection (indoor circuit) | IP 54 |
| Degree of protection (external circuit) | IP 34 |
| Colour | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor type | Rotary |
| Fans | EBMPAPST |
| Mounting method | Wall Mount |
