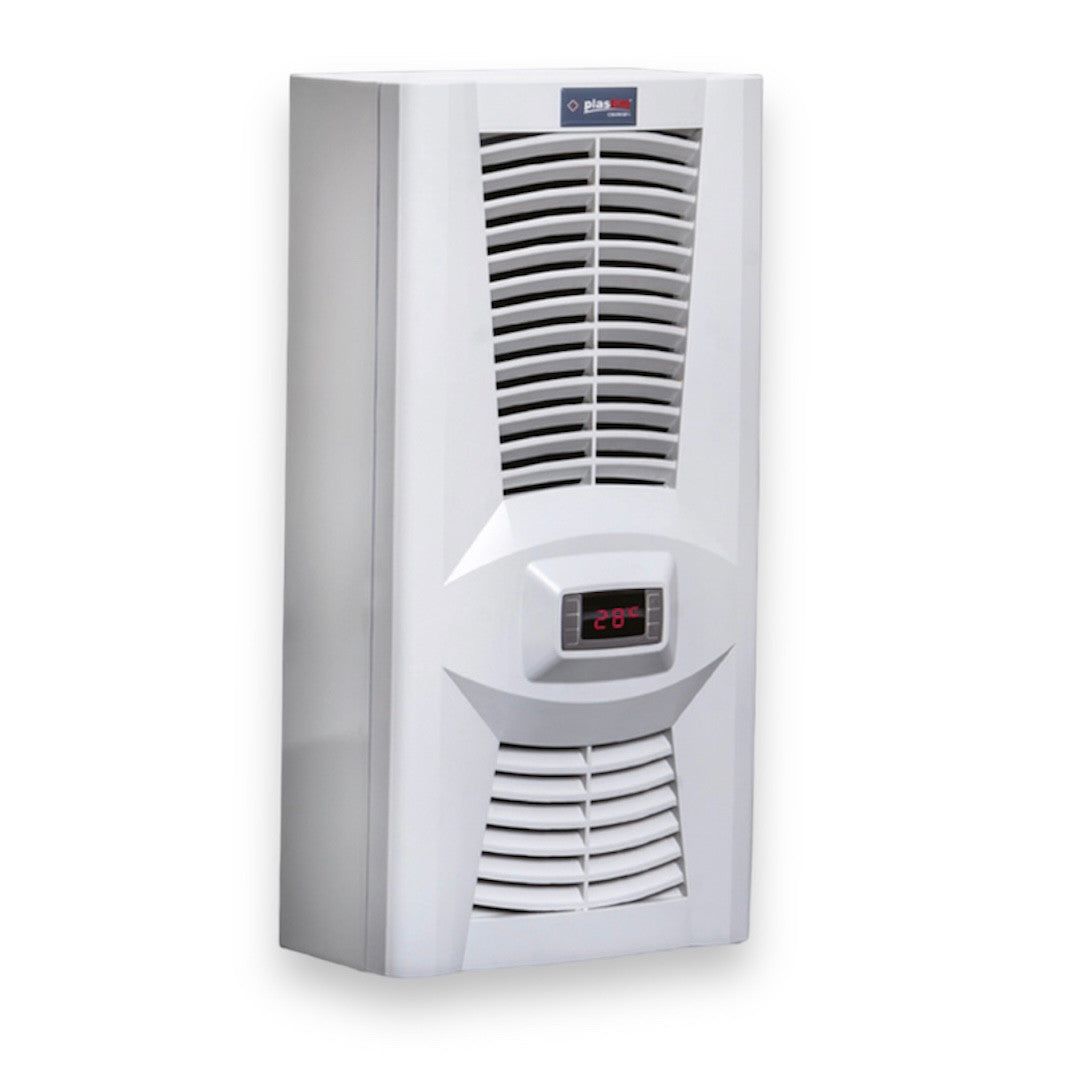

"Design Series" air conditioner for switchboard / chiller 380 Watt / 1300 BTU for switchboard and automation board side or wall mount.
The PAD0380.01 (PLASTIM) air conditioner for switchboards features HIGHLY's state-of-the-art open type rotary compressor, Dixell thermostat, condensate evaporator and limit switch for controlling switchboard door opening.
Everything needed to install the air conditioning for the cabinet is included - gaskets, waste pipe, mounting screws, power connector.
| TECHNICAL DETAILS | PAD0380.01 |
| Cooling Capacity L35 / L35 | 380W / 1300BTU |
| Operating Voltage | 230VAC |
| Frequency | 50/60 Hz |
| Starting Current | 3.7A |
| Operating Current | 1.1A |
| Fuse | 5A |
| Power Consumption | 325W |
| Operational Range | 0-55 °C |
| Thermostat Factory Setting | 35 °C |
| Differential | 4 °C |
| Max. Air Volume Internal Circuit | 340 m³/h |
| Max. Air Volume External Circuit | 340 m³/h |
| Type of Refrigerant | R134a |
| Amount of Refrigerant | 120gr |
| Dimensions | 560x285x150mm |
| Weight | 15kg |
| Sound Level | 75dB |
| Protection Degree (Internal Circuit) | IP 54 |
| Protection Degree (External Circuit) | IP 34 |
| Color | RAL7035 |
| Compressor | HIGHLY/HITACHI |
| Compressor Type | Rotary |
| Fans | EBMPAPST |
| Mounting Method | Wall Mount |
