3-phase panel-mounted RS485 voltage-frequency-power-energy-current multimeter
- Regular price
- €98,00
- Regular price
-
- Sale price
- €98,00
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

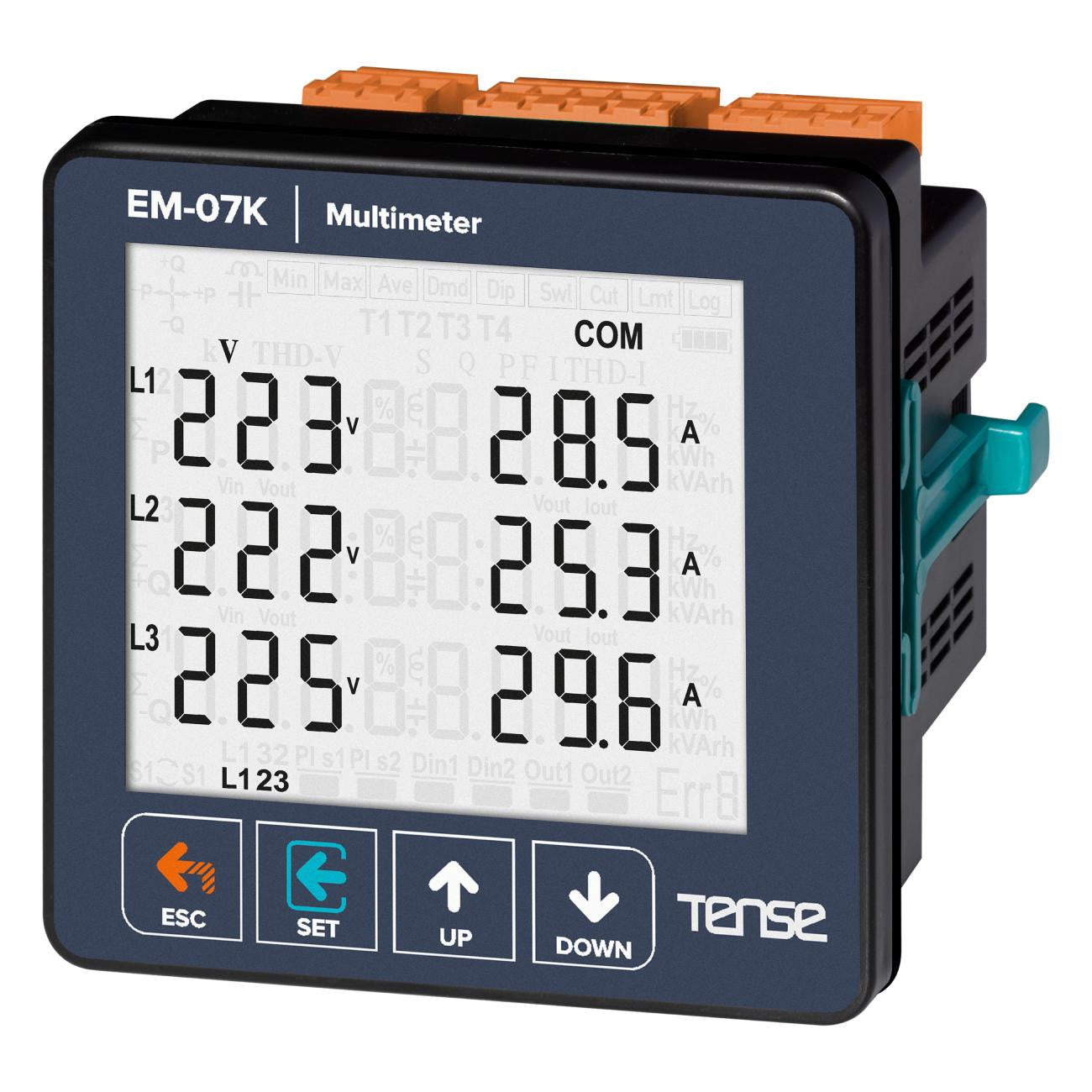

Three-phase multimeter - 3-phase multifunction digital panel meter, current, voltage, frequency and total power indicator, energy kW*h and ModBus RTU manufacturer TENSE (Turkey), panel meters.
Main advantages:
- RS485 Modbus RTU (1200-38400bps)
- 71.5 x 61.5 custom glass LCD design

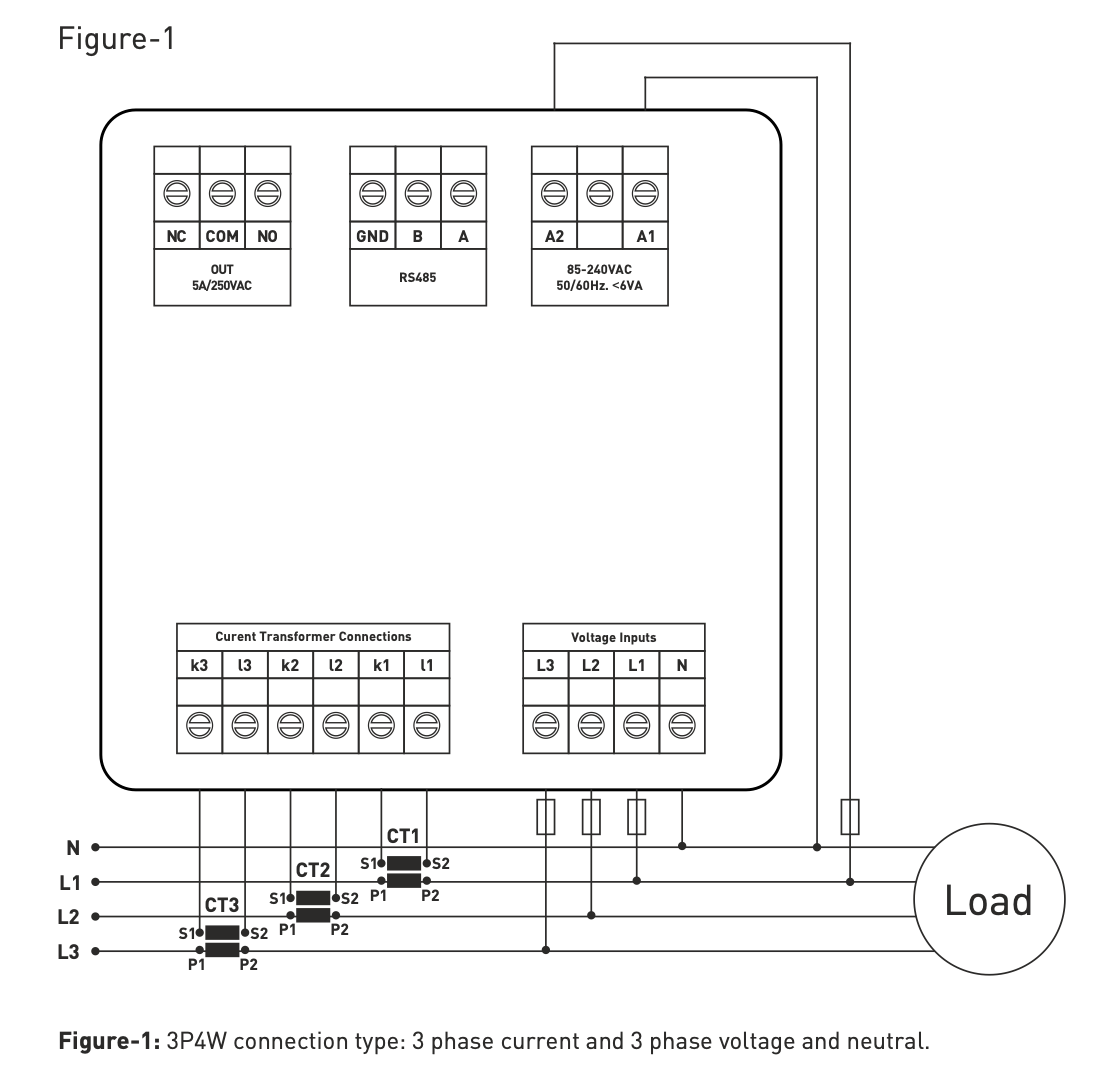

- 3-phase voltage transformer and 3-phase current transformer.
- Shows V1, V2, V3, V12, V23, V31, I1, I2, I3, S1, S2, S3, F1, F2, F3
- Shows the minimum, maximum and average values of V1,V2,V3,V12,V23,V31,F1,F2,F3
- Displays minimum, maximum, average and setpoints I1,I2,I3,S1,S2,S3 High/low voltage, current, frequency (adjustable) Phase-neutral or phase-phase protection (adjustable)
- Energy Meter / Power Meter
- Protect voltage, current and frequency
- Displays phase sequence
- You can delete requirements
- Menu is password protected.
Usually this multimeter is used with current measuring transformers - 60/5 75/5 100/5 150/5 200/5 250/5 300/5 400/5 500/5 600/5 800/5 1000/5 1500/5 or similar. You can buy such transformers in our e-shop,
