Vendor: TENSE

3-Phase Digital Panel Meters Current Multimeter Voltage Frequency Indicator

Barcode: EM-100D
€67,67 €55,02 excl. VAT
€67,67 €55,02 excl. VAT
Low stock: 7 left
All items are in stock and shipped from the Czech Republic. Delivery takes 3–8 days.
Mark: 100A
  • Description
  • Manuals
  • Payment methods
  • Warranty

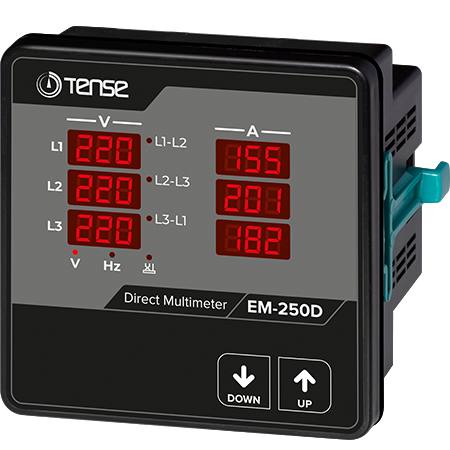

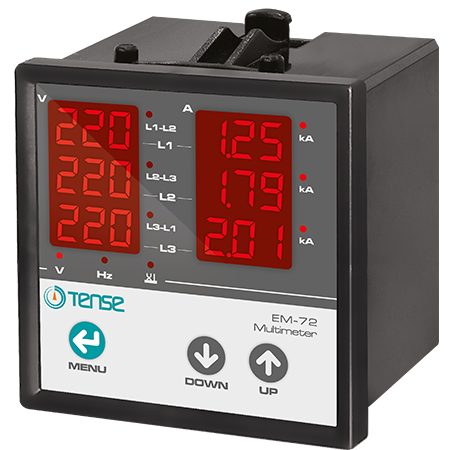

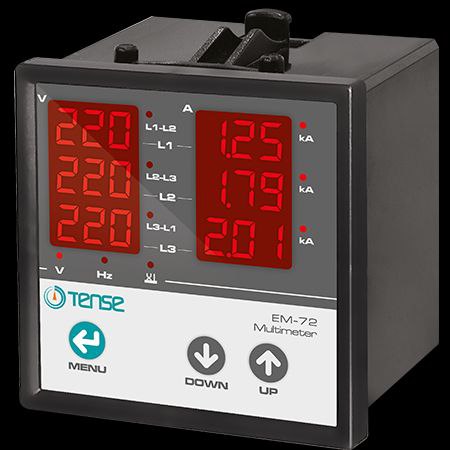

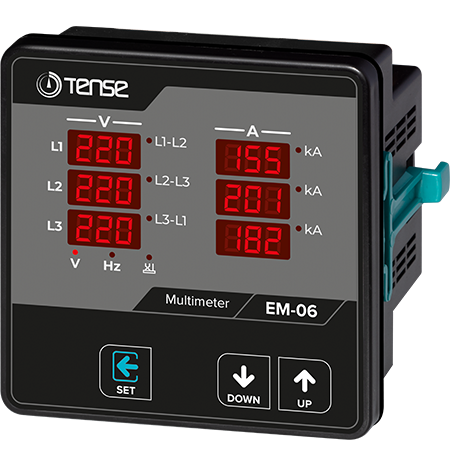

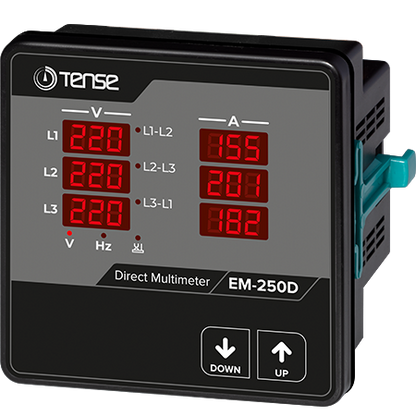

TENSE 3-phase panel multimeter - VAHz

Description

The TENSE digital 3-phase panel multimeter is a multifunctional meter for monitoring electrical parameters in 3-phase systems. The instrument allows to measure voltage, current and frequency, to check the correct connection of phases and is suitable for industrial equipment, machines and AC power distribution systems.

Main advantages

  • Multifunctional measurement: I, U (L-L, L-N), Hz

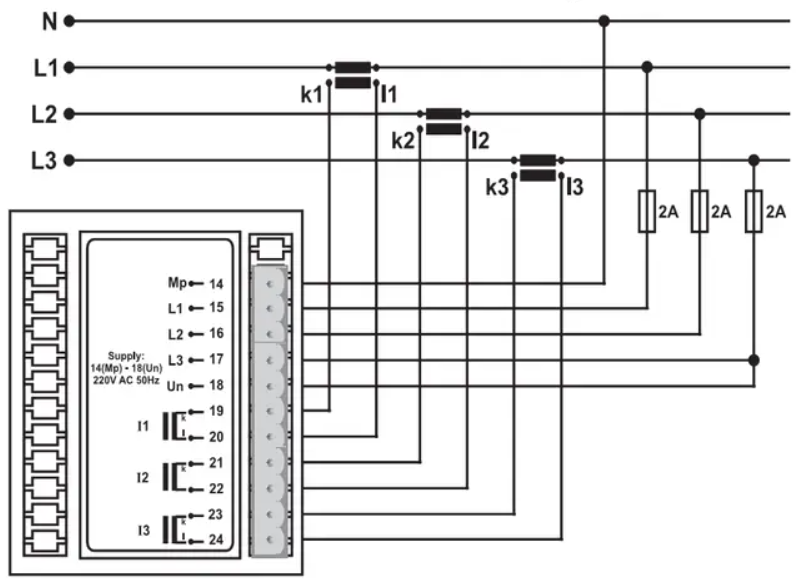

  • Indirect measurement of current through connected current transformers

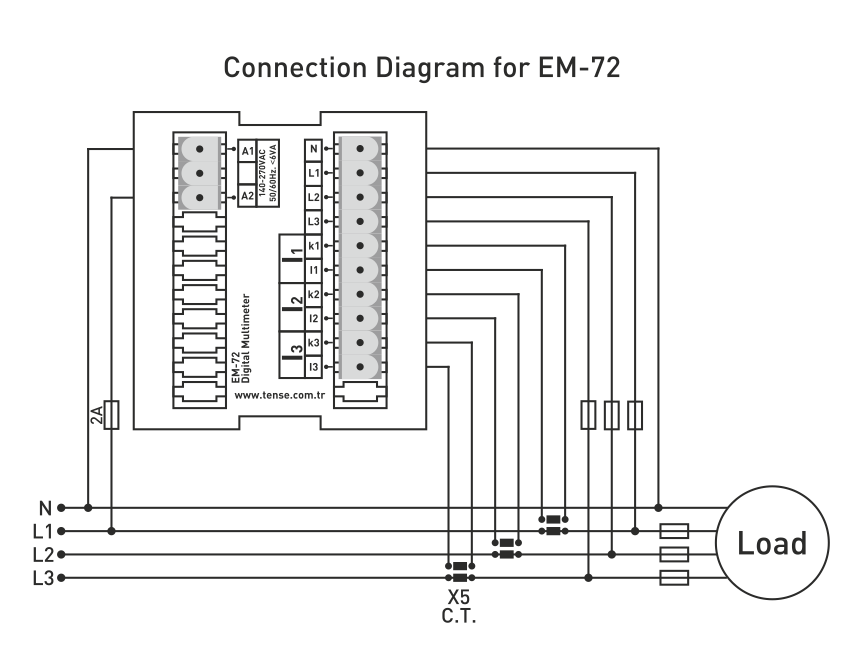

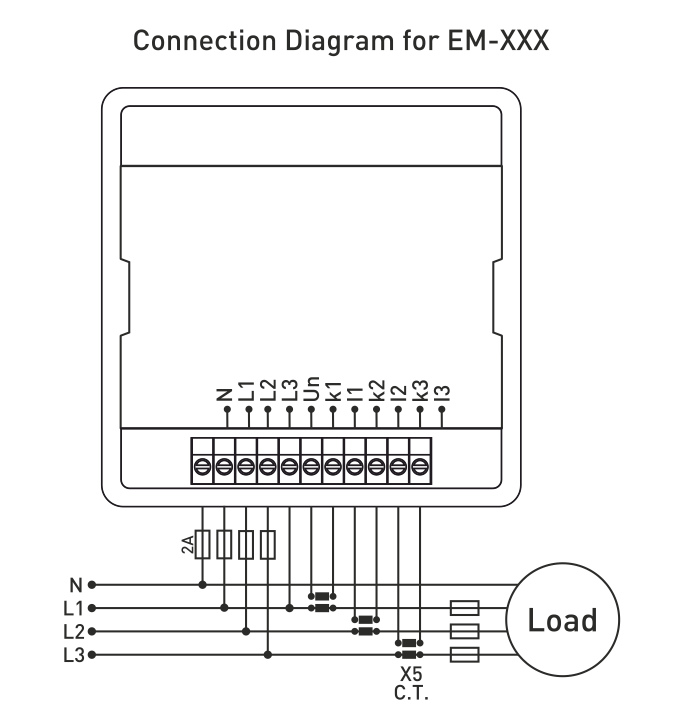

  • Phase monitoring and wiring check

  • Included measuring transformer on EM-100D and EM-250D models

  • Mounting on standard DIN rail

Measurement ranges

ParameterModels EM-06 / EM-72EM-100DEM-250D
Current5/5 ... 9995/5 A (indirect)1 - 100 A2 - 250 A
Voltage L-N1 - 300 V AC1 - 300 V AC1 - 300 V AC
Voltage L-L1 - 500 V AC1 - 500 V AC1 - 500 V AC
Frequency40 - 60 Hz40 - 60 Hz40 - 60 Hz

Recommendations

  • For EM-06 and EM-72 models, we recommend the following current transformers:
    60/5, 75/5, 100/5, 150/5, 200/5, 250/5, 300/5, 400/5, 500/5, 600/5, 800/5, 1000/5, 1500/5

  • The transformers can be purchased directly in our e-shop.
