12 level reactive power controller with LED screen
- Regular price
- €168,84
- Regular price
-
- Sale price
- €168,84
- Unit price
- per
Couldn't load pickup availability
Notified by email when this product becomes available
Pre-order product
- Description
- Manuals
- Payment methods
- Warranty

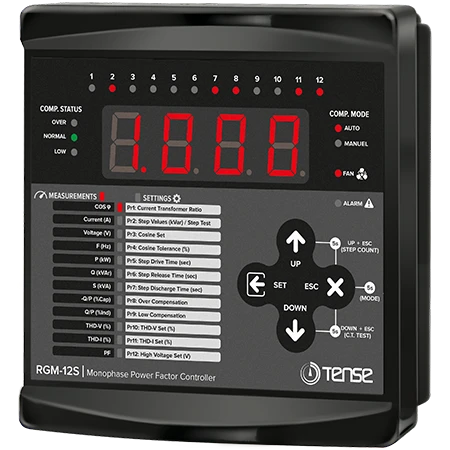

12 steps Single-phase connection Power factor controller for power factor control in networks with symmetrical loads (TENSE)
The RGM-12S reactive power control relay is designed to reduce inductive powers that do not use loads but are drawn from the grid. When inductive reactive power is drawn from the grid, it intervenes by activating the capacitors of the appropriate value. In this way, it tries to get the Cos fi value to the desired level.
7 Different power factor compensation programs
Manual power factor compensation programs
Can only compensate inductive systems
Automatic step measurement
Step drive, release and discharge times are adjustable
Harmonic alarm values of voltage and current adjustable
Over and under compensation alarm values can be set
Voltage, harmonic voltage/current, over and under compensation alarm output
Voltage, current and frequency values can be monitored
Active power, reactive power and apparent power values can be monitored
Up to 15th harmonic THD-I can be monitored
Up to 15th harmonic THD-V can be monitored
Cosine value can be monitored
Power factor value can be monitored
Automatic fan output
Equal aging in steps (in some compensation programs)
